LTS110BMH Package: EMSOP-10 Converter/level Shifter Integrated With Original Stock

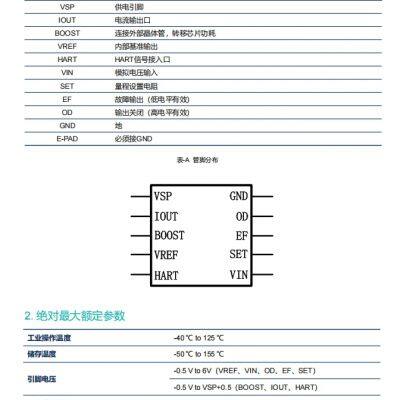

describe

LTS110 is a V/I converter that can linearly convert analog voltage into 0-20mA/4-20mA; Users can set the desired output range through an external Rset; External power transfer can be achieved through a transistor; LDO is the internal reference output, with a default output of 2.5V; Simplify V/I conversion design.


characteristic

◼ The output range can be adjusted through Rset and peripherals, such as generating 0-20mA/4-20mA/0-25mA/current output

◼ Rset current setting formula: Imax=10 * Vinmax/Rset (Vin is an analog input, Vinmax=5V）

◼ INL：0.05% tpy

◼ Output error: 0.1% tpy

◼ IOUT voltage coefficient: 0.03% of SPAN tpy（ 8-36V@20mA ）

◼ IOUT load factor: 0.005% of SPAN tpy（ 0-800R@20mA @24V）

◼ Single power supply: 8V-36V

◼ Output fault alarm (EF)

◼ Support output shutdown (OD)

◼ LDO output: 2.5V

◼ LDO temperature coefficient:<20ppm

◼ Static working current:<500uA

◼ Start time:<500us

◼ Encapsulation: MSOP10-EPAD

◼ Working temperature:- 40℃ to 125℃

application

◼ Instrument transmitter

◼ Industrial analog signal isolation

◼ Industrial controller

◼ PLC output driver
