describe

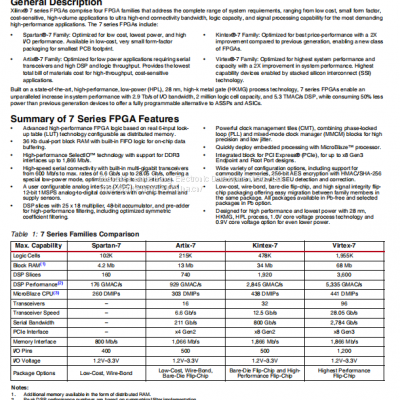

Xilinx ® 7 Series FPGAs includes four FPGA series to meet the complete system requirements, from low-cost, small shape, cost sensitive and high-capacity applications to the highest connection bandwidth, logic capacity and signal processing capacity. Seven series of FPGA include:

•Spartan ®- 7 Series: optimized for low cost, low power consumption and high performance

I / O performance. The price is low and the overall size is very small

Minimum PCB package.

•Artix ®- 7 Series: optimized for low power applications requiring serial communication

Transceiver and high DSP and logic throughput. Provide minimum

High throughput bill of materials, total cost, cost sensitive

Application.

•Kintex ®- 7 Series: pass 2x

Compared with the previous generation, it has improved and implemented a new class, which is FPGA.

•Virtex ®- 7 Series: for the highest system performance and

The system performance is improved by twice the capacity. highest

High performance devices via stacked silicon interconnect (SSI)

technology

Based on the most advanced, high-performance, low-power (HPL), 28nm, high-k metal gate (HKMG) process technology, 7 Series FPGAs enables unparalleled improvement of system performance with 2.9tb/si/o bandwidth, 2 million logic unit capacity, and 5.3tmac/sdsp. At the same time, it consumes more power than the previous generation equipment, providing a fully programmable alternative to ASSPS and ASIC.

Characteristics

• advanced high-performance FPGA logic based on real 6 input look-up table (LUT) technology that can be configured as distributed memory.

• 36 KB dual port block RAM with built-in FIFO logic for on-chip data buffer.

• High Performance Options ™ Technology supporting DDR3

Interface up to 1866 MB / s.

• high speed serial connection with built-in 10 Gigabit transceiver

From 600 MB / s to up to 6.6 GB / s to 28.05 GB / s, provides

The special low-power mode is optimized for the interface between chips.

• a user configurable analog interface (xadc) with dual

12 bit 1msps analog-to-digital converter with on-chip thermal and

Supply sensor.

• DSP chip with 25 x 18 multiplier, 48 bit accumulator and pre adder

For high-performance filtering, including optimized symmetric coefficient filtering.

• powerful clock management block (CMT) combined with phase locking

Loop (PLL) and mixed mode clock manager (MMCM) modules are used for high performance

Precision and low jitter.

• rapid deployment of embedded processing with MicroBlaze ™ processor

• for PCI Express ® (PCIe) for up to X8 gen3

Endpoint and root port design.

• multiple configuration options, including

Memory with 256 bit encryption, hma-sha

Authentication, and built-in SEU detection and correction.

• low cost, wire bonding, bare chip flip chip and high signal integrity flip chip packaging to facilitate migration between family members

The same package. All packages are lead-free and optional

Package in Pb option.

• designed for 28 nm high performance and minimum power consumption,

HKMG, HPL process, 1.0V core voltage process technology and 0.9V core voltage option, lower power.
