Home > Industrial Equipment & Components > Power Transmission Parts > Shaft Coupling > DI GGG50 Pipe Coupling Gibault Joint For PVC or AC Pipes
US$ 25.00 - 65.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
ISO2531 Hot Sale Ductile Iron Body Flexible Couplings Gibault Joint For PVC PipeUS$ 25.00 - 65.00MOQ: 50 Pieces -
Ductile Iron Gibault Joint for PVC Pipe Gibault With O Type RingUS$ 25.00 - 65.00MOQ: 50 Pieces
-
ISO2531 EN545 Ductile Iron Cast Iron Gibault Joint for PVC Pipe and Steel PipeUS$ 25.00 - 65.00MOQ: 50 Pieces
-
DI Coupling Cast Iron or Ductile Iron Gibault JointUS$ 25.00 - 65.00MOQ: 50 Pieces
-
Repair PVC PE Pipe Gibault Joint With O Ring and Flat GasketUS$ 25.00 - 65.00MOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
Gibault joints
This joints are a coupling designed to provide an efficient and economical mechanical joint for white PVC and AC sized pipes.
The Standard Gibault joint is designed to join/repair pipeline materials and fittings that are relatively inert, ie. Ductile Iron, Cast Grey Iron, Asbestos Cement. The sleeve length of the Standard Gibault joint sleeve is relative to the material it has been designed to join. When joining/repairing pipelines of different material it is strongly recommended that an Elongated or SWB Gibault joint be utilised.
Feautures:
Ductile iron with FBE coated.
PN10, PN16 Working pressure.
Equipped with galvanized steel bolts ,nuts
Otype EPDM or NBR rubber seals
Size :63-315MM
| Dimensions(mm) | |||||
| Item No. | Size | Bolt | A | H | |
| L | QTY | mm | mm | ||
| 1 | 63 | 160 | 2 | 125 | 147 |
| 2 | 75 | 160 | 2 | 125 | 147 |
| 3 | 90 | 160 | 3 | 125 | 165 |
| 4 | 110 | 180 | 3 | 145 | 185 |
| 5 | 125 | 180 | 3 | 145 | 200 |
| 6 | 140 | 180 | 4 | 145 | 215 |
| 7 | 160 | 220 | 4 | 185 | 236 |
| 8 | 180 | 220 | 4 | 185 | 255 |
| 9 | 200 | 220 | 4 | 185 | 276 |
| 10 | 225 | 230 | 6 | 185 | 285 |
| 11 | 250 | 230 | 6 | 185 | 340 |
| 12 | 280 | 230 | 6 | 185 | 345 |
| 13 | 315 | 230 | 6 | 185 | 352 |

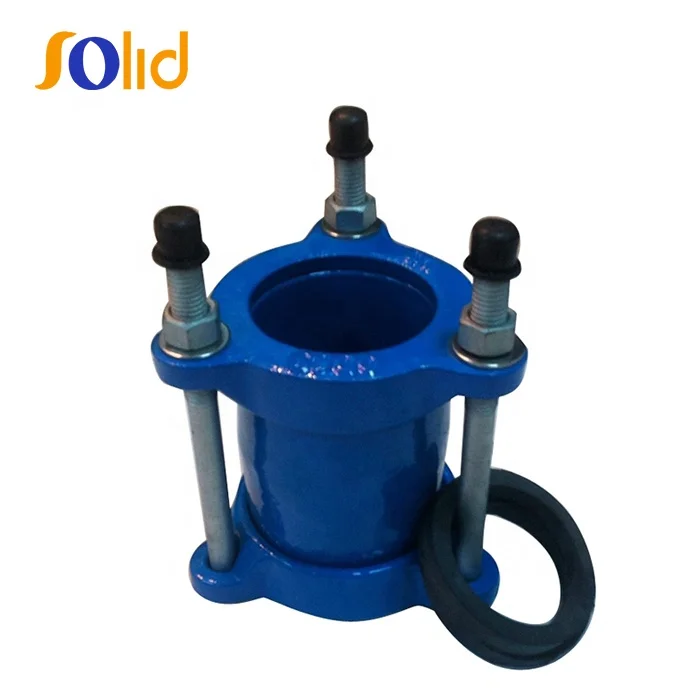

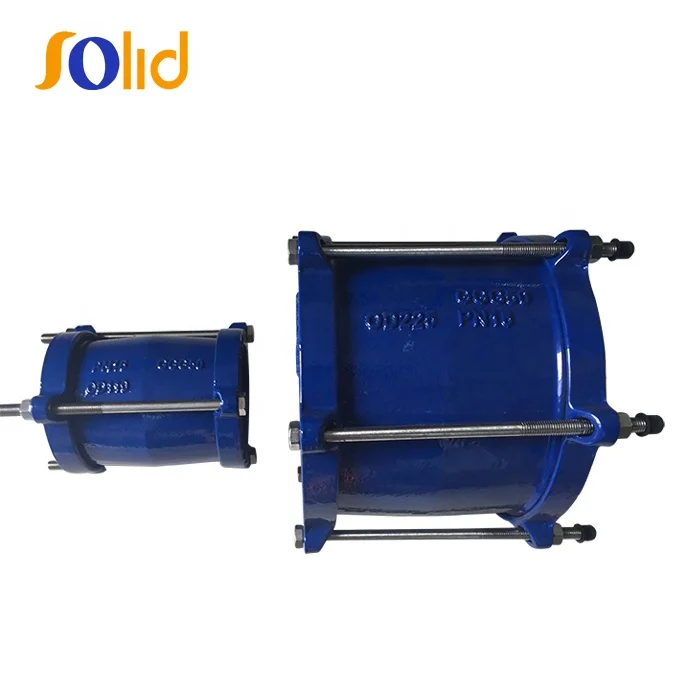

Detailed Images
