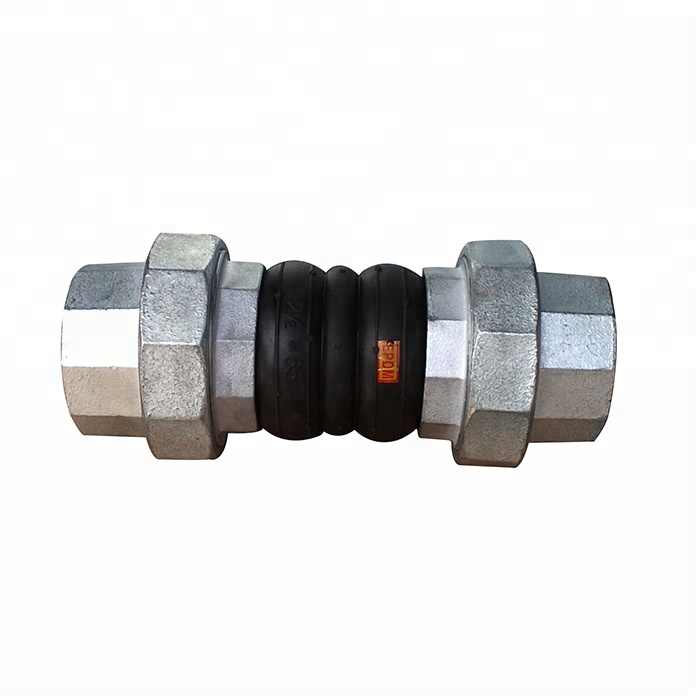

Industrial Pipe DN65 Flexible Bellows Screwed Union Double Sphere Steam Rubber Expansion Joint
US$ 25.00 - 65.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
solid
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
Floating Flange Flexible Double Sphere Rubber Expansion JointUS$ 25.00 - 65.00MOQ: 50 Pieces -
Factory Price Double Flange Stainless Steel Corrugated Metallic Bellows Expansion JointUS$ 25.00 - 65.00MOQ: 50 Pieces
-
Forged Monolithic Insulated Isolation Joint For Gas Oil Water PipelineUS$ 25.00 - 65.00MOQ: 50 Pieces
-
Cast Iron Gibault Joint for PVC PipeUS$ 25.00 - 65.00MOQ: 50 Pieces
-
DI GGG50 Pipe Coupling Gibault Joint For PVC or AC PipesUS$ 25.00 - 65.00MOQ: 50 Pieces
Brand Name
solid
Place of Origin
China
Product Description
Rubber expansion joints consist of inner and outer rubber, cord layer and traveler, which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints. This product can
reduce vibration and noise, and compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.
Main joint dimension
| Size | Inch | Length | Extension | Compression | Horizontal |
| DN20 | 3/4" | 200 | 5-6 | 22 | 22 |
| DN25 | 1" | 200 | 5-6 | 22 | 22 |
| DN32 | 1 1/4" | 200 | 5-6 | 22 | 22 |
| DN40 | 1 1/2" | 200 | 5-6 | 22 | 22 |
| DN50 | 2" | 200 | 5-6 | 22 | 22 |
| DN65 | 2 1/2" | 265 | 8-10 | 24 | 24 |
| DN80 | 3" | 285 | 8-10 | 24 | 24 |
Features
1. The flexible rubber expansion joint is of small volume, light weight, good flexibility and convenient installation and maintenance ;

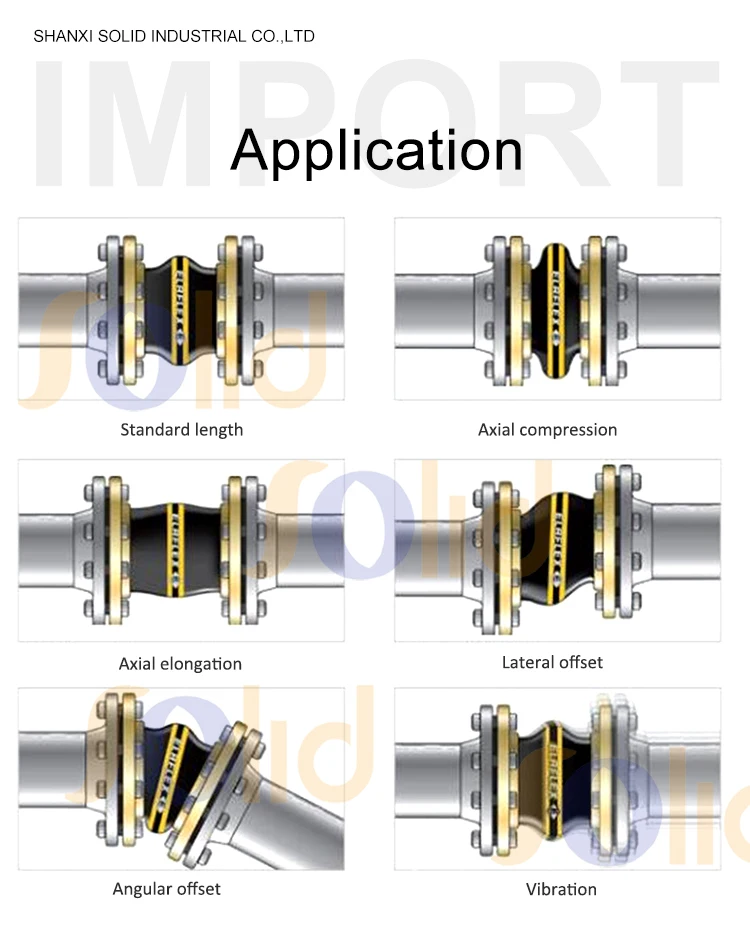

2. The flexible rubber expansion joint has transverse displacement, axial displacement and angular displacement and not restricted by inconsistent pipeline and unparallel flange in installation;
3. The flexible rubber expansion joint reduces vibration and noise;
4. The flexible rubber expansion joint with seamless inside and resistance to high temperature which is developed by our company can prevent the corrosive medium from corroding the inner wall more efficiently in the pipeline of high temperature resistance, acid and alkali resistance and oil resistance.

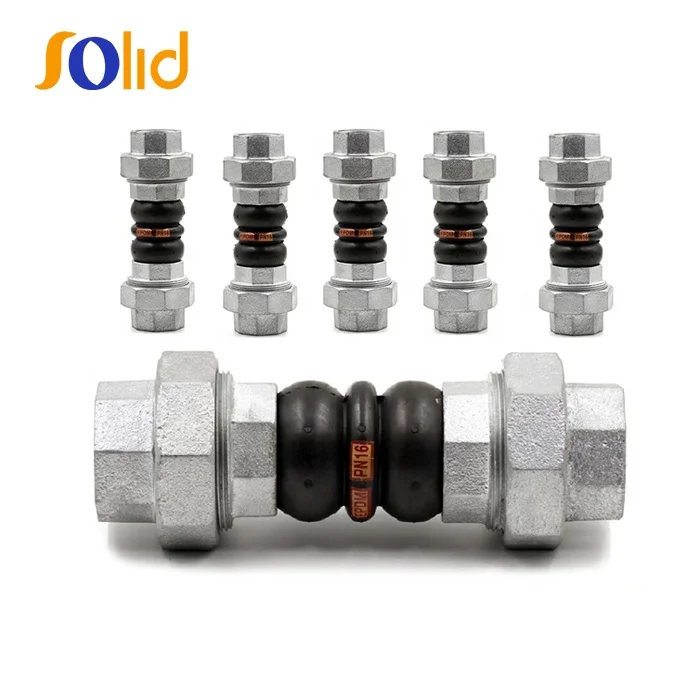

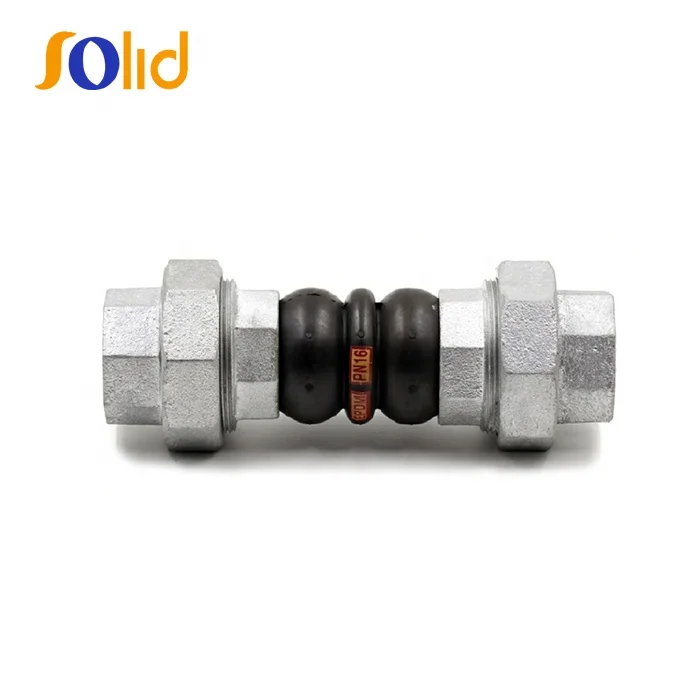

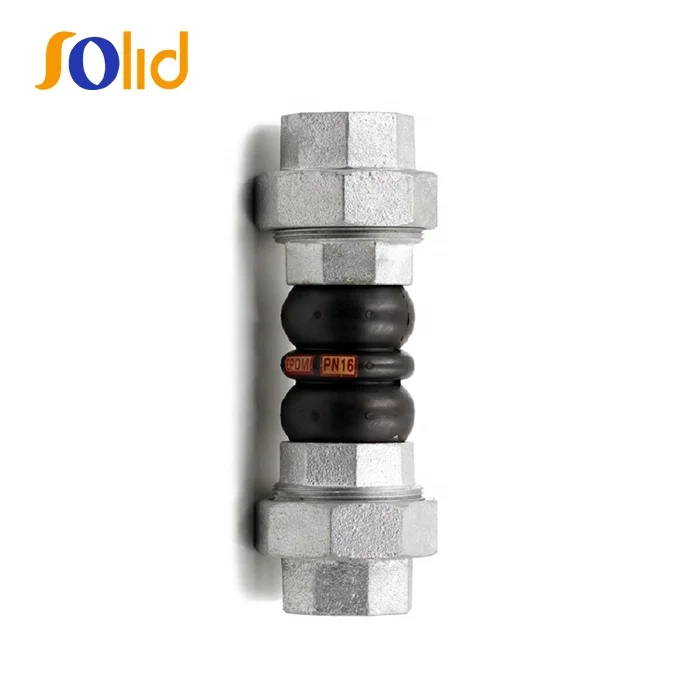

Detailed Images
