Home > Products > Coupling > Ductile Iron Epoxy Coating Wide Range Universal Coupling Joint For DI Pipe

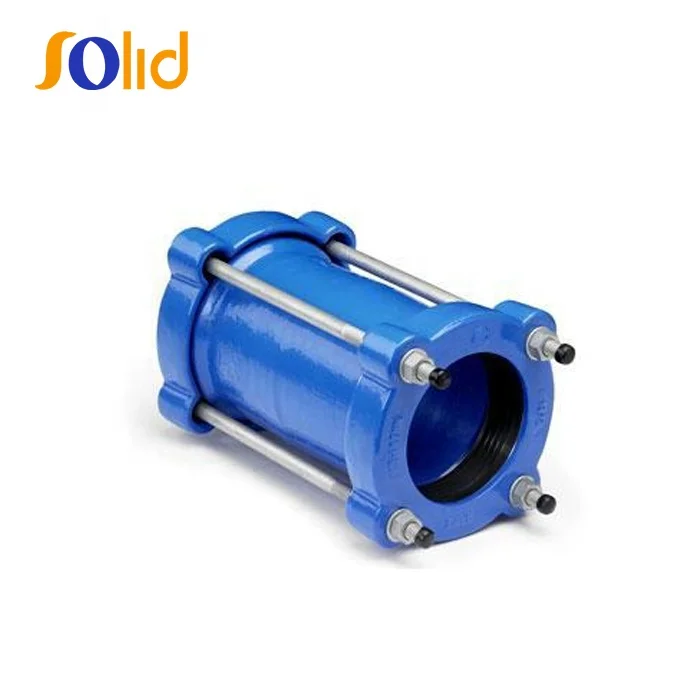

Ductile Iron Epoxy Coating Wide Range Universal Coupling Joint For DI Pipe
US$ 24.78 - 34.58
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Ductile Iron Flexible Joint Wide Range Universal Flexible Coupling For PVC , DI , Steel Pipe
-
Ductile Iron Wide Big Range Dedicated Flexible Flange Adaptor Coupling
-
FBE coated Ductile Iorn Wide Range Universal Couplings and Flange Adaptor
-
Epoxy Powder Coating Ductile Iron Flexible Flange Adaptor and Dresser Coupling for HDPE Pipe
-
Ductile Iron Quick Flange Adaptor Coupling for PVC /PE Pipe with Brass Ring
-
Ductile Iron Wide Range 4'' Flexible Joint Universal Coupling For Steel DI CI PE PVC Pipe
Product Details
| Brand Name | solid | Place of Origin | China |
Product Description
Product Description
Nominal Pressure: PN10, PN16
Refer Standard: ISO2531, BS EN545
Parts name & Material:
Sleeve / End Ring: Ductile Iron
Gasket: EPDM / SBR / NBR
Bolt & Nut & Washer: Electro Galvanized Carbon Steel Grade 4.8
DN(mm) | PIPE OD | Overall Length (mm) | D-Circle(mm) | End Ring Bolt no. |
40 | 56 | 166 | 120 | 2-M12x158 |
50 | 66 | 166 | 126 | 2-M12x158 |
60 | 77 | 166 | 135 | 2-M12x158 |
65 | 82 | 166 | 156 | 2-M12x158 |
80 |
Detailed Images
