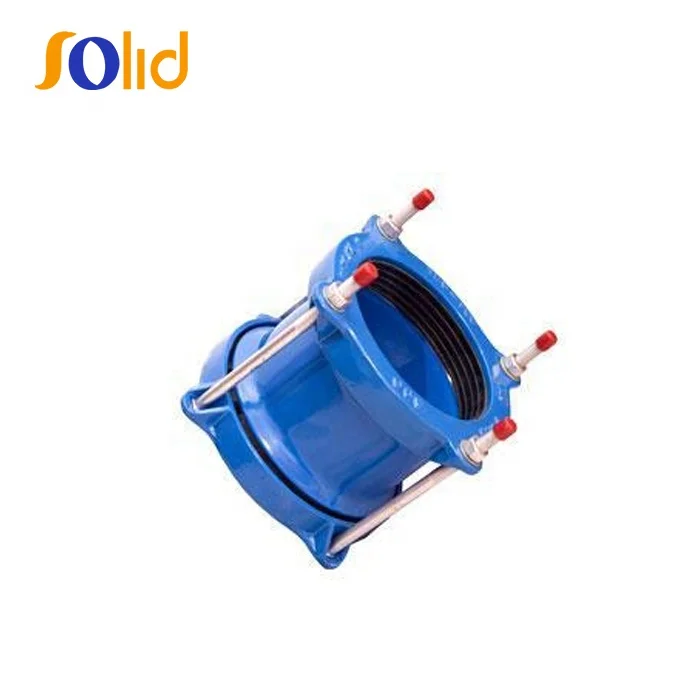

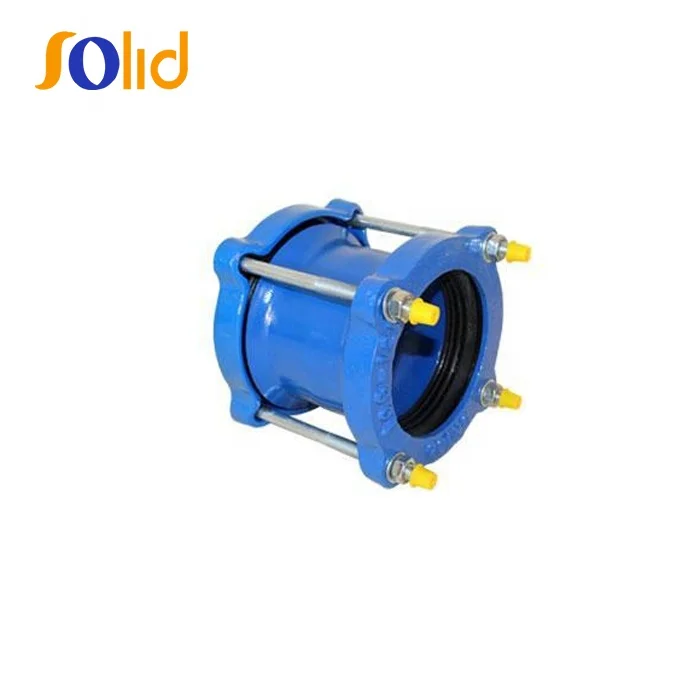

Ductile Iron Flexible Joint Wide Range Universal Flexible Coupling For PVC , DI , Steel Pipe
US$ 24.78 - 34.58
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
solid
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
Ductile Iron Wide Big Range Dedicated Flexible Flange Adaptor CouplingUS$ 24.78 - 34.58MOQ: 50 Pieces -
FBE Coated Ductile Iorn Wide Range Universal Couplings and Flange AdaptorUS$ 24.78 - 34.58MOQ: 50 Pieces
-
Epoxy Powder Coating Ductile Iron Flexible Flange Adaptor and Dresser Coupling for HDPE PipeUS$ 24.78 - 34.58MOQ: 50 Pieces
-
Ductile Iron Wide Range 4'' Flexible Joint Universal Coupling For Steel DI CI PE PVC PipeUS$ 6.50 - 35.00MOQ: 50 Pieces
-
SOLID Ductile Iron Wide Range Self-Locking Restrained CouplingUS$ 6.50 - 35.00MOQ: 50 Pieces
Brand Name
solid
Place of Origin
China
Product Description
Nominal Pressure: PN10, PN16
Flange drilling: EN1092-2:1997, DIN2501, ISO7005-2
Parts name & Material:
Sleeve / End Ring: Ductile Iron
Gasket: EPDM / SBR / NBR
Bolt & Nut & Washer: Electro Galvanized Carbon Steel Grade 4.8
DN(mm) | OD Range(mm) | Length(mm) | D(Circle-mm) | Bolt no. |
40 | 48 - 60 | 170 | 165 | 4-14 |
50 | 59 - 72 | 170 | 180 | 4-14 |
65 | 72 - 85 | 190 | 180 | 4-14 |
80 | 88 - 103 | 190 | 190 | 4-14 |
100 |
