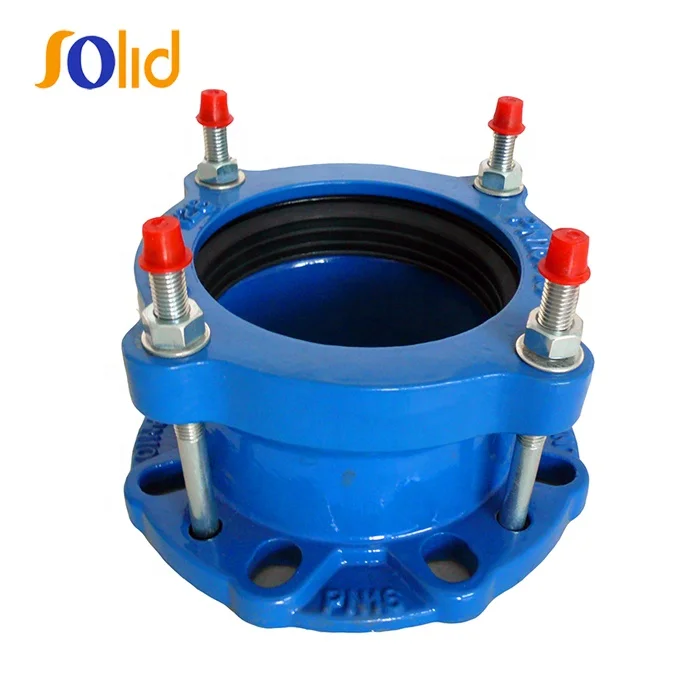

FBE Coated Ductile Iorn Wide Range Universal Couplings and Flange Adaptor
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Epoxy Powder Coating Ductile Iron Flexible Flange Adaptor and Dresser Coupling for HDPE Pipe
-
Ductile Iron Quick Flange Adaptor Coupling for PVC /PE Pipe With Brass Ring
-
Ductile Iron Wide Range 4'' Flexible Joint Universal Coupling For Steel DI CI PE PVC Pipe
-
PVC/PE/DI Pipe OD 50mm Ductile Iron Quick Flange Adaptor With PN10/16
-
SOLID Ductile Iron Wide Range Self-Locking Restrained Coupling
-
China Factory Epoxy Coating Ductile Iron Wide Range Self-Locking Universal Coupling
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
The Universal Couplings are designed for pipelines , As a wide tolerance system it will fit most standard pipe materials and therefore dramatically reduces the number of dedicated Couplings which need to be stocked for maintenance purposes , It is suitable for steel , GRP, PVC, PE, Ductile Iron , Cast Iron and Asbestors Cement . When connecting PE pipes , It is important that pipe inserts are fitted to the PE pipes .
1) All the couplings are assembled by " D " bolts .
2)Bolts ,Nuts and Washers are in carbon steel Grade 4.8 , 8.8 with zinc plated , dacromet coating or according to customer's request.
3) Body material is Ductile iron GGG500-7 .
4) Fusion bonded epoxy powder coating in blue, black or red or according to customer's request .
5)Gaskets material : E.P.D.M. , NBR or SBR .
Specification | Unit Weight | Sealing Ranges(mm) | |
inches | mm | kgs | |
2" | 50 | 3.6 | 59~73 |
2 1/2" | 65 | 4.50 | 72~85 |
3" | 80 | 4.83 | 88~103 |
4" | 100 | 5.51 | 108~128 |
5" | 125 | 7.74 | 132~154 |
6" | 150 | 8.32 | 159~182 |
7" | 175 | 11.30 | 192~209 |
8" | 200 | 9.95 | 218~235 |
10" | 250 | 14.50 | 271~289 |
12" | 300 | 18.62 | 322~340 |
14" | 350 | 26.00 | 374~391 |
16" | 400 | 28.85 | 417~437 |
18" | 450 | 33.40 | 480~500 |
20" | 500 | 50.00 | 526~546 |
24" | 600 | 54.10 | 630~650 |
