Home > Products > Coupling > ISO2531,EN545 Ductile Iron DI Restrained Flange Adaptors Coupling for PE Pipe

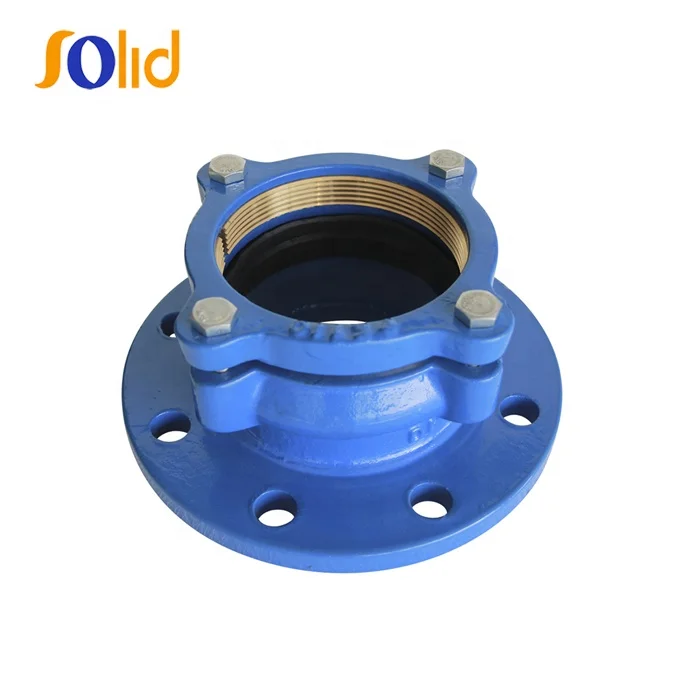

ISO2531,EN545 Ductile Iron DI Restrained Flange Adaptors Coupling for PE Pipe
US$ 6.50 - 35.00
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Ductile Iron Cast Pipe Fittings Flexible Restrained Coupling For PE, HDPE Pipe
-
Ductile Cast Iron Restrained Flange Adaptor and Coupling For PE Pipe
-
Ductile Cast Iron Grip Restraint Flange Adaptor And Coupling for PE or PVC Pipe
-
DI Ductile Iron Joint Pipe Fittings Restraint Grip Flange Adaptor Coupling for HDPE Pipe
-
Ductile Cast Iron Flange and Connectors Restrained Flange Adaptors for Water Supply System
-
ISO2531,EN545 Ductile iron restrained pipe joint coupling for HDPE pipe
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
Specifications
Restraint Flange Adaptor
PN10/16
DN50~DN300 (OD63~OD315mm)
Technical specifications:
- Flange drilling: EN1092-2 PN10/16
- Size range: DN50~DN300 (OD63~OD315mm)
- Max. Working pressure: 1.0/1.6 Mpa
- Working temperature: -15 ° C to + 80 ° C
- Suitable mediem: Water
- Connected pipe: PE and PVC pipes
- Coating: Epoxy powder coated (min. 250 microns)
Materials of parts:
- Body and end ring: Ductile iron EN GJS500-7/400-15
- Gasket: EPDM or NBR
- Grip ring: Brass/ Carbon steel
- Bolts and washers: Steel grade 4.8/8.8-galvanized or dacromet coating / stainless steel 304
Pressure parameters:
| Size DN | Pressure rating PN | Hydrost test pressure for Body Bar | Admissible working pressure in Bar Up to 60ºC |
| 50-300 | 10 | 15 | 10 |
| 50-300 | 16 | 24 | 16 |
Detailed Images
