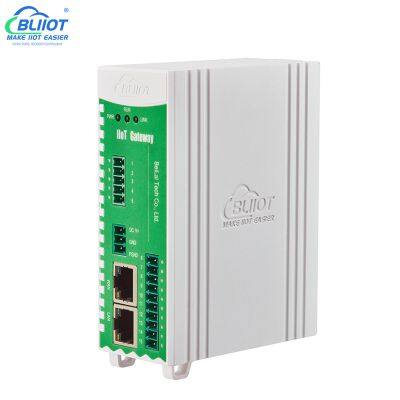

BLIIoT FX5U PLC to OPC UA BL103 Protocol Translation Gateway with RS485/RJ45/WIFI/4G

Name: BLIIoT FX5U PLC to OPC UA BL103 Protocol Translation Gateway with RS485/RJ45/WIFI/4G
Brand: BLIIOT
Availability: InStock

FOB Price

US$ 42.55 - 75 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T PayPal
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BLIIOT		Place of Origin	China
Model Number	BL103

Product Description

PLC to OPC UA Industrial IoT Protocol Gateways BL103

Item No.: BL103

BLIIoT BL103 Industrial IoT Protocol Gateways get data from your plc or modbus based devices to your OPC UA clients.

Basic Version: 2 Serial Ports: BL103
P Version: 6 Serial Ports: BL103P

Downlink Supports Modbus RTU,Modbus TCP,PLC protocol
Uplink Supports OPC UA SNMP
Supports SNMP V1/V2
Supports transparent transmission
RJ45 Ethernet ports
RS-485/232 serial ports
Supports OpenVPN
Supports 4G communication
Supports routing functions and cascading switch
Supports remote configuration and firmware upgrade

Model List

Model	WAN	LAN	COM(Default RS485,optional RS232)	WiFi	4G	GPS
BL103	1	1	2	×	×	×
BL103L	1	1	2	×	√	×
BL103LG	1	1	2	×	√	√
BL103W	1	1	2	√	×	×
BL103P	1	1	6	×	×	×
BL103PL	1	1	6	×	√	×
BL103PLG	1	1	6	×	√	√
BL103PW	1	1	6	√	×	×

Product Parameters

	Parameter	Description
System	Processor	Clock speed 300Mhz
	Storage	128MB
	Flash memory	64MB
Power Supply	Input voltage	DC 9~36V
	Power consumption	Normal: 85mA@12V, MAX: 117mA@12V
	Wiring	Anti-reverse connection
Ethernet Ports	Specification	2CH RJ45, 10/100Mbps, adaptive MDI/MDIX
Ethernet Ports	Protection	ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz
Serial Ports	QTY	2CH RS485 or RS232
	Baud Rate	2400bps-115200bps
	Data Bit	7, 8
	Parity Bit	None, Even, Odd
	Stop Bit	1, 2
	Protection	ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz
SIM Card Slot	QTY	1
	Specification	Drawer type slot, support 1.8V/3V SIM/UIM card (NANO)
	Protection	Built-in 15KV ESD Protection
USB Ports	QTY	1CH program downloading, 1CH program debugging
	Specification	Micro USB OTG
	Protection	Over Current Protection
4G(Optional)	Antenna QTY	1
	Antenna type	SMA
	L-E	GSM/EDGE:900,1800MHz WCDMA:B1,B5,B8 FDD-LTE:B1,B3,B5,B7,B8,B20 TDD-LTE:B38,B40,B41
	L-CE	GSM/EDGE:900,1800MHz WCDMA:B1,B8 TD-SCDMA:B34,B39 FDD-LTE:B1,B3,B8 TDD-LTE:B38,B39,B40,B41
	L-A	WCDMA:B2,B4,B5 FDD-LTE:B2,B4,B12
	L-AU	GSM/EDGE:850,900,1800MHz WCDMA:B1,B2,B5,B8 FDD-LTE:B1,B3,B4,B5,B7,B8,B28 TDD-LTE:B40
	L-AF	WCDMA:B2,B4,B5 FDD-LTE:B2,B4,B5,B12,B13,B14,B66,B71
	CAT-1	GSM:900,1800 FDD-LTE:B1,B3,B5,B8 TDD-LTE:B34,B38,B39,B40,B41
GPS(Optional)	Antenna QTY	1
	Antenna type	SMA
	Tracking sensitivity	> -148 dBm
	Plane position accuracy	2.5m
	Protocol	NMEA-0183 V2.3
WiFi(Optional)	Antenna QTY	1
	Antenna type	SMA
	Protocol	802.11a/b/g/n(mixed)
	Mode	Client mode
	Signal path	2.4G Channel 1 - 13, 5G Channel 36 - 165
	Security	Open, WPA, WPA2
	Encryption	AES, TKIP, TKIPAES
	Speed	150Mbps(Max)
	Transmission distance	Outdoor open area, up to 20 meters
	SSID	Support
Indicator	PWR	Always on when device powered on Off when device lose power
	RUN	Flickering when system running Off when system shutdown
	LINK	Flickering when Ethernet communication; Always on when 4G or WiFi communication; OFF when Ethernet, 4G, WiFi are all disconnected.
Software	Internet Protocol	IPV4, TCP/UDP, DHCP, DNS
	IP Retrieving	Static IP/DHCP
	Transmission	Support Transparent Transmission
	DNS	Support Domain Name Resolution
	Configuration	PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10
	Internet Cache	Transmitting: 8Kbyte; Receiving: 8Kbyte
	Login Package	Support custom login package
	Heartbeat Package	Support custom heartbeat package
Safety Certification	MTBF	≥100,000 hours
	EMC	EN 55022: 2006/A1: 2007 (CE &RE) Class B
		IEC 61000-4-2 (ESD) Level 3
		IEC 61000-4-4 (EFT) Level 3
		IEC 61000-4-5 (Surge)Level 3
	Others	CE, RoHS, FCC
Environment	Working	-40~55ºC, 5~95% RH
Environment	Storage	-40~70ºC, 5~95% RH
Others	Shell	Plastic
	Dimension	30mm×83mm×110mm(LxWxH)
	IP Grade	IP30
	Net Weight	133g
	Installation	DIN-Rail Mounting, Wall-Mounting
