2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition

2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition thumbnail-1
2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition thumbnail-2
2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition thumbnail-3
2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition thumbnail-4
2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition thumbnail-5
2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition photo-1

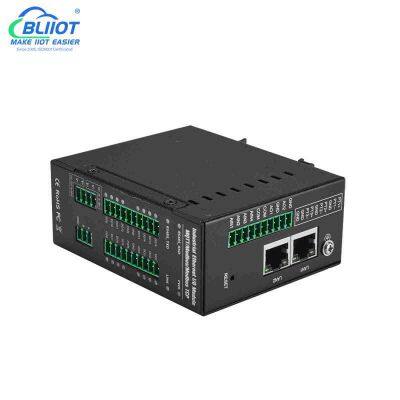

2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition photo-2

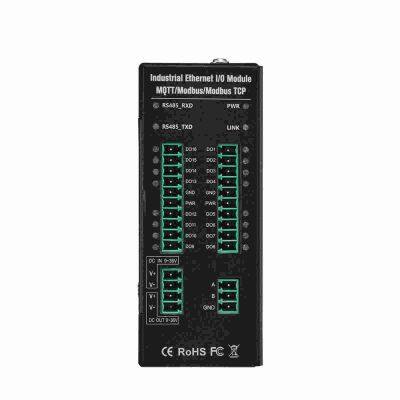

2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition photo-3
2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition photo-4
2 Channel 0-10V 12Bits Aanalog Outputs Modbus Remote IO for Industrial Data Acquisition photo-5
US$ 103.57 - 136.94 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
M120T
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number M120T

Product Description

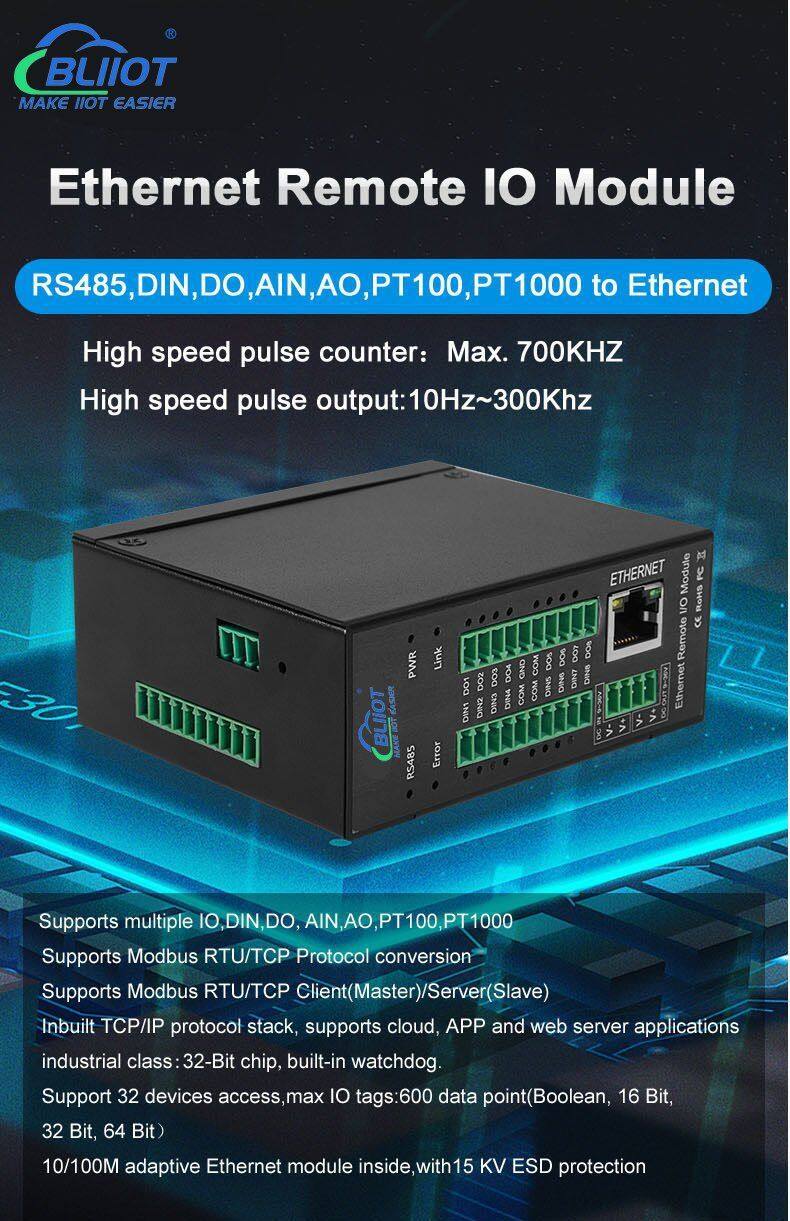

Industiral Automation 4DIN+4AIN+2AO+4DO Ethernet Remote IO Module for PLC Extension

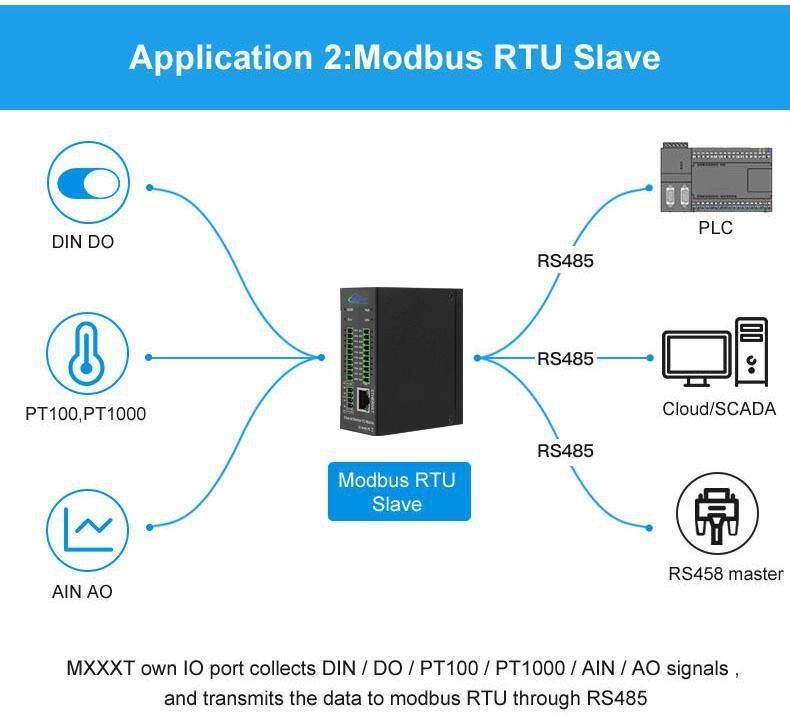

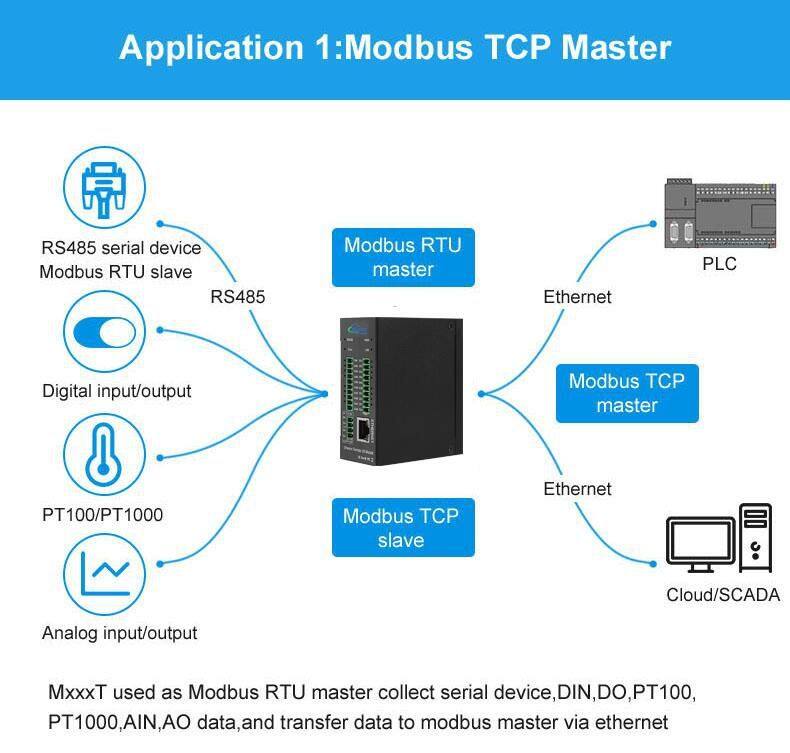

There are many industrial automation devices such as PLC which have a MODBUS Communications facility available. PLC can be configured as a MODBUS Master, and IO modules are attached to the RS485 configured as RTU slaves. PLC system use M120 Modbus RTU IO Module to increasing the I/O capability of the industrial control system. The Modbus remote IO M120 also supports Modbus TCP server and client, SNMP V1/V2, and MQTT protocol. Which is suitable for wide range of industrial data acquisition and remote monitoring applications.

The M120 Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.

Application

Product Parameters

Item Parameter Description
Power Input voltage

  1. Models without AO: 9~36VDC

  2. Models with AO: 24~36VDC
Power consumption Typical standby power consumption: ≤ 2W
Power Output

  1. 1 channel

  2. Output voltage: 9~36V DC

  3. Output current: 1500mA@12V(MAX)
Protection Reverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
Ethernet Specification 1 x RJ45, 10M/100Mbps
Protection ESD contact: 8KV, Surge: 4KV(10/1000us)
Protocol Modbus RTU, Modbus TCP, MQTT
Serial port QTY 1 x RS485
Baud Rate 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Data Bit 7, 8
Parity Bit None, Even, Odd
Stop Bit 0.5, 1, 1.5, 2
Protocol Modbus RTU(slave), Modbus RTU(master)
Protection ESD contact: 8KV  Surge: 4KV(8/20us)
Digital input QTY 4 channel
Type Support Wet contact(NPN, PNP) and Dry contact.
Default: Wet contact
Dry contact

  1. Close: Short circuit

  2. Open: Open circuits
Wet contact

  1. Close: 10~30VDC

  2. Open: 0~3VDC

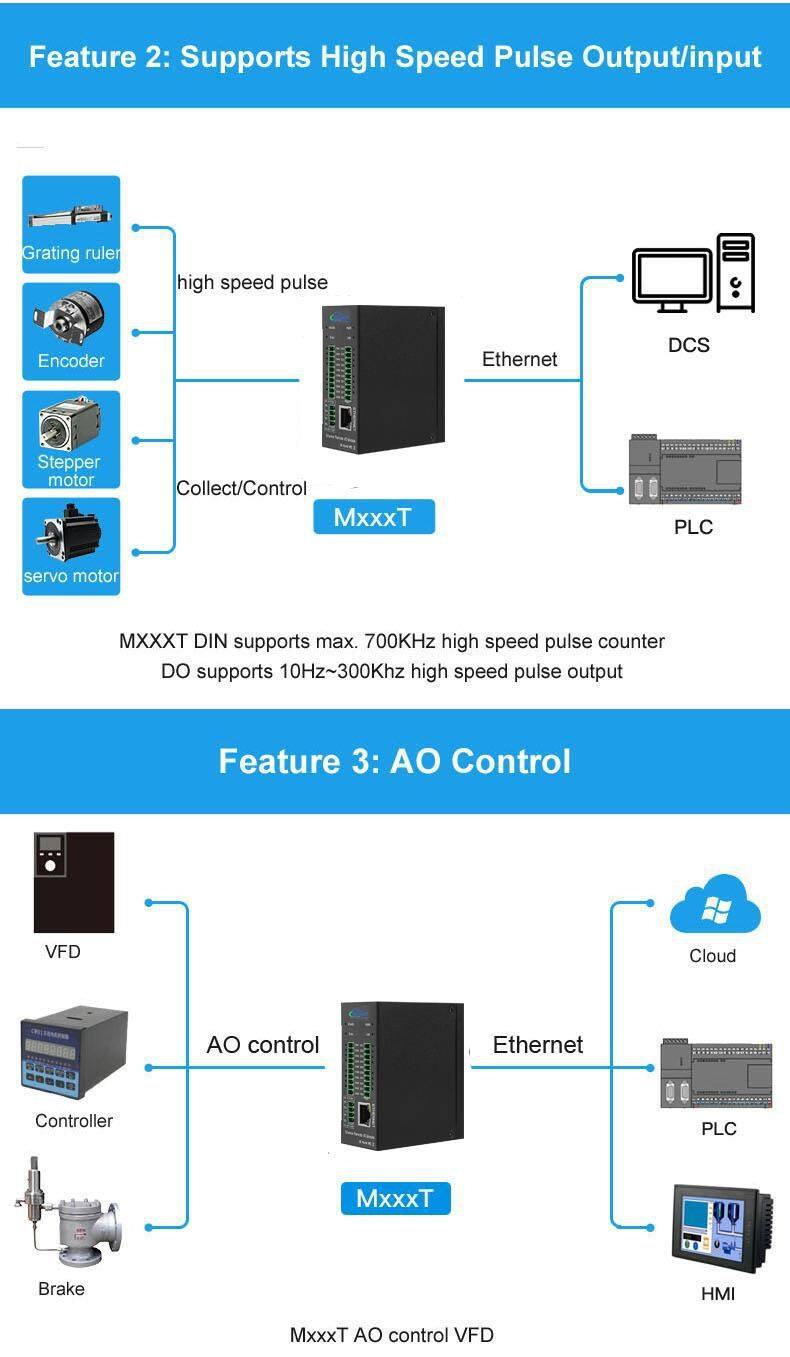

Others Support DIN1 as a pulse counter: Support high-speed pulse and low-speed pulse mode, default high-speed pulse frequency is up to 700KHz, and the optional low-speed pulse frequency is up to 10KHz.
Support DIN2~DIN12 as low-speed pulse counter: The anti-jitter time can be set from 1~2000ms, default is 1ms, and the corresponding pulse frequency is up to 1KHz.
Isolated protection 2KVrms
Sampling Rate 100Hz
Digital output QTY 4 channels
Type SINK
Capacity 500mA per contact
Overvoltage protection 50VDC
Pulse output The first DO supports pulse output, pulse output frequency: 10Hz~300KHz
Analog input (12bit) QTY 4 channels
Method Differential input
Type 4-20mA, 0-20mA, 0-5V, 0-10V
Resolution 12Bit
Accuracy

  1. ±0.1% FSR @ 25°C

  2. ±0.3% FSR @ -10 and 60°C

  3. ±0.5% FSR @ -40 and 75°C
Sampling Rate 20Hz
Input Impedance

  1. Voltage type: >1M ohms

  2. Current type: 162 ohms
Analog input (16bit) QTY
4 channels
Method Differential input
Type 4-20mA, 0-20mA, 0-5V, 0-10V
Resolution

  1. 16Bit
Accuracy

  1. ±0.5‰FSR @ 25°C
Input Impedance

  1. Voltage type: >1M ohms

  2. Current type: 162 ohms
Analog output QTY 2 channels
Method Single-ended to ground
Type 0~10VDC
Resolution 12Bit
Accuracy

  1. ±0.1% FSR @ 25°C

  2. ±0.3% FSR @ -10 and 60°C

  3. ±0.5% FSR @ -40 and 75°C
Maximum load 1000mA
Software Protocols IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT
Protocol conversion Support Modbus TCP and RTU protocol conversion
Support Modbus RTU to MQTT and Modbus TCP to MQTT
Indicator light Power, Link, RS485_RXD, RS485_TXD, IO status
User configuration PC software configuration, support WIN XP, WIN 7, WIN 8, WIN 10
Map data bool: 300
16bit: 300
Login Package Support custom login package
Heartbeat Package Support custom heartbeat package
Environment Working -20~70°C, 5~95%RH
Storage -40~85°C, 5~95%RH
Others Case Metal
Dimension 82mm×40mm×100mm
Protection grade IP30
Net Weight 450g
Installation DIN rail mounted, Wall-mounted
