Product Description

M340E is a 8 RTD input module. The module can accommodate either 2 or 3 wire PT100 or PT1000 sensors. The PT100/PT100 input module covers minus 50°C to 300°C, the RTD measurement resolution of this RTD input module is 12bit. The RTD input module comes with Ethernet port and RS-485 serial port.

1. Industrial automation data acquisition and control;
2. Smart grid data acquisition and control;
3. Smart transportation data acquisition and control;
4. Cold storage temperature monitoring, fruit and vegetable storage room, industrial computer room, transformer cabinet, etc.;
5. Warehousing and libraries temperature and humidity data acquisition and
monitoring;
6. Solar monitoring system data transmission;
7. Data transmission of ATM, POS, electric meter, PLC, DAQ and other equipment;
8. Agricultural temperature and humidity data acquisition and monitoring;
9. Breeding temperature and humidity data acquisition and monitoring;
10. Charging pile data acquisition and transmission;
11. Meteorological station data acquisition and monitoring;
12. Environmental protection data acquisition and control;
13. Occasions where other monitoring points are scattered;

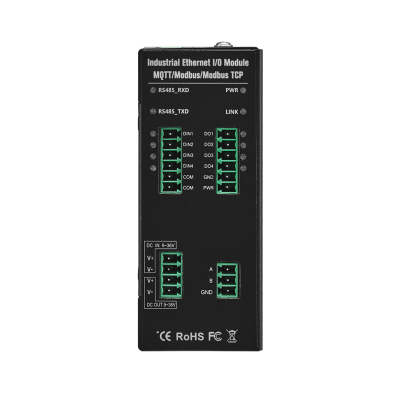

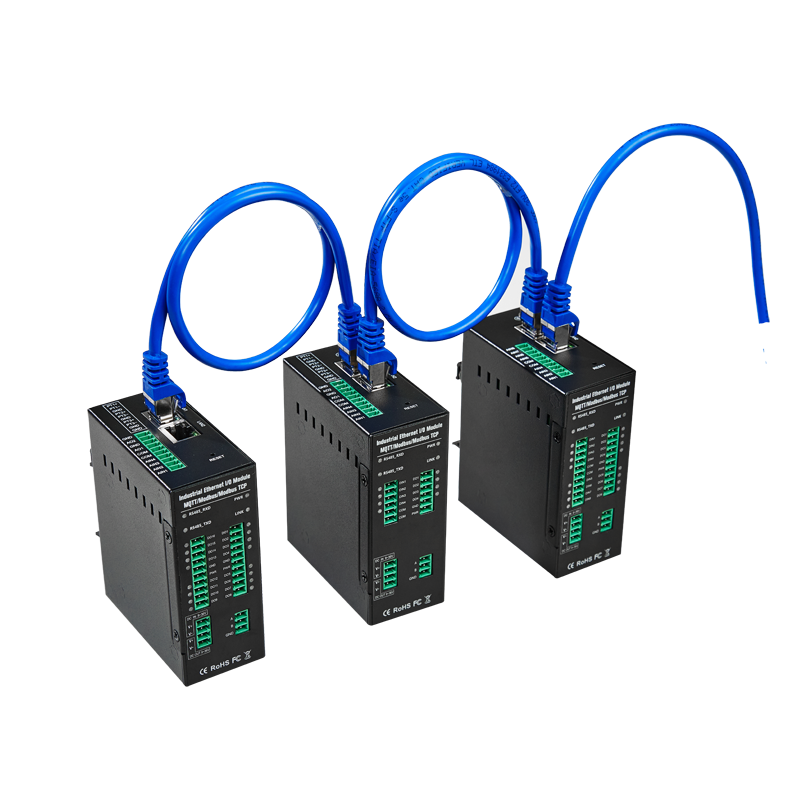

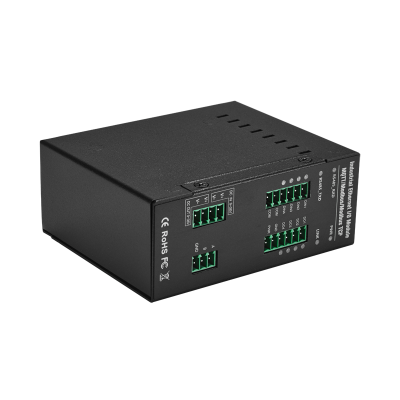

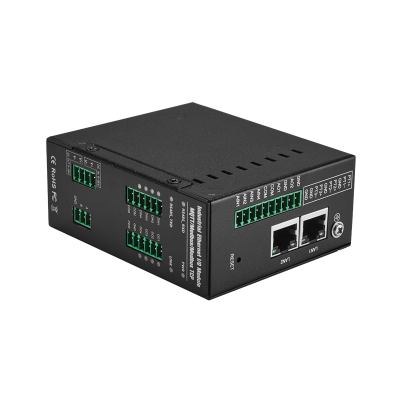

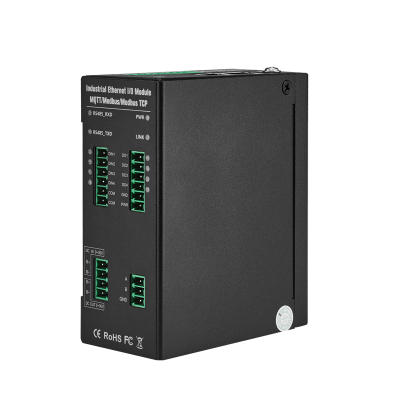

Detailed Photos

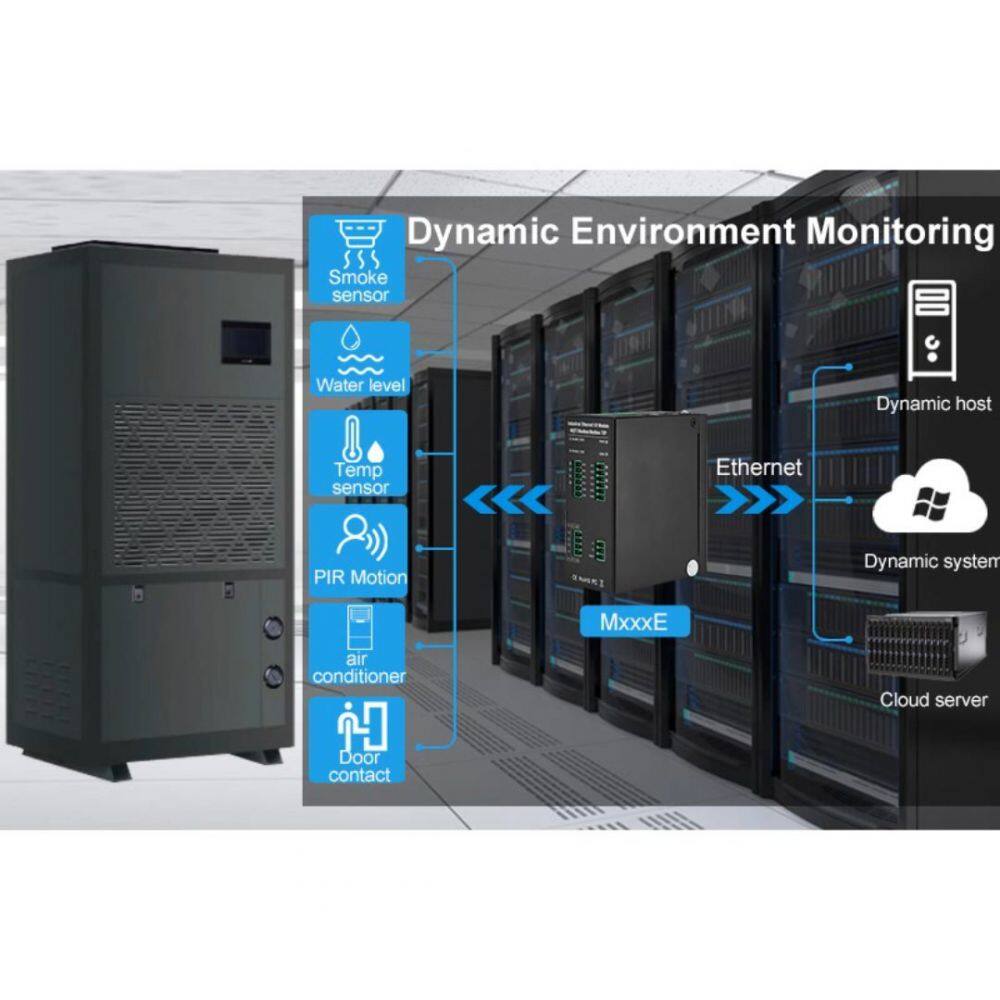

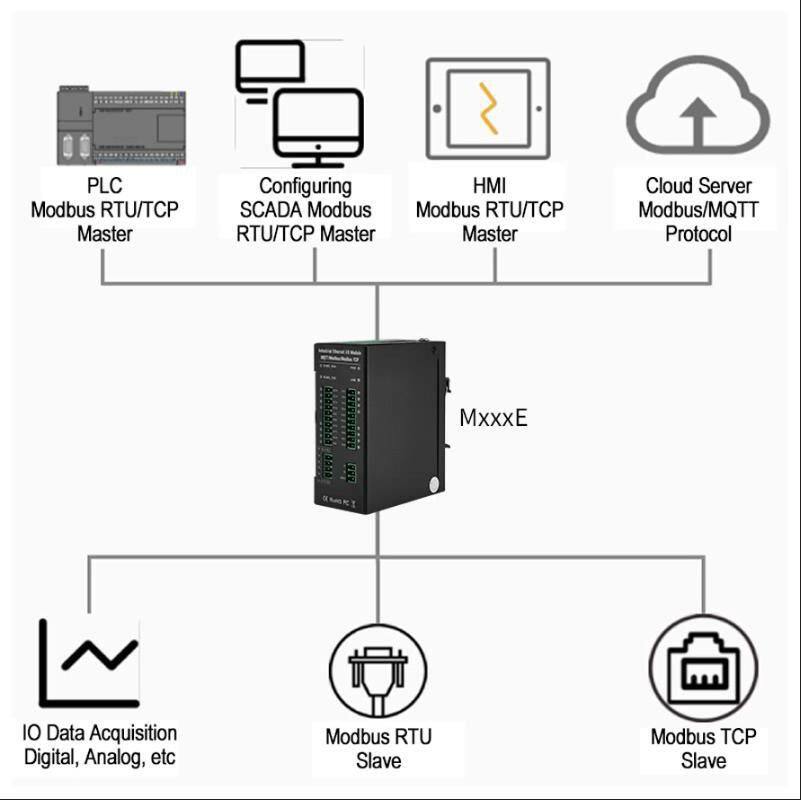

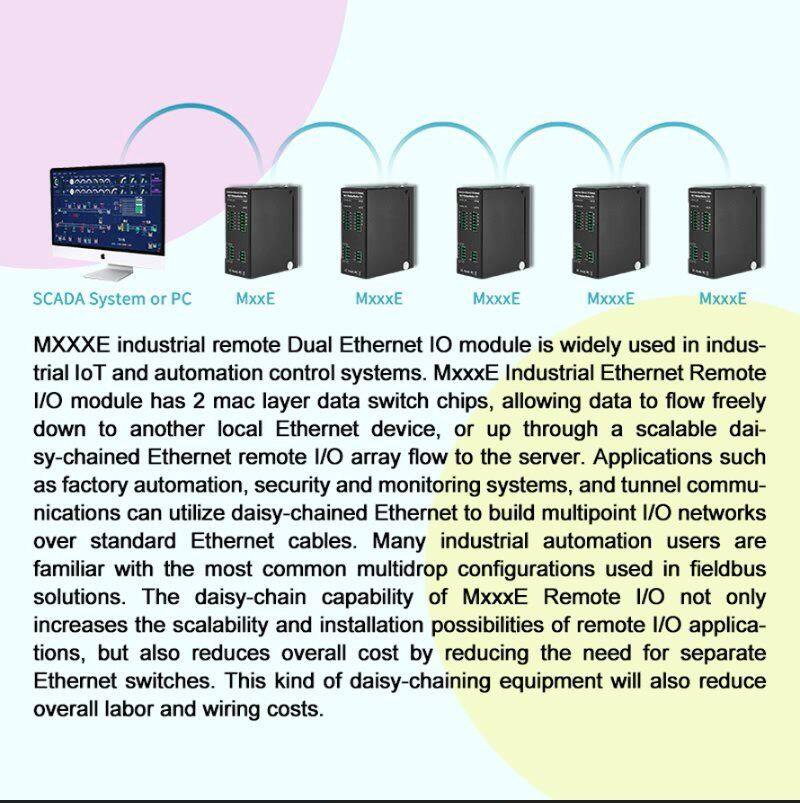

Application

Product Parameters

ItemParameterDescription
PowerInput voltage

  1. Models without AO: 9~36VDC

  2. Models with AO: 24~36VDC

Power consumptionTypical standby power consumption: ≤ 2W
Power Output

  1. 1 channel

  2. Output voltage: 9~36V DC

  3. Output current: 1500mA@12V(MAX)

ProtectionReverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
EthernetSpecification1 x RJ45, 10M/100Mbps
ProtectionESD contact: 8KV, Surge: 4KV(10/1000us)
ProtocolModbus RTU, Modbus TCP, MQTT
Serial portQTY1 x RS485
Baud Rate2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Data Bit7, 8
Parity BitNone, Even, Odd
Stop Bit0.5, 1, 1.5, 2
ProtocolModbus RTU(slave), Modbus RTU(master)
ProtectionESD contact: 8KV  Surge: 4KV(8/20us)
RTDQTY8 channels(Max)
Range-50 ~ +300°C
Type2/3 wire PT100/PT1000
Resolution12Bit
Accuracy

  1. ±0.1% FSR @ 25°C

  2. ±0.3% FSR @ -10 and 60°C

  3. ±0.5% FSR @ -40 and 75°C

Sampling Rate20Hz


SoftwareProtocolsIPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT
Protocol conversionSupport Modbus TCP and RTU protocol conversion
Support Modbus RTU to MQTT and Modbus TCP to MQTT
Indicator lightPower, Link, RS485_RXD, RS485_TXD, IO status
User configurationPC software configuration, support WIN XP, WIN 7, WIN 8, WIN 10
Map databool: 300
16bit: 300
Login PackageSupport custom login package
Heartbeat PackageSupport custom heartbeat package
EnvironmentWorking-20~70°C, 5~95%RH
Storage-40~85°C, 5~95%RH
OthersCaseMetal
Dimension82mm×40mm×100mm
Protection gradeIP30
Net Weight450g
InstallationDIN rail mounted, Wall-mounted

Model List

Industrial Ethernet I/O Module Model List
ModelDescriptionDC outputDC inputPower consumption
M100E2RJ45, 1RS485, 2DI, 2AI, 2DO1 DC9~36VDC160mA@12V
M110E2RJ45, 1RS485, 4DI, 4DO1 DC9~36VDC160mA@12V
M120E2RJ45, 1RS485, 4DI, 4AI, 4DO, 2AO1 DC24~36VDC90mA@24V
M130E2RJ45, 1RS485, 8DI, 4DO1 DC9~36VDC150mA@12V
M140E2RJ45, 1RS485, 8DI, 8DO1 DC9~36VDC150mA@12V
M150E2RJ45, 1RS485, 8DI, 4AI, 4DO1 DC9~36VDC150mA@12V
M160E2RJ45, 1RS485, 8DI, 8AI, 8DO1 DC9~36VDC150mA@12V
M200E2RJ45, 1RS485, 2AO1 DC24~36VDC90mA@24V
M210E2RJ45, 1RS485, 4DI1 DC9~36VDC160mA@12V
M220E2RJ45, 1RS485, 4DO1 DC9~36VDC160mA@12V
M230E2RJ45, 1RS485, 4AI1 DC9~36VDC160mA@12V
M240E2RJ45, 1RS485, 4 RTD, 2/3wire PT100/PT10001 DC9~36VDC100mA@12V
M310E2RJ45, 1RS485, 8DI1 DC9~36VDC150mA@12V
M320E2RJ45, 1RS485, 8DO1 DC9~36VDC150mA@12V
M330E2RJ45, 1RS485, 8AI1 DC9~36VDC150mA@12V
M340E2RJ45, 1RS485, 8 RTD, 2/3 wire PT100/PT10001 DC9~36VDC100mA@12V
M410E2RJ45, 1RS485, 16DI1 DC9~36VDC160mA@12V
M420E2RJ45, 1RS485, 16DO1 DC9~36VDC110mA@12V

Company Profile

Start Your Digital Transformation with BLIIoT

Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices. Beilai is the pinyin of barium-rhenium in Mandarin. Barium is a lively element, and rhenium is the last element discovered by human beings.
The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.

Beilai-Original&Reliable IoT Products Manufacturer

Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.
Beilai internal Quality Management System is audited and verified by independent certification bodies against GB/T19001-2016/ISO9001:2015 to prove conformity to internal standards, ISO norms, laws and regulatory requirements.

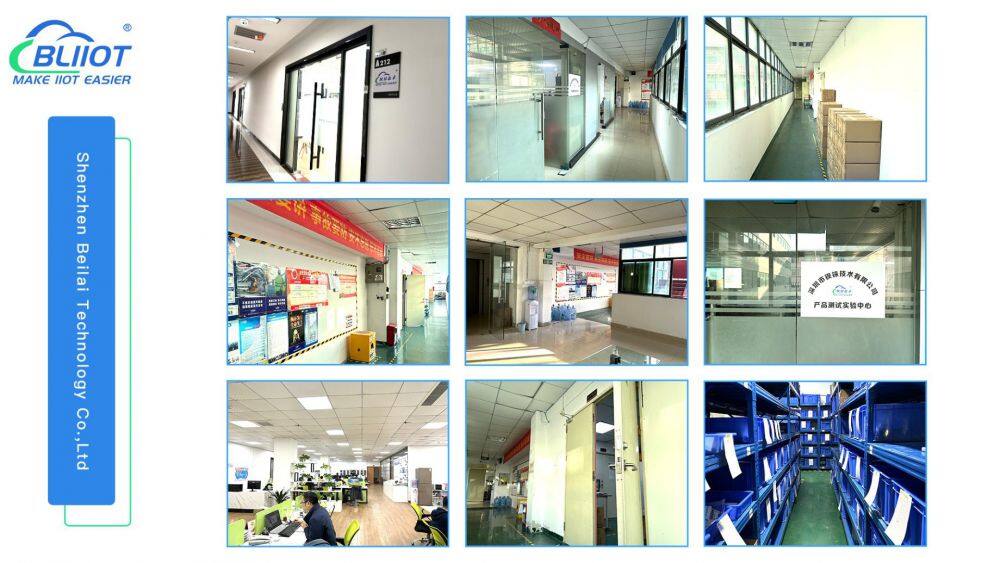

Offices and Factories
