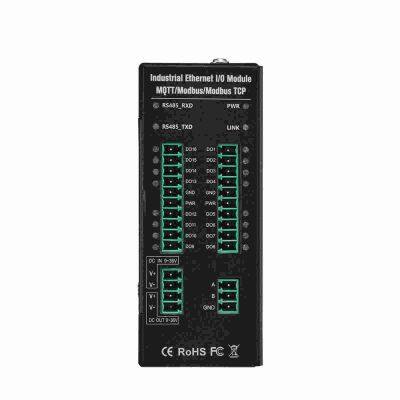

High-speed Pulse Output Counting 8DI 4DO RS485 Ethernet Remote IO Module photo-4

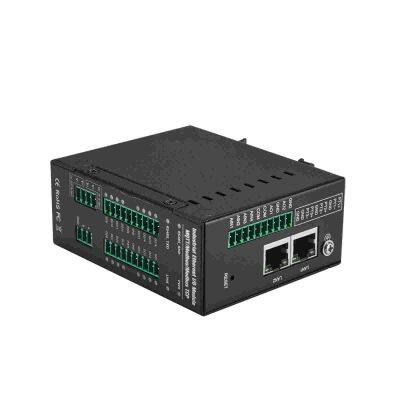

High-speed Pulse Output Counting 8DI 4DO RS485 Ethernet Remote IO Module photo-5
US$ 93.56 - 125.32 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
M130T
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number M130T

Product Description

Industiral Automation 8DIN+4DO Ethernet Remote IO Module for PLC Extension

M130 Ethernet remote I/O module brings access and control of remote digital I/O, pulse I/O, relays to network.
M130 Modbus TCP digital input/output I/O module comes with 8 digital inputs, 4 digital outputs. The modbus tcp digital I/O can be integrated into SCADA and connect with PLCs, and also can upload data to cloud platform for remote monitoring and remote control.

Application

Product Parameters

ItemParameterDescription
PowerInput voltage

  1. Models without AO: 9~36VDC

  2. Models with AO: 24~36VDC

Power consumptionTypical standby power consumption: ≤ 2W
Power Output

  1. 1 channel

  2. Output voltage: 9~36V DC

  3. Output current: 1500mA@12V(MAX)

ProtectionReverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
EthernetSpecification1 x RJ45, 10M/100Mbps
ProtectionESD contact: 8KV, Surge: 4KV(10/1000us)
ProtocolModbus RTU, Modbus TCP, MQTT
Serial portQTY1 x RS485
Baud Rate2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Data Bit7, 8
Parity BitNone, Even, Odd
Stop Bit0.5, 1, 1.5, 2
ProtocolModbus RTU(slave), Modbus RTU(master)
ProtectionESD contact: 8KV  Surge: 4KV(8/20us)
Digital inputQTY8 channel
TypeSupport Wet contact(NPN, PNP) and Dry contact.
Default: Wet contact
Dry contact

  1. Close: Short circuit

  2. Open: Open circuits

Wet contact

  1. Close: 10~30VDC

  2. Open: 0~3VDC

OthersSupport DIN1 as a pulse counter: Support high-speed pulse and low-speed pulse mode, default high-speed pulse frequency is up to 700KHz, and the optional low-speed pulse frequency is up to 10KHz.
Support DIN2~DIN12 as low-speed pulse counter: The anti-jitter time can be set from 1~2000ms, default is 1ms, and the corresponding pulse frequency is up to 1KHz.
Isolated protection2KVrms
Sampling Rate100Hz
Digital outputQTY4 channels
TypeSINK
Capacity500mA per contact
Overvoltage protection50VDC
Pulse outputThe first DO supports pulse output, pulse output frequency: 10Hz~300KHz
SoftwareProtocolsIPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT
Protocol conversionSupport Modbus TCP and RTU protocol conversion
Support Modbus RTU to MQTT and Modbus TCP to MQTT
Indicator lightPower, Link, RS485_RXD, RS485_TXD, IO status
User configurationPC software configuration, support WIN XP, WIN 7, WIN 8, WIN 10
Map databool: 300
16bit: 300
Login PackageSupport custom login package
Heartbeat PackageSupport custom heartbeat package
EnvironmentWorking-20~70°C, 5~95%RH
Storage-40~85°C, 5~95%RH
OthersCaseMetal
Dimension82mm×40mm×100mm
Protection gradeIP30
Net Weight450g
InstallationDIN rail mounted, Wall-mounted
