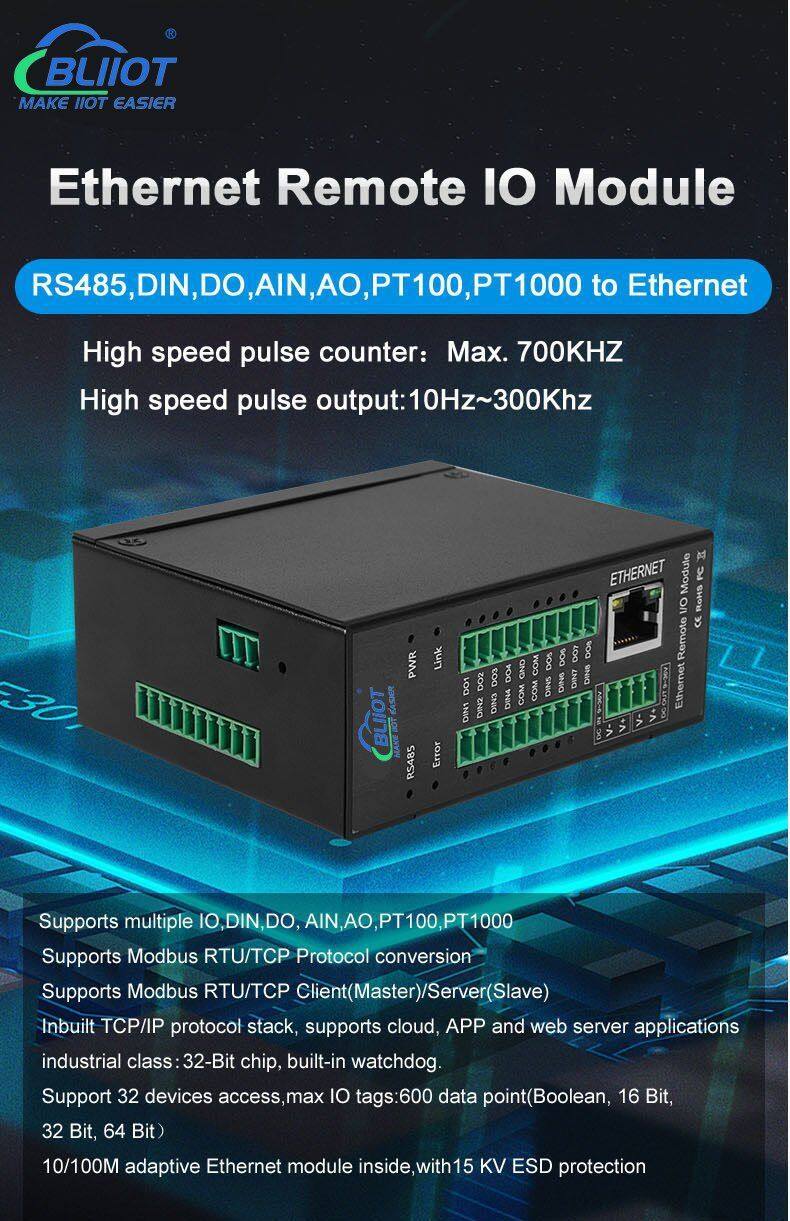

High Pulse Output Data Acquisition Module M100T for Energy Storage System Monitoring

Name: High Pulse Output Data Acquisition Module M100T for Energy Storage System Monitoring
Brand: BLIIOT
Availability: InStock

FOB Price

US$ 82.86 - 104.72 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T PayPal
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BLIIOT		Place of Origin	China
Model Number	M100T

Product Description

Digital Input/Output Modules

^{The BLIIoT's wide range of digital I/O modules guarantees the right module for diverse applications.
The input/output module M110 is used for controlling digital consumer like contactors, relays, pneumatic and hydraulic valves, as well as for reading digital signals of sensors or detectors.
The Digital I/O M110 comes with 4 digital inputs, 4 digital outputs, and Modbus I/O, Ethernet port.}

Product Parameters

Item	Parameter	Description
Power	Input voltage	Models without AO: 9~36VDC Models with AO: 24~36VDC
	Power consumption	Typical standby power consumption: ≤ 2W
	Power Output	1 channel Output voltage: 9~36V DC Output current: 1500mA@12V(MAX)
	Protection	Reverse wiring prevention; ESD Air: 15KV; Surge: 4KV
Ethernet	Specification	1 x RJ45, 10M/100Mbps
	Protection	ESD contact: 8KV, Surge: 4KV(10/1000us)
	Protocol	Modbus RTU, Modbus TCP, MQTT
Serial port	QTY	1 x RS485
	Baud Rate	2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
	Data Bit	7, 8
	Parity Bit	None, Even, Odd
	Stop Bit	0.5, 1, 1.5, 2

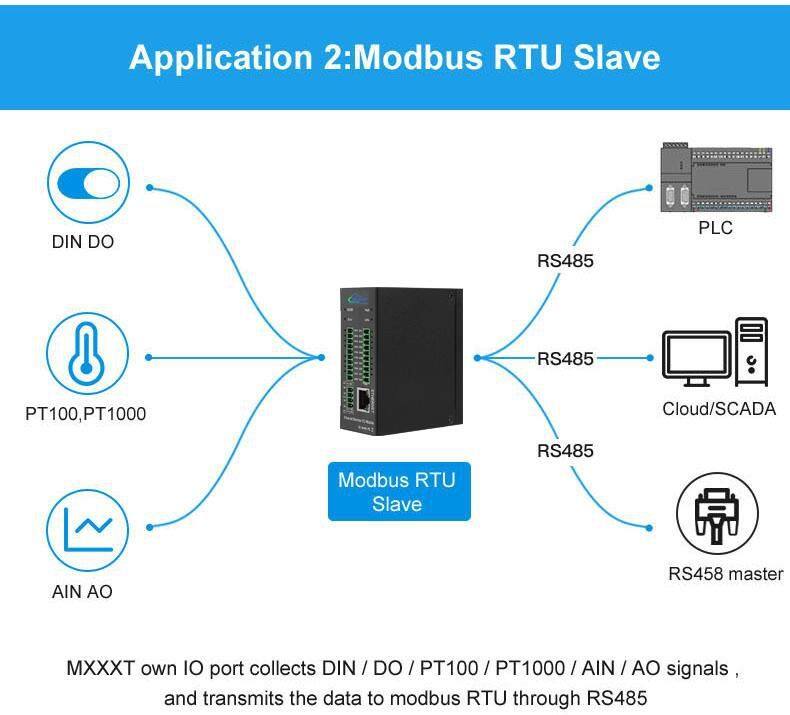

	Protocol	Modbus RTU(slave), Modbus RTU(master)
	Protection	ESD contact: 8KV Surge: 4KV(8/20us)
Digital input	QTY	2 channels
	Type	Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact
	Dry contact	Close: Short circuit Open: Open circuits
	Wet contact	Close: 10~30VDC Open: 0~3VDC

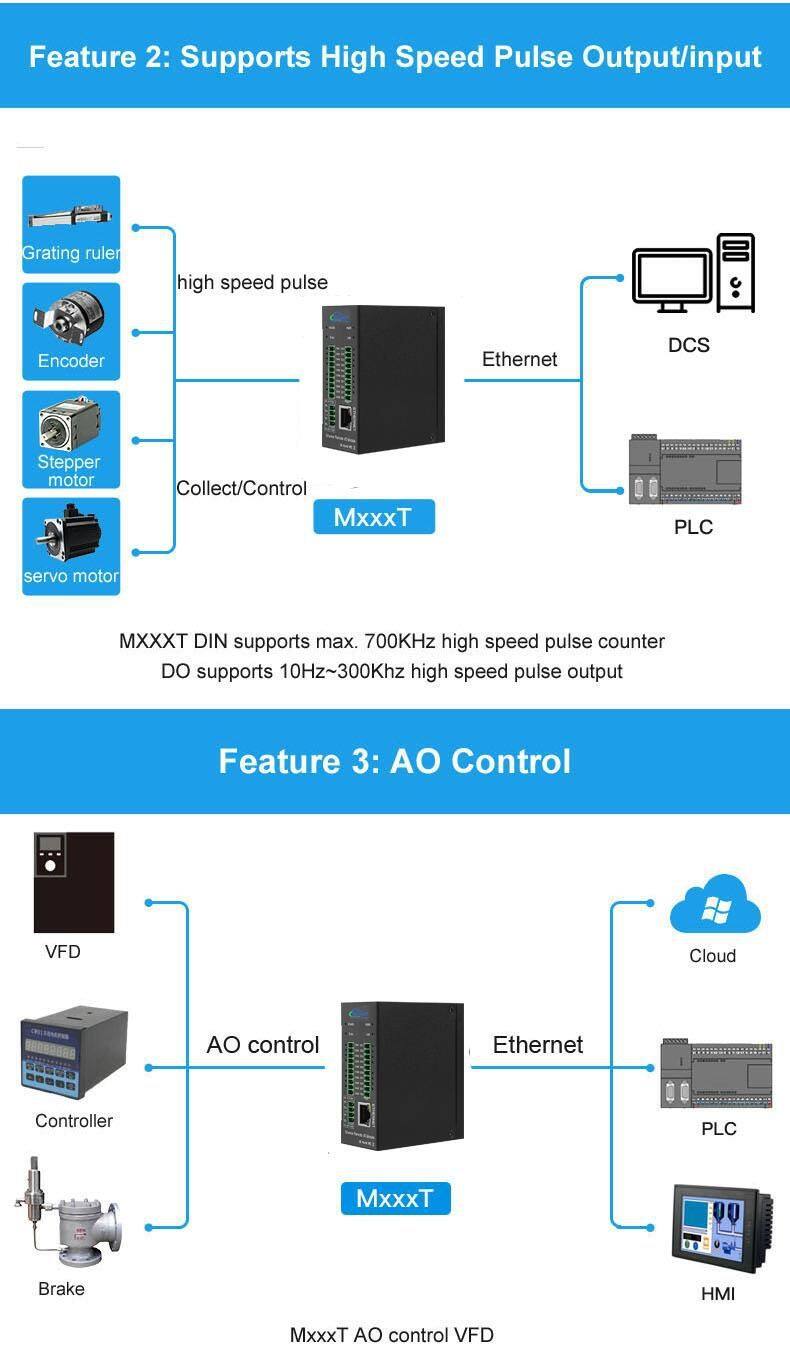

	Others	Support DIN1 as a pulse counter: Support high-speed pulse and low-speed pulse mode, default high-speed pulse frequency is up to 700KHz, and the optional low-speed pulse frequency is up to 10KHz. Support DIN2~DIN12 as low-speed pulse counter: The anti-jitter time can be set from 1~2000ms, default is 1ms, and the corresponding pulse frequency is up to 1KHz.
	Isolated protection	2KVrms
	Sampling Rate	100Hz
Digital output	QTY	2 channels
	Type	SINK
	Capacity	500mA per contact
	Overvoltage protection	50VDC
	Pulse output	The first DO supports pulse output, pulse output frequency: 10Hz~300KHz
Analog input (12bit)	QTY	2 channels
	Method	Differential input
	Type	4-20mA, 0-20mA, 0-5V, 0-10V
	Resolution	12Bit
	Accuracy	±0.1% FSR @ 25°C ±0.3% FSR @ -10 and 60°C ±0.5% FSR @ -40 and 75°C
	Sampling Rate	20Hz
	Input Impedance	Voltage type: >1M ohms Current type: 162 ohms
Analog input (16bit)	QTY	2 channels
	Method	Differential input
	Type	4-20mA, 0-20mA, 0-5V, 0-10V
	Resolution	16Bit
	Accuracy	±0.5‰FSR @ 25°C
	Input Impedance	Voltage type: >1M ohms Current type: 162 ohms
Software	Protocols	IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT

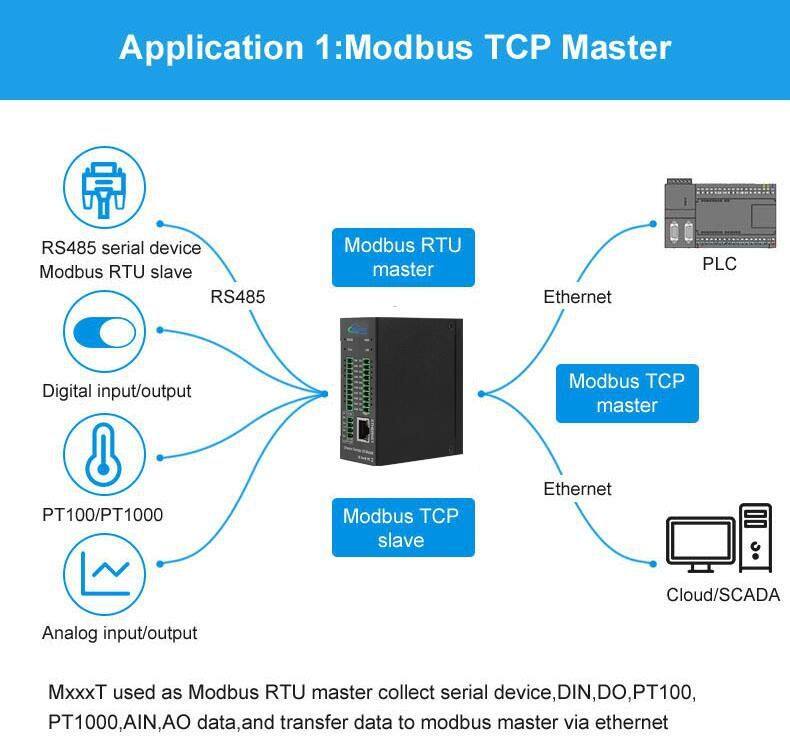

	Protocol conversion	Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT
	Indicator light	Power, Link, RS485_RXD, RS485_TXD, IO status
	User configuration	PC software configuration, support WIN XP, WIN 7, WIN 8, WIN 10
	Map data	bool: 300 16bit: 300
	Login Package	Support custom login package
	Heartbeat Package	Support custom heartbeat package
Environment	Working	-20~70°C, 5~95%RH
Environment	Storage	-40~85°C, 5~95%RH
Others	Case	Metal
	Dimension	82mm×40mm×100mm
	Protection grade	IP30
	Net Weight	450g
	Installation	DIN rail mounted, Wall-mounted
