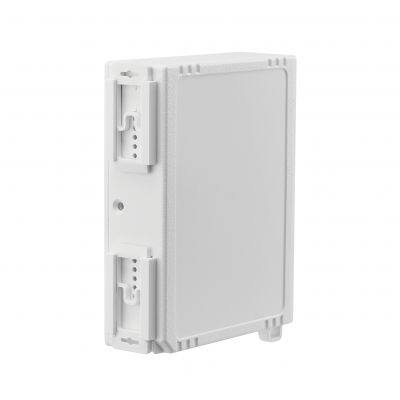

L02 L26-BT to OPC UA Protocol Gateway BL103 Compatible AWS IoT, Ignition SCADA With RS485 4G WIFI LAN photo-3
L02 L26-BT to OPC UA Protocol Gateway BL103 Compatible AWS IoT, Ignition SCADA With RS485 4G WIFI LAN photo-4
L02 L26-BT to OPC UA Protocol Gateway BL103 Compatible AWS IoT, Ignition SCADA With RS485 4G WIFI LAN photo-5
US$ 42.55 - 75 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
BL103
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number BL103

Product Description

PLC to OPC UA Industrial IoT Protocol Gateways BL103
Item No.: BL103
BLIIoT BL103 Industrial IoT Protocol Gateways get data from your plc or modbus  based devices to your OPC UA clients.

  • Basic Version: 2 Serial Ports: BL103

  • P Version: 6 Serial Ports: BL103P

Downlink Supports Modbus RTU,Modbus TCP,PLC protocol
Uplink Supports OPC UA SNMP
Supports SNMP V1/V2
Supports transparent transmission
RJ45 Ethernet ports
RS-485/232 serial ports
Supports OpenVPN
Supports 4G communication
Supports routing functions and cascading switch
Supports remote configuration and firmware upgrade

Detailed Photos


Model List

Model WAN LAN COM(Default RS485,optional RS232) WiFi 4G GPS
BL103 1 1 2 × × ×
BL103L 1 1 2 × √ ×
BL103LG 1 1 2 × √ √
BL103W 1 1 2 √ × ×
BL103P 1 1 6 × × ×
BL103PL 1 1 6 × √ ×
BL103PLG 1 1 6 × √ √
BL103PW 1 1 6 √ × ×

Product Parameters


 Parameter Description
System Processor Clock speed 300Mhz
Storage 128MB
Flash memory 64MB
Power Supply Input voltage DC 9~36V
Power consumption Normal: 85mA@12V, MAX: 117mA@12V
Wiring Anti-reverse connection
Ethernet Ports Specification 2CH RJ45, 10/100Mbps, adaptive MDI/MDIX
Protection ESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
Serial Ports QTY 2CH RS485 or RS232
Baud Rate 2400bps-115200bps
Data Bit 7, 8
Parity Bit None, Even, Odd
Stop Bit 1, 2
Protection ESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
SIM Card Slot QTY 1
Specification Drawer type slot, support 1.8V/3V SIM/UIM card (NANO)
Protection Built-in 15KV ESD Protection
USB Ports QTY 1CH program downloading, 1CH program debugging
Specification Micro USB OTG
Protection Over Current Protection
4G(Optional) Antenna QTY 1
Antenna type SMA
L-E GSM/EDGE:900,1800MHz
WCDMA:B1,B5,B8
FDD-LTE:B1,B3,B5,B7,B8,B20
TDD-LTE:B38,B40,B41
L-CE GSM/EDGE:900,1800MHz
WCDMA:B1,B8
TD-SCDMA:B34,B39
FDD-LTE:B1,B3,B8
TDD-LTE:B38,B39,B40,B41
L-A WCDMA:B2,B4,B5
FDD-LTE:B2,B4,B12
L-AU GSM/EDGE:850,900,1800MHz
WCDMA:B1,B2,B5,B8
FDD-LTE:B1,B3,B4,B5,B7,B8,B28
TDD-LTE:B40
L-AF WCDMA:B2,B4,B5
FDD-LTE:B2,B4,B5,B12,B13,B14,B66,B71
CAT-1 GSM:900,1800
FDD-LTE:B1,B3,B5,B8
TDD-LTE:B34,B38,B39,B40,B41
GPS(Optional) Antenna QTY 1
Antenna type SMA
Tracking sensitivity > -148 dBm
Plane position accuracy 2.5m
Protocol NMEA-0183 V2.3
WiFi(Optional) Antenna QTY 1
Antenna type SMA
Protocol 802.11a/b/g/n(mixed)
Mode Client mode
Signal path 2.4G Channel 1 - 13, 5G Channel 36 - 165
Security Open, WPA, WPA2
Encryption AES, TKIP, TKIPAES
Speed 150Mbps(Max)
Transmission distance Outdoor open area, up to 20 meters
SSID Support
Indicator PWR Always on when device powered on
Off when device lose power
RUN Flickering when system running
Off when system shutdown
LINK Flickering when Ethernet communication; Always on when 4G or WiFi communication; OFF when Ethernet, 4G, WiFi are all disconnected.
Software Internet Protocol IPV4, TCP/UDP, DHCP, DNS
IP Retrieving Static IP/DHCP
Transmission Support Transparent Transmission
DNS Support Domain Name Resolution
Configuration PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10
Internet Cache Transmitting: 8Kbyte; Receiving: 8Kbyte
Login Package Support custom login package
Heartbeat Package Support custom heartbeat package
Safety Certification MTBF ≥100,000 hours
EMC EN 55022: 2006/A1: 2007 (CE &RE) Class B

IEC 61000-4-2 (ESD) Level 3

IEC 61000-4-4 (EFT) Level 3

IEC 61000-4-5 (Surge)Level 3
Others CE, RoHS, FCC
Environment Working -40~55ºC, 5~95% RH
Storage -40~70ºC, 5~95% RH
Others Shell Plastic
Dimension 30mm×83mm×110mm(LxWxH)
IP Grade IP30
Net Weight 133g
Installation DIN-Rail Mounting, Wall-Mounting

Company Profile

Shenzhen Beilai Technology Co., Ltd. specialized in Industrial Ethernet I/O Modules, IoT Gateways, 4G RTU, 4G Industrial VPN Routers, Industrial Computer. OEM ODM services offered.
