Home > Instruments & Meters > Test Instrument > Test Machine > Flash Fire Point Apparatus Fully Automatic Closed Cup Flash Point Tester

Flash Fire Point Apparatus Fully Automatic Closed Cup Flash Point Tester

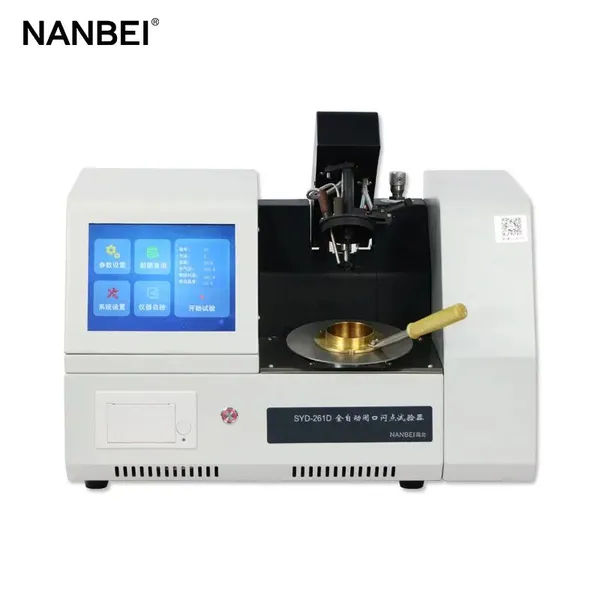

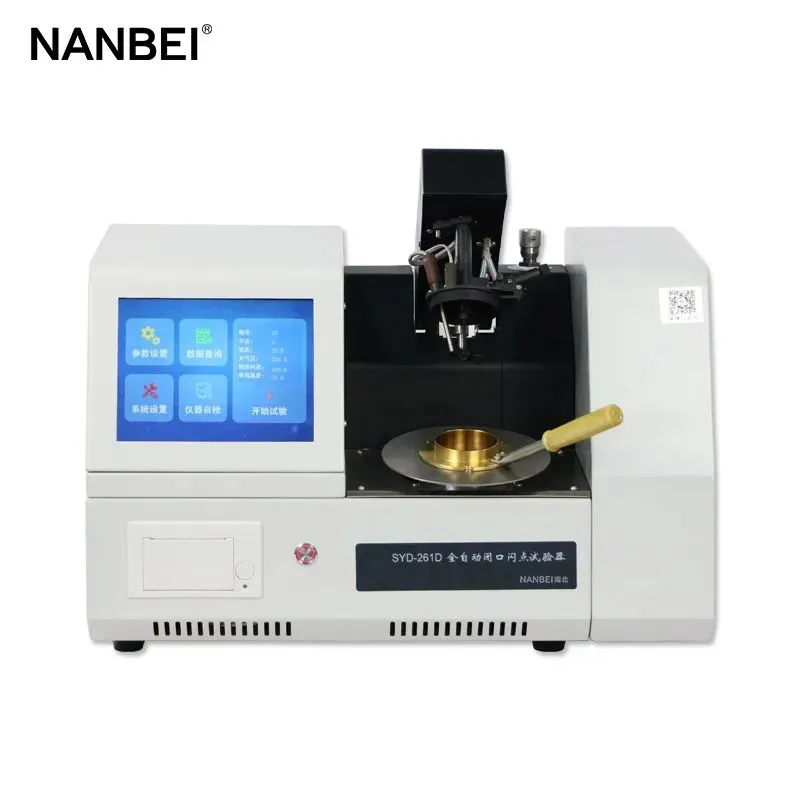

Flash Fire Point Apparatus Fully Automatic Closed Cup Flash Point Tester photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Model Number:
SYD-261D
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name NANBEI
Place of Origin China
Model Number SYD-261D
Power Electronic
Usage Auto Testing Machine

Fully-automatic closed-cup flash point tester for petroleum products

Summary

This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.

Features

1. It adopts LCD screen to display. Full English man-machine dialog interface. It can preset the parameters of expected flash point,sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type.

2. It adopts simulation tracking display the function curve of temperature rising and test time.It has prompt functions of English mis-operation,test date and test time.

3. It is equipped with standard RS-323,485 computer port.The lower computer can save 100 groups of historical data. The test data can be saved for a long time, transmitted and modified if the instrument being connected with computer.

Specification

Power supply
AC(220±10%)V,50Hz
Range
Ambient to 300℃
Repeatability
≤3℃
Reproducibility
≤6℃
Accuracy
0.1℃
Heating rate Procedure A
(5~6)℃/min, Procedure B: (1~1.6)℃/min
Automatic control and manually adjustable
Stirring rate:Procedure A
 (90~120)RPM, Procedure B: (250±10)RPM
Automatic control and manually adjustable.
 Igniting mode
Electric ignition. Gas flame diameter:3.2mm~4.8mm
Working condition
Ambient temperature:(10~40)℃
Maximum power consumption
500W
Dimension
520mm×360mm×310mm


Product Tags: Flash Fire Point Apparatus , Flash Point Tester , Flash Point Determination System , Closed Cup Flash Point Tester , Open Cup Flash Point Tester , Auto Flash Point Tester
