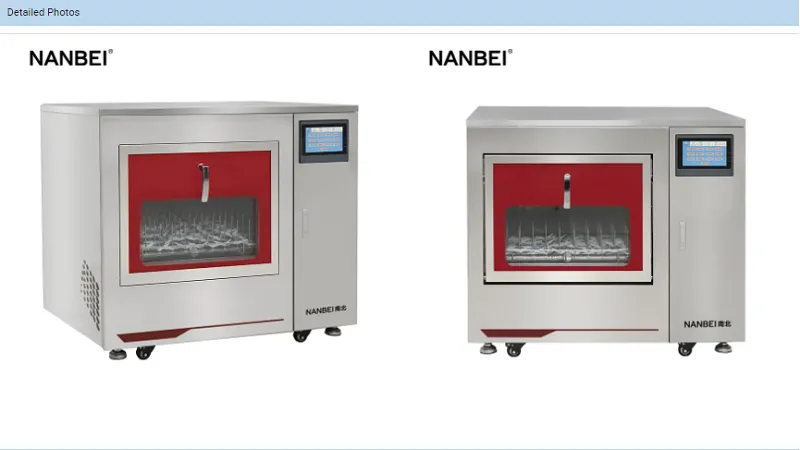

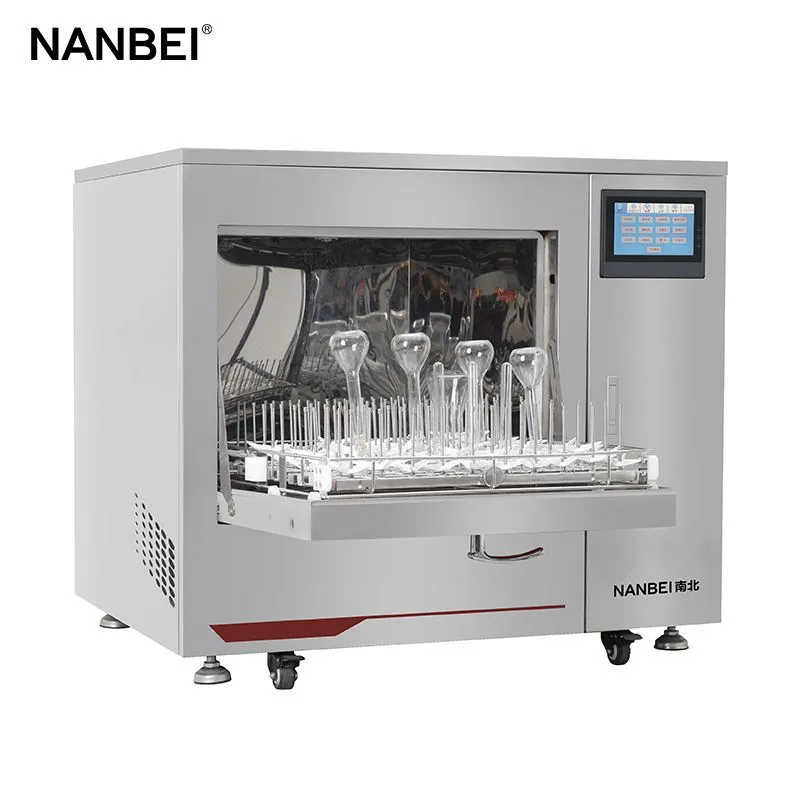

Lab Automatic Bottle Washer Glassware Cleaning Drying Machine
Description：
The fully automatic utensil cleaning machine NBLW-120 has a patented technology TWINS cleaning and drying system,
which realizes the in-situ cleaning and drying of utensils. It uses European imported high-efficiency circulating pumps,
and the cleaning pressure is stable and reliable; the cleaning positions are designed according to the principle of fluid
mechanics to ensure that each piece The cleanliness of the item cleaning; the optimized design of the rotating spray
arm of the flat nozzle to ensure that the spraying 360° has no dead angle coverage; the oblique incision on the side of
the cleaning column ensures 360° cleaning and coverage of the inner wall of the vessel, etc.
Application:
The automatic utensil cleaning machine NBLW-120 is suitable for various laboratories such as pharmaceutical companies, disease control systems, scientific research institutes, environmental protection, water systems, hospitals, petrochemical systems, power systems, etc. Washing and drying of tubes, flasks, volumetric flasks and other utensils.
Advantages
Meaning of automatic cleaning
1. NBLW-120 can standardize cleaning treatment to ensure uniform cleaning effect and reduce uncertain factors
caused by human operation.
2. Easy to verify and keep records, easy to trace management.
3. Reduce the risk of staff and avoid personnel injury or infection during manual cleaning.
4. The cleaning, disinfection, and drying are completed automatically, which reduces equipment and labor input
and saves costs.
Features:
The fully automatic utensil cleaning machine NBLW-120 has a patented TWINS cleaning and drying system
to realize in-situ cleaning and drying of utensils. The cleaning chamber is made of SUS316L and the shell
is made of SUS304.
High cleanliness
1. High-efficiency circulating pump imported from Europe, stable and reliable cleaning pressure;
2. Design and arrange the cleaning positions according to the principle of fluid mechanics to ensure the cleanliness
of each item;
3. Optimized design of the rotating spray arm of the flat nozzle to ensure that the spray 360° has no dead angle
coverage;
4. The oblique cut on the side of the cleaning column ensures 360° cleaning and coverage of the inner wall of the
vessel;
5. The height-adjustable bracket ensures the effective cleaning of utensils of different specifications;
6. Double water temperature control to ensure the entire cleaning water temperature;
7. The cleaning fluid can be set and added automatically;
Efficient drying
1. In-situ drying system
2. Built-in HEPA high efficiency filter to ensure the cleanliness of dry air;
3. Simultaneously dry the water circulation pipeline to avoid the pipeline damp and pollute the cleaning system;
4. Double temperature control to ensure the drying temperature;
Operation management
1. PLC (programmable controller) control system, stable and reliable;
2. The cleaning procedures can be freely combined and used according to needs;
3.7-inch color LCD touch screen, all text display of equipment operation information;
4.3 level password management, which can meet the use of different management authority;
5. Equipment failure self-diagnosis and voice and text prompts;
6. Automatic storage function of cleaning data (optional);
7. USB cleaning data export function (optional);
8. Micro printer data printing function (optional);
Protective function
1. Two-point electronic door lock to prevent random opening;
2. Double temperature protection of water temperature and air temperature;
3. Circulating pump high temperature automatic protection;
4. Power-off protection function;
5. The water seal design of the drainage pipeline prevents backflow of sewage;
Cleaning program
1. Standard procedure: to meet the cleaning of general contaminated utensils;
2. Quick cleaning procedure: to meet the cleaning of lightly contaminated utensils;
3. Custom cleaning procedures: According to different cleaning needs, users can customize combined cleaning
procedures;
4. Self-cleaning cleaning procedure: you can choose to clean the circulating pipeline and the scale that may remain
in the inner cavity on a regular basis;
5. Drying procedure: equipped with a high-performance drying system, which can quickly complete the drying and
cleaning of various instruments;6. Manual test procedure: to meet the user's water sample testing and cleanliness rate, as well as the running status
of each component of the self-checking equipment.
Parameters
| Model | NBLW-120 | Effective volume(L) | 120 |
| Dimensions(W*D*H)mm | 980*740*870 | Inner size(W*D*H)mm | 600*629*465 |
| Voltage(V/Hz) | 220/50-60 | Water circulation flow(L/min) | 430(European imports) |
| Water heating power(KW) | 5 | Dry running power(KW) | 2.1 |
| Maximum operating power(KW) | 6 | Water consumption/circulation(L) | 15 |
| Noise(dBa) | Water inlet pressure(Mpa) | 0.3-1.0 |
Optional racks
| Model | Cleaning rack name | The maximum number of layers that can be placed at a time |
| CWIR60 | 60-Position Syringe Cleaning Rack | 1 |
| CWIR120 | 120-Position Syringe Cleaning Rack | 1 |
| CWIR36 | 36-Position Syringe Cleaning Rack | 1 |
| CWPDR9070U | Upper Petri Dish Washing Rack | 1 |
| CWPDR9070L | Lower Petri Dish Washing Rack | / |
| CWRTR20 | 20-Position Hose Washing Rack | / |
| CWPR60 | 60 displacement liquid tube cleaning rack | 1 |
| CWIR20 | 20-Position Syringe Cleaning Rack | 1 |
| CWIR222 | 222-Position Vial Wash Rack | 1 |
| CWBR01 | Beaker cleaning rack | 1 |
