Medical Sterilization Equipments Ethylene Oxide Sterilizer ETO Sterilizer

Medical Sterilization Equipments Ethylene Oxide Sterilizer ETO Sterilizer thumbnail-1
Medical Sterilization Equipments Ethylene Oxide Sterilizer ETO Sterilizer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Model Number:
HTY10
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NANBEI
Place of Origin China
Model Number HTY10

ETO Gas Sterilizer Ethylene Oxide Sterilizer

Application & Usage :

Medical Supplies:Syringe, Infusion Set, Surgical Gloves, all kinds of Rubber Infusion Catheter, Oxygen devices, Suture, Anesthesia supplies Sanitary napkins, Medical dressing.

Medical Devices:Optical endoscopic, Pacemakers, In stent, Surgical instruments, patient's bedding, etc.

Feature :

The HTY10 cubic ethylene oxide sterilization cabinet is automatically controlled by a LCD color screen PLC microcomputer, and is divided into a computer control system, a vacuum sterilization chamber system, a constant temperature system, and a residual gas treatment system. When using it, you only need to press the run button twice to achieve ★ automatic heating, ★ vacuum, ★ humidification, ★ vaporization, ★ sterilization, ★ residue removal, ★ ethylene oxide residue automatic analysis ★ memory function and other complexities The process is very convenient and safe, with 100% sterilization. This product has unique advantages for the sterilization and disinfection of moisture-sensitive and heat-sensitive articles. At present, it is widely used in the fields of medical and health, industry, foreign trade, commerce, banking, archaeology, archaeological archives management and cultural relics management.

Specifications

Model
HTY10
Rated power
14kw
Liner specification length * width * height (CM)
4000*1500*1800
Carton size length * width * height (CM)
5000*1900*2300
Work pressure
0KPa-60KPa
Working humidity
20‰-90‰
Operating temperature
45℃-60℃
Sterilization time
1‐99h
Liner material
304 stainless steel
Outer box
304 stainless steel
Disabled times
0-50 times adjustable





Sterilizer combination materials and functions
The sterilization room adopts 304 imported stainless steel three-layer temperature control protection
Double protective door
Outer box 1.2mm high quality steel plate
Automatic computer control of the sterilization process
Leak detection function
All over the water temperature control system of the whole machine
Humidification system to increase sterilization effect
The analysis system of ethylene oxide and water vapor at the end of sterilization ensures the safety of operators
Use a single bottle of pure ethylene oxide for filling
Sterilization purpose
Sterilize items that are not resistant to temperature, heat and humidity
Sterilization method
100% ethylene oxide gas
Action valve
Pneumatic valve
Liner equipment
Stainless steel equipment and high-quality aluminum alloy
heating method
Electric heating film for uniform heating
Printing system
During the sterilization process, a micro printer is used to print and save the entire sterilization process



Performance description
Negative pressure working system
Dual pressure control system
Power-off memory function
Accurate control of humidification water consumption, built-in humidity sensor
Forced ventilation, removing residue device

Safety measures
Safety automatic detection function
Dual temperature protection function
Door safety interlocking device

way to control
PLC automatic control liquid crystal display working status and operation
Ventilation time 3.9-99h
With automatic fault detection, alarm and fault system
Troubleshooting
With automatic fault detection, fault code content display alarm,
Fault sound alarm and fault printing system
Power supply
380v 50hz

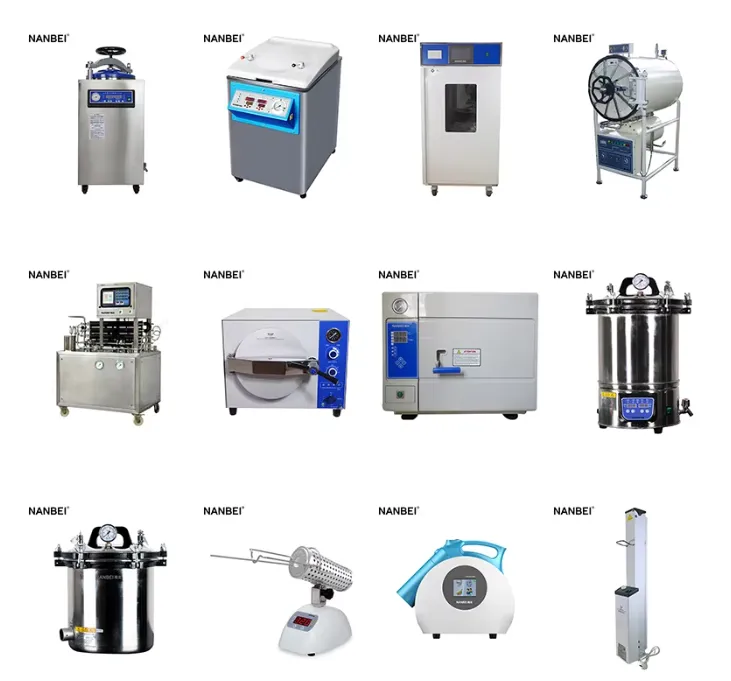

Other type sterilizers
