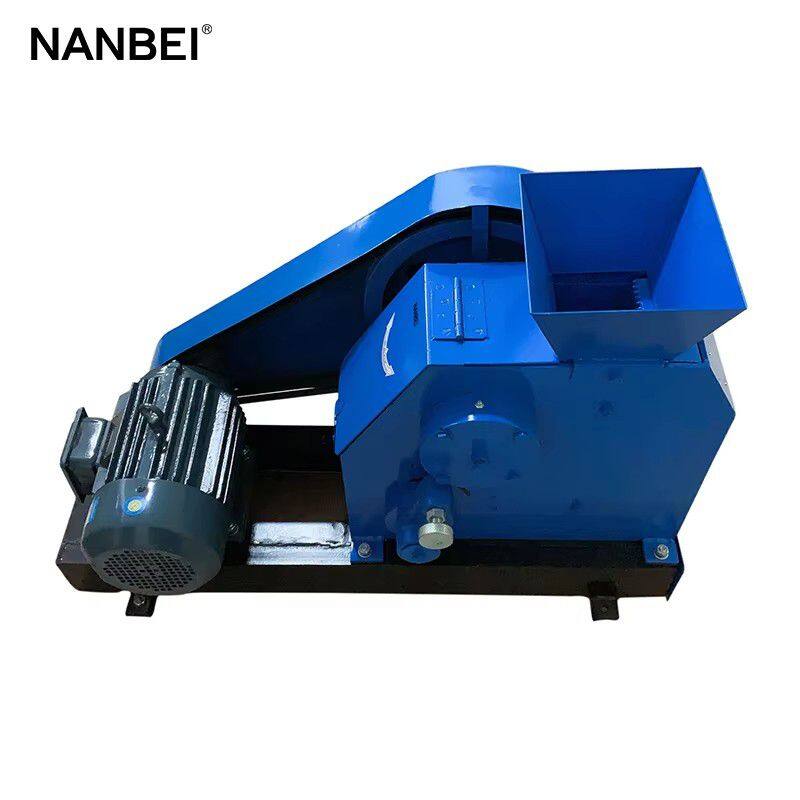

Environmental 150*125 Laboratory Jaw Crusher
Applications:
Laboratory Sealed jaw crusher is mainly used in the laboratory, the raw material of the medium and fine crushing,
such as coal, gangue, limestone, pyrite, Jiao Tan.
The crusher is curved extrusion type. 10to60 mm crushed material should be less than the maximum block size
selection of machine type material outlet size. Broken compressive strength of the material does not exceed 100MPa.
It can break the different hardness materials.
This machine has reasonable design, simple structure, less parts, convenient repair, simple operation. Without dust
leakage, stable performance, low noise, improve the working environment and conditions of sample preparation,
it is the ideal equipment for sample preparation equipment upgrading.
Widely used in electric power, metallurgy, chemical, geological and other industries, can also be used for other
industries material specimen preparation crushing.
The function of coarse crushing, crushing compressive strength up to 24kg/cm2 all kinds of ores and raw materials; big crushing ratio, uniform particle size; the partical size is adjustable; the sealing type effectively avoid overflow of dust in the crushing process, no environmental pollution, beneficial to the health of operating staff.
Technical data
Model |
Negative suspension 100×60 |
100×60E |
Negative suspension 100×100 |
Negative suspension 100×125 |
Negative suspension 150×125 |
Inlet size |
100×60mm |
100×60mm |
100×100mm |
100×125mm |
150×125mm |
Feed particle |
≤50mm |
≤50mm |
≤80mm |
≤100mm |
≤120mm |
Grain size |
0.1-15mm |
0.1-15mm |
1-25mm |
2-35mm |
4-45mm |
output |
45-550kg/h |
45-550kg/h |
60-850kg/h |
300-2000kg/h |
500-3000kg/h |
Spindle speed |
1400r/min |
1400r/min |
1400r/min |
1400r/min |
1400r/min |
Auxiliary power |
1.5kw |
1.5kw |
2.2kw |
3kw |
3kw |
