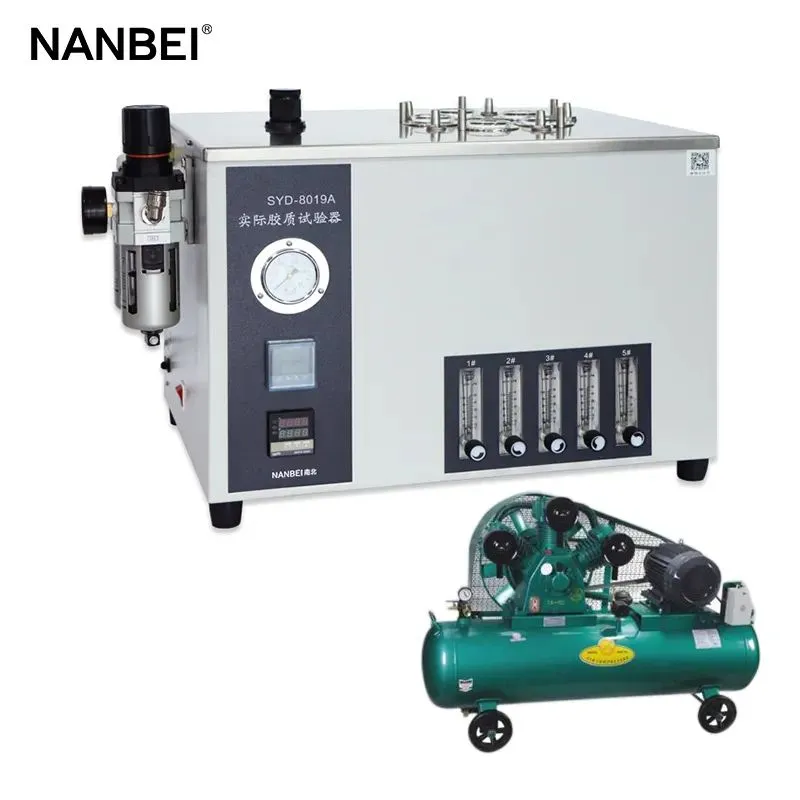

SYD-8019A Laboratory Existent Gum Tester With 5 Sample Positions

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NANBEI		Place of Origin	China
Model Number	SYD-8019A		Power	Electronic

Existent Gum Tester for Petroleum

Summary

This instrument is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by

jet evaporation and ASTM D381 Standard test method for gum content in fuels by jet evaporation. It is suitable to

determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent

gum content of aviation turbine fuel)

Main technical features

1. It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is

good.

2. The material of working bench is stainless steel. It has 5 sample holes. Each jet flow can be adjusted and controlled

by an independent flowmeter. It can do 1 ~ 4 determinations at the same time.

3. The instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it

meet requirements of standard.

4. Each test hole equips unique flowmeter. It can control the hot-air flow rate of each test hole correctly.

5. The instrument is equipped with an oil-water separator to prevent oil gas and water vapor from entering the

instrument.

Specifications

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	China
	Henan
Brand Name	NANBEI
Model Number	NB-8019A
Power	700w
Product name	Existent Gum Tester
Dimension of evaporation bath	260mm*130mm
Sample positions	5 positions
Dimension of sample position	51mm*70mm
Working temperature	(160~165)℃
Temperature control method	Automatic
Temperature display	Float ball type
Working pressure of reducing valve	0.07MPa
Air flow rate of jet outlet	600mL/s for each hole
Overall dimension	590mm480mm340mmm
