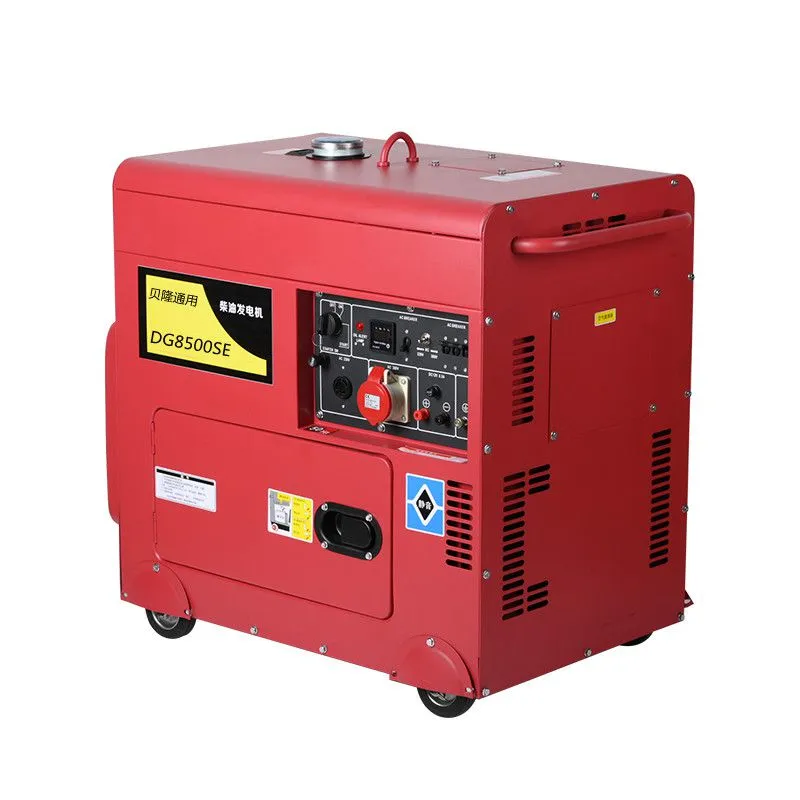

Low Noise 6kW 380V Three Phase Silent Diesel Generator
Product Spotlights
1.380V three phase stable output for construction equipment
2. Mute housing design, low running noise
3. Pure copper alternator with full safety protection
4. Compact structure, easy to move and maintain
2. Mute housing design, low running noise
3. Pure copper alternator with full safety protection
4. Compact structure, easy to move and maintain
US$ 640 - 650
MOQ: 20 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 Year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
6kw Single Phase 220v Diesel Generator 192F Diesel EngineUS$ 510 - 520MOQ: 10 Sets -
18kw Three Phase 380v Silent Diesel Generator 2V105F Diesel EngineUS$ 2500 - 2600MOQ: 10 Sets
-
Emergency 8KW Dual Power Silent Inverter Diesel GeneratorUS$ 720 - 750MOQ: 1 Set
-
9kw Single Phase 220v Water-cooled Diesel GeneratorUS$ 1550 - 1600MOQ: 10 Sets
-
9kw Three Phase 380v Water-cooled Diesel GeneratorUS$ 1600 - 1650MOQ: 10 Sets
Type
Basic Diesel Generator
Warranty
1 Year
Stroke
Four Stroke
Usage
Common Units, Standby Unit, Emergency Crew
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
Send parts with next order
Installation Method
Portable
Excitation Mode
Other, Self-excited
Conditions of Use
Land Use
Landuse Type of Unit
Low Noise
Output Type
AC Three Phase
Transport Package
Carton
Specification
DG8500SE-3
Trademark
Belon Power
Origin
Chongqing, China
| Model | DG8500SE-3 |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220/380.230/400.240/415 |
| Rated Power( KW) | 6 7 |
| Max. Power(KW) | 6.5 7.5 |
| Rated Output Current（A ) | 8.6 10 |
| DC Output | 12V 8.3A |
| Phase | Three Phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 192FE |
| Start Method | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 92 * 75 |
| Displacement | 0.499 |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 7.5 8.2 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤280 ≤290 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 910*525*780 |
| Packing Size [mm] (L*W*H) | 940*540*900 |
| Net Weight/Gross Weight[Kg] | 160/167 |
