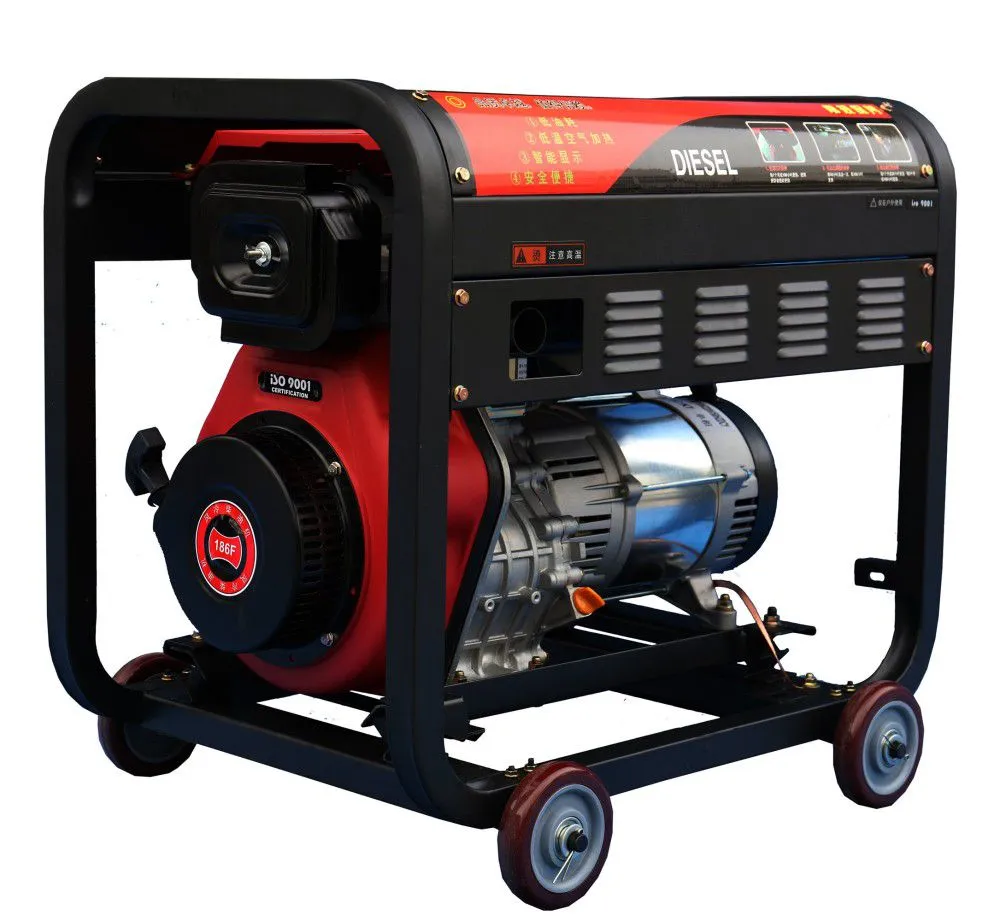

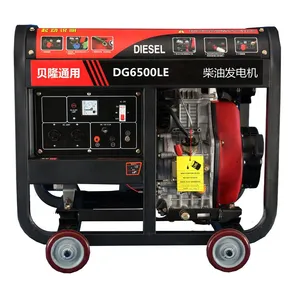

4.5KW Three Phase 380V Open Frame Diesel Generator With 186FA Engine & Pure Copper Motor
Product Spotlights
This 4.5KW diesel generator is equipped with durable 186FA diesel engine, with low fuel consumption, low failure rate and long service life. Adopts 100% pure copper motor, which provides stable three-phase 380V voltage output, no voltage surge and strong load capacity. Open frame design realizes fast heat dissipation and easy daily maintenance. Compact body for easy movement. Widely used in construction sites, home backup power, farm and outdoor temporary power supply.
US$ 460 - 470
MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 Year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
4.5kw Dual Power Diesel Generator 186FA Diesel EngineUS$ 490 - 500MOQ: 10 Sets -
4.5KW Single Phase 220V Silent Diesel Generator With 186FA EngineUS$ 540 - 550MOQ: 10 Sets
-
4.5kw Three Phase 380v Silent Diesel GeneratorUS$ 575 - 585MOQ: 10 Sets
-
4.5kw Dual Power Silent Diesel GeneratorUS$ 600 - 610MOQ: 10 Sets
-
5kw Single Phase 220v Diesel Generator 188F Diesel EngineUS$ 400 - 410MOQ: 10 Sets
Type
Basic Diesel Generator
Warranty
1 Year
Stroke
Four Stroke
Usage
Common Units
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
Send parts with next order
Installation Method
Portable
Excitation Mode
Other, Self-excited
Conditions of Use
Land Use
Landuse Type of Unit
Ordinary
Output Type
AC Three Phase
Transport Package
Carton
Specification
DG6500LE-3
Trademark
Belon Power
Origin
Chongqing,China
4.5KW Three Phase 380V Open Frame Diesel Generator
with 186FA Engine & Pure Copper Motor
| Model | DG6500LE-3 |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220/380.230/400.240/415 |
| Rated Power( KW) | 4.5 5.0 |
| Max. Power(KW) | 4.5 5.0 |
| Rated Output Current（A ) | 6.5 7.2 |
| DC Output | 12V 8.3A |
| Phase | Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 186FA |
| Start Method | Electric start |
| Engine Type | Single cylinder,4 stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 86*72 |
| Displacement | 0.418L |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 5.8 6.6 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤275 ≤280 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | R720*485*615/25mm S700*485*600/ 35mm S 740*505*620 |
| Packing Size [mm] (L*W*H) | R740*500*635/25mmS 710*500*620/ 35mmS760*515*630 |
| Net Weight/Gross Weight[Kg] | R106/25mm S112/35mmS118 R109/25mmS/115/35mm S121 |
