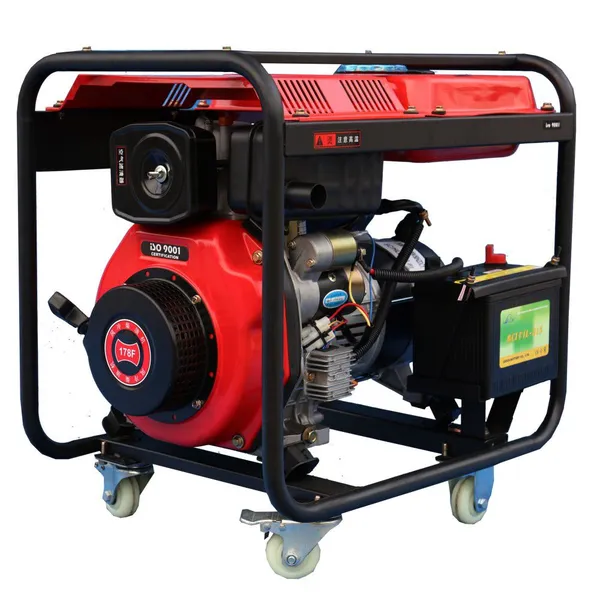

3kw portable diesel generator electric start 178F diesel engine

Name: 3kw portable diesel generator electric start 178F diesel engine
Availability: InStock

FOB Price

US$ 370 - 380 / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Model	DG4500LE
Frequency[Hz]	50 60
Voltageg[V]	110/220.115/230.120/240
Voltageg[V]	110/220.115/230.120/240
Rated Power( KW)	2.8 3.3
Max. Power(KW)	3 3.5
Rated Output Current（A )	12 14
DC Output	12V 8.3A
Phase	Single phase
Excitation Method	Brush self-excitation
Power FactorΦ	1.0(0.8)
Insulation Class	F
Fuel Tank Capaciity[L]	12.5L
Engine Model	178FE
Start Method	Electric start
Engine Type	Single cylinder、4 stroke、Air-cooled、Vertical
Bore*Strokke[mm]	78*62
Displacement	0.296L
Compression Ratio	19.5：1
Speed[rpm]	3000
Power [Kw]	3.7
Oil Capacity[L]	0.75
Fuel Consumption[g/kwh]	≤270 ≤275
Fuel No.	Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter.
Oil No.	SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil)
Optional	ATS
	Remote Control
	Intelligent digital display panel
Size [mm] (LWH)	660470565
Packing Size [mm] (LWH)	680480590
Net Weight/Gross Weight[Kg]	81.7/84.1
