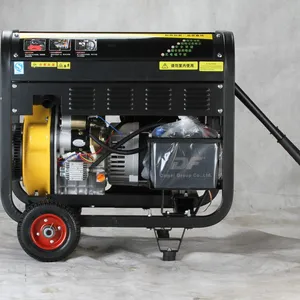

6kw single phase 220v diesel generator 192F diesel engine

Name: 6kw single phase 220v diesel generator 192F diesel engine
Availability: InStock

FOB Price

US$ 510 - 520 / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Model	DG8500LE
Frequency[Hz]	50 60
Voltageg[V]	110/220.115/230.120/240
Voltageg[V]	110/220.115/230.120/240
Rated Power( KW)	6.3 7.3
Max. Power(KW)	6.8 7.8
Rated Output Current（A )	27.4 31.7
DC Output	12V 8.3A
Phase	Single phase
Excitation Method	Brush self-excitation
Power FactorΦ	1.0(0.8)
Insulation Class	F
Fuel Tank Capaciity[L]	12.5
Engine Model	192FE
Start Method	Electric Start
Engine Type	Single cylinder,4-stroke,air-cooled, vertical
Bore*Strokke[mm]	92 * 75
Displacement	0.499
Compression Ratio	19.5：1
Speed[rpm]	3000 3600
Power [Kw]	7.5 8.2
Oil Capacity[L]	1.65
Fuel Consumption[g/kwh]	≤280 ≤290
Fuel No.	Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter.
Oil No.	SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil)
Optional	ATS
	Remote Control
	Intelligent digital display panel
Size [mm] (LWH)	R720485615/25S700485600/ 35S740505620
Packing Size [mm] (LWH)	R740500635/25S710500620/ 35S760515630
Net Weight/Gross Weight[Kg]	R115/25S121/35S125 S118/25S/124/35S128
