Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Marking Machine > Handheld 20w Metal Steel Rubber Tire Logo With LCD Fiber Laser Engraver

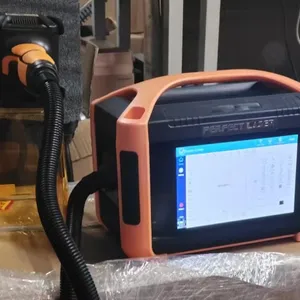

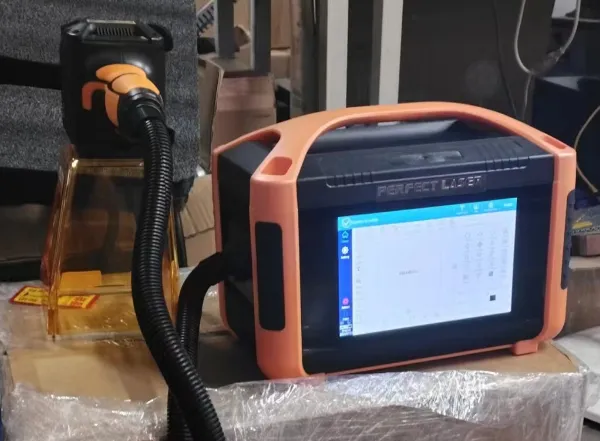

Handheld 20w Metal Steel Rubber Tire Logo With LCD Fiber Laser Engraver
US$ 1500 - 1900
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Perfect Laser
Place of Origin:
China
Model Number:
PEDB-160 Orange
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
7 days
Related Products
-
Handheld 50w Metal Steel Rubber Tire Logo Fiber Laser EngraverUS$ 2900 - 3400MOQ: 1 Unit -
20w Desktop Fiber Laser Engraver for Metal and Plastic Tag Logo Letter Number Pattern MarkingUS$ 1500 - 1900MOQ: 1 Unit
-
20w Desktop Fiber Laser Engraver for Metal and Plastic Tag With ComputerUS$ 1900 - 2500MOQ: 1 Unit
-
Auto Focusing 20w Desktop Fiber Laser Engraver for Metal and Plastic Tag Logo Number MarkingUS$ 1900 - 2400MOQ: 1 Unit
-
20w Floor Type Metal Fiber Laser Engraver With Computer and TableUS$ 1400 - 1900MOQ: 1 Unit
Brand Name
Perfect Laser
Place of Origin
China
Model Number
PEDB-160 Orange
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Power(W)
20w
Graphic Format Supported
AI, DXF, PLT
Control Software
Perfect Laser
Cooling Mode
Air Cooling
CNC or Not
Yes
Laser Type
Fiber Laser
Features:
1. High-hardness engineering-grade plastic machine body ensures that the body is not easily exposed to water and dust in various production environments.
2. The integrated structure of the handheld laser marking machine is small and compact, with friendly man-machine dialogue interface, and the operation is simple and easy to use.
3. It uses a two-dimensional magnetic levitation galvanometer laser scanning head, which is small in size, fast in speed and accurate in positioning.
4. The laser source has a long service life and is maintenance-free.
5. Highly sensitive touch screen, intelligent red light positioning, powerful system function, high efficiency, high speed and stability.
6. The plane and slope surface can be marked. It can be moved anytime, anywhere.
7. Any content of letters, numbers, date, Logo, picture, QR code, barcode can be marked.
8. This portable laser marking machine has 6 - 8 hours super long standby time.
Technical Data
| Product Name | Handheld Portable Fiber Laser Marking Machine |
| Model No. | PEDB-160 |
| Machine Material | Engineering Plastic |
| Laser type | Fiber Laser |
| Laser Power | ≥20W |
| Laser Wavelength | 1064nm |
| Marking Method | High-precision 2D Scanning Method |
| Marking Speed | ≤7000mm/s |
| Main Control Board | Highly integrated main board with embedded 7-inches screen |
| Operating System | Linux |
| Cooling Method | Air Cooling |
| Marking Line Type | Dot matrix + Vector all-in-one machine |
| (both dot matrix and vector) | |
| Mirror Size | 8.5mm |
| Marking Area | 50mmx50mm (Standard Marking Area) |
| 100mmx100mm (Optional Marking Area) | |
| Position Method | Red light positioning |
| Marking Speed | 650 characters/second |
| (the specific speed is related to the material & marking content) | |
| Font Support | English / Korean / Russian / Arabic / Chinese |
| numerals and other standard fonts | |
| (only choose one of above) | |
| File Format | BMP / DXF / HPGL / JPEG / PLT |
| Barcode/QR code | CODE39 / CODF128 / CODE126FAN13 / PDF417 / 01CODFOR / AZTFCCODF/ DM / GS1DM / DOTCODE / HANXINCODE |
| Power Supply | 220V Plug In Mode |
| Maximum Power Consumption | ≤300W |
| Battery Fully Charged Time | No |
| Battery Continuous Working Time with Full Power | No |
| Net Weight | 6 kgs |
| Temperature | 0-40℃ |
| Ambient Relative Humidity | 30%-85% RH |
| Training & After Sales Service | VCD training + 24 hours after-sales service |
| Warranty | 36 month for fiber laser source |
| 24 month for whole machine |
