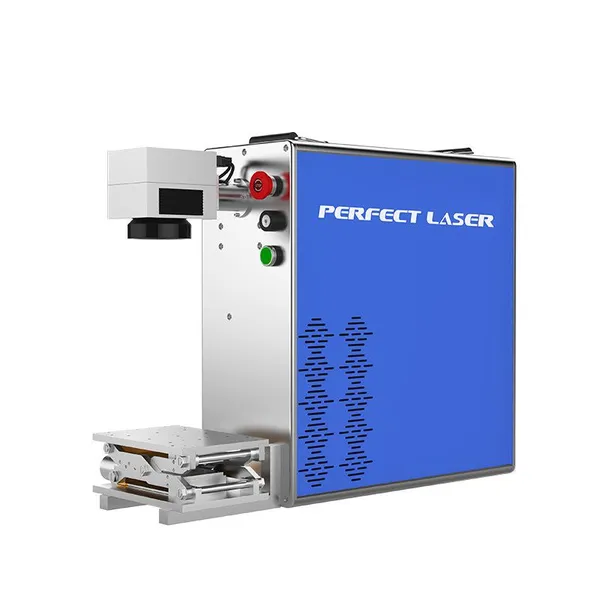

Help Center30w Desktop Fiber Laser Engraver for Logo Parts Batch Number Printing
Related Products
-
30w Online Flying Fiber Laser Coding Expire Date Wire Number Printing MachineUS$ 3400 - 3900MOQ: 1 Unit -
50w 300x400mm Large Size Fiber Laser Engraver for Metal and PlasticUS$ 7200 - 7700MOQ: 1 Unit
-
300w 900x600mm Safety Closed Large Size Fiber Laser Engraver for Metal and PlasticUS$ 22900 - 23400MOQ: 1 Unit
-
Floor Type 20w Fiber Laser Engraver With Conveyor for Gift Pen Logo MarkingUS$ 2800 - 3300MOQ: 1 Unit
-
30w Economic Online Flying Fiber Laser Coding Expire Date Wire Number Printing MachineUS$ 3400 - 3900MOQ: 1 Unit
Features:
1. Best Marking Effect: The laser beam of color laser marking machine is fine and thin. Fiber laser color marking can provide the better marking effect among all the laser machines. Especially good at smallest character marking on mental. When do fiber laser color marking, only stainless steel material is acceptable.
2.Deep Marking:Perfect Laser’s color laser marking machine can engraving stainless steel and make deep marking up to 1.0mm on stainless steel and aluminum While YAG and Diode marking only could mark 0.2mm-0.3mm.
3. Higher Accuracy: The fiber laser color marking machine can reach unto 0.001mm precision, while diode only 0.01mm.
4. 10 Years Long lifetime: Adopt the technology from Germany IPG, the fiber laser sources lifespan can reach 100,000 hours, enable this colorful stainless steel marking machine to be used for 8-10 yeas.
5. No consumables: The color laser marking machine can be used for 8-10 years and almost no need of any consumables.
6. No need to adjust the laser path.
7. Free of Maintenance.
8. Use Integrated Air Cooling.
9. Small and compact: the volume of Perfect Laser’s colorful laser marking machine is small, only 0.15 M3.
Technical Data:
Laser source |
Pulsed, High Energy Ytterbium Fiber Lasers |
|||
Mode of operation |
Pulsed |
|||
Polarization |
random |
|||
Standard output power |
30W |
|||
Central emission wavelength |
1060-1070 nm , Q-switched operation Output power adjustment range 10%-100% |
|||
|
Emission Bandwidth (FWHM) |
||||
Long-term average power instability |
||||
Pulse width, (FWHM) |
100 ns |
|||
Laser switching ON time |
180 μsec |
|||
Laser switching OFF time |
180 μsec |
|||
Pulse Repetition Rate* kHz |
20-80 kHz |
|||
Energy per pulse (PRR = 20 kHz) |
0.95 mJ |
|||
Typical beam quality, M2 |
||||
Output fiber delivery length |
3m |
|||
Operating voltage |
220V |
|||
Max. Power consumption |
600W |
|||
Laser system | ||||
Scanning Speed |
0-10000mm/s |
|||
Marking Speed |
0-7000mm/s |
|||
Marking size |
110mm×110mm (F-theta 160) |
|||
Spot size |
≤ 40 micron (F-theta 160) |
|||
Cooling unit |
Air cooled |
|||
Pilot laser |
650nm diode laser, visible red light for marking guide |
|||
Continuous working time |
≥16h |
|||
Humidity |
45～85% (no condensation) |
|||
Operating temperature |
0~40℃ |
|||
