Features:

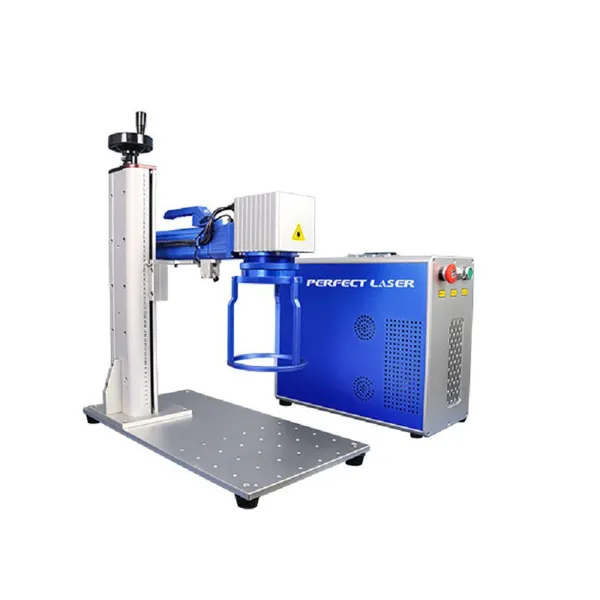

1. Compact and portable model: the handheld laser marking machine is small size, light weight and easy to carry.
2. Desktop hand-held dual-use design: with liftable column, air-cooling system, simple and beautiful appearance, fixed bracket can be removed to meet a variety of marking needs.
3. High performance digital oscilloscope scanning system and focusing system, fast speed and high precision.
4. Stable laser beam: good laser stability, low loss, not affected by external dust and mechanical loosening, stable beam.
5. Maintenance-free laser, no consumables, no need to adjust or clean the lens either; processing speed is 2-3 times faster than traditional handheld laser marker.
6. Good spot quality, high peak power, good marking effect can be achieved under the same material.
7. Powerful software, compatible with CorelDRAW, AutoCAD, Photoshop and other software, supports PLT, DXF, BMP, JPEG formats, can directly use SHX, TTF font; supports automatic coding, printing serial number, batch number, date, bar code, QR code, automatic number skipping, etc.
8. The handheld laser marker can process a wide range of metal and non-metal materials, especially for high hardness, high melting point and brittle materials to mark more advantageous.
9. No damage to the product, no tool wear, good marking quality.
10. 24 hours continuous intelligent marking, long life.
Technical Data:
Laser Marker Model | PEDB-400G |
Type | Handheld+Desktop |
Computer | Not includes PC |
Laser Source | |
IPG Series | Pulsed, high energy ytterbium doped fiber laser |
Operating Mode | Pulsed |
Polarization | Random |
Average output power | 20W - 50W |
Central emission wavelength | 1064 nm, Q switch operation Output power |
Transmit bandwidth(FWHM) | <10nm |
Long-term average power instability | <5% |
Pulse width (FWHM) | 100ns |
Laser connection time | 180 microseconds |
Laser disconnect time | 180 microseconds |
Pulse repetition rate (kHz) | 20-80kHz |
Per pulse energy (PRR = 20 kHz) | 0.95 MJ |
Beam quality | <1.8 |
Output fiber transmission length | 3m |
working voltage | AC(110-220V)±10%,50/60Hz |
Maximum power consumption | 600W |
Net size | |
Laser System | |
Scanning speed | 0-7000mm/s |
Marking speed | 0-8000mm/s |
Marking size | 110mm×110mm (F-theta 160) |
Spot size | ≤ 40 micron (F-theta 160) |
Cooling system | Air cooling |
Red point laser | 650 nm, red light marking guide |
Continuous working time | ≥16h |
Humidity | 45 to 85% (without condensation) |
Working temperature | 0~40℃ |
Control system | Laser marking |
Marking depth | 0.015-0.5mm (adjustable according to material), |
Repetition accuracy | ≤0.001mm |
Marking accuracy | ≤0.001mm |
Working environment | Temperature 15 ~ 35℃, humidity 45 ~ 75%, no dust, no oil smoke, no corrosive gas |
Software function | 1) Compatible software: CorelDRAW, AutoCAD, Photoshop, etc 2) Supported formats: PLT, DXF, BMP, JPGE, etc 3) Own word library: SHX, TTF 4) Supported functions: text, graphics, pictures, automatic coding, printing serial number, batch number, date, bar code, two-dimensional code, automatic jump number, etc. |
