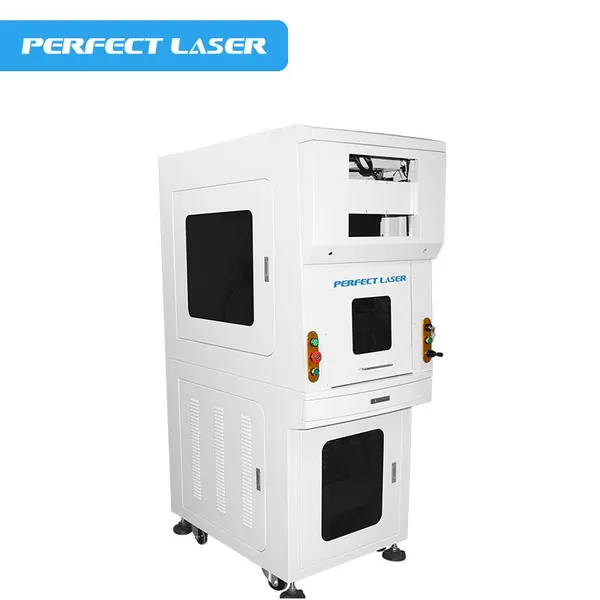

50w Floor type safety closed Metal fiber laser engraver with computer and table
- SHANGHAI
- T/T
- 15 days
You May Like
-
3D Metal Fiber Laser Engraver 100w with computer and table for tumble safety lock printing
-
with Rotary 30w desktop Jewelry metal steel fiber laser engraver
-
with safety closed 30w desktop Jewelry metal steel fiber laser engraver
-
3W Desktop mini UV laser engraver for glass plastic wood metal
-
5W Water cooling UV laser engraver for glass plastic wood metal
-
Safety Closed 5W Water cooling UV laser engraver for glass plastic wood metal
Product Details
| Brand Name | Perfect Laser | Place of Origin | China | |
| Model Number | PEDB-500 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New | |
| Power(W) | 50w | Graphic Format Supported | AI, DXF, PLT | |
| Control Software | EZCAD | Cooling Mode | Air Cooling | |
| CNC or Not | Yes | Laser Type | Fiber Laser |
Product Description
Features:
1. The metal etching machines can reach 100000 hours long lifetime, No consumables, Free of Maintenance.
2. Best Marking Effect, Deep Marking, Higher Accuracy.
3. The metal etching machines don't need to adjust the laser path, and it uses integrated air cooling.
4. This laser etcher for metal has low power consumption, small and compact.
Technical Data:
Laser Sourse | |
IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
Mode of operation | Pulsed |
Polarization | random |
Q-switched operation | |
Output power adjustment range | 10%-100% |
Nominal average output power | 50W |
Central emission wavelength | 1060-1070 nm |
Emission Bandwidth (FWHM) | <10 nm |
Long-term average power instability | <5% |
Pulse width, (FWHM) | 100 ns |
Laser switching ON time | 180 μsec |
Laser switching OFF time | 180 μsec |
Pulse Repetition Rate* kHz | 20-80 kHz |
Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
Typical beam quality, M2 | <1.8 |
Output fiber delivery length | 3m |
Operating voltage | 220V |
Max. Power consumption | 0.5 kw |
