Perfect Laser (Wuhan) Co., Ltd.: Main products: laser cutter, laser welder, laser engraver, laser cleaner, laser scribing machine, cnc router, inkjet printer, dot peen marker

Home > Products > laser marker > 300w 900x600mm safety closed large size fiber laser engraver for metal and plastic

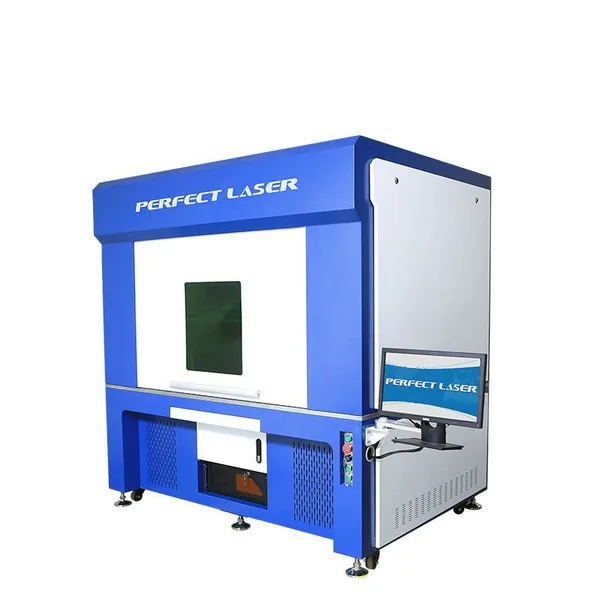

300w 900x600mm safety closed large size fiber laser engraver for metal and plastic

FOB Price

US$ 22900 - 23400 / Unit

1 Unit(Min. Order)

Port SHANGHAI
Payment TermsT/T
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Perfect Laser	Place of Origin	China
Model Number	PEDB-9060	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Condition	New
Power(W)	300w	Graphic Format Supported	AI, DXF, PLT
Control Software	EZCAD	Cooling Mode	Air Cooling
CNC or Not	Yes	Laser Type	Fiber Laser

Product Description

Features:

1. The fiber laser source of this industrial laser marking systems adopts Germany technology , its lifetime is up to 100,000 hours. The laser etching systems do not need special maintenance, the rail can be wiped once every three months, and the life of the whole industrial laser engraving machine is more than 10 years.

2. The industrial laser marking systems marking platform is 900mm×600mm, which supports large-format marking in one go and can also meet splicing marking .

3. This laser etching systems adopt closed processing,which can avoid the damage of the laser to human body. The industrial laser engraving machine can be equipped with an air purifier to filter the smoke and is filtered through four layers to discharge clean air. The panel of this laser etching systems is equipped with a window to facilitate real-time observation of working conditions.

4. The industrial laser marking systems are equipped with industrial computer and monitor, adopts USB data transmission. It is easy to operate.

5. The industrial laser engraving machine adopts three servo motors imported from Japan, which is faster and more accurate than traditional stepping motors.

Technical Data

Product name	Industrial Laser Marking Systems
Model	PEDB-9060
Laser power	300W
Marking format	900mm×600mm
Re-position Precision	±0.002mm
Motor	Japan imported servo motor
Motor Power	1200W(3×400W)
Marking speed	6000mm/s
Laser wavelength	1064nm
Beam quality	M2<1.8
Cooling method	Air cooled
Total power	3000W
Overall size	1900mm×1300mm×1870mm
Air Purifier (optional)	Flow	450m³/h
	Noise	<60dB
	Power	330W
	Filter size	Primary cotton filter：378×278×100mm
		HEPA filter (PP)× 2：378×278×50mm
		Activated carbon filter × 2: 378 ×278×50mm
	Weight	36.7Kg
	Size	425×315×700mm
Voltage	AC 220V 50-60Hz
Support file format	Supports G code, PLT code format and Engraving (ENG) format generated by various CAD/CAM soft wares such as UG, MASTERCAM, CASMATE, Art CAM, AUTOCAD, Corel Draw.
