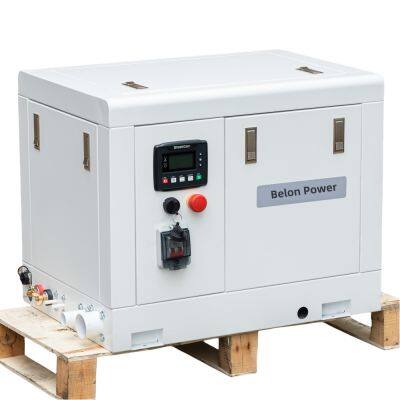

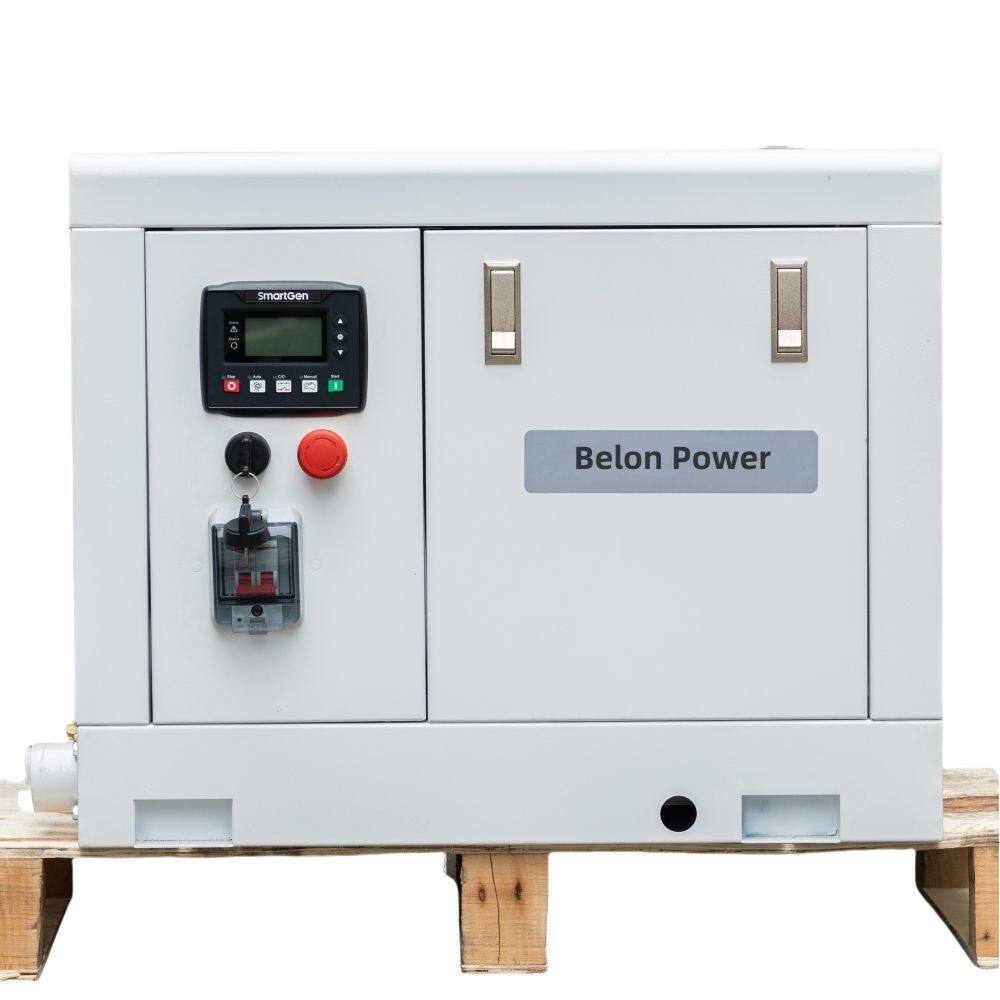

6kw Marine Silent Diesel Generator Seawater-cooled
US$ 18200 - 19200
MOQ: 5 Sets
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing,Shanghai
Delivery Detail:
30 days
Related Products
-
6kw Dual Power Diesel GeneratorUS$ 4300 - 4400MOQ: 20 Sets -
15kw Silent Marine Diesel GeneratorUS$ 60200 - 61200MOQ: 5 Sets
-
20kw Vehicle Silent Diesel GeneratorUS$ 75000 - 80000MOQ: 5 Sets
-
6kw Dual Voltage Open Diesel Generator Single/three Phase in OneUS$ 4300 - 4400MOQ: 20 Sets
-
7kw Dual Voltage Open Diesel Generator 1100F Diesel EngineUS$ 6200 - 6500MOQ: 5 Sets
| Model No. | 8000STD | ||||
| Generator Set | Rated Frequency | HZ | 50 | 60 | |
| Prime Power | KVA | 5.5 | 6.5 | ||
| KW | 5.5 | 6.5 | |||
| Standby Power | KVA | 6 | 7 | ||
| KW | 6 | 7 | |||
| Rated Voltage | V | 115/230 | 120/240 | ||
| Rated Current | A | 47.8/23.9 | 56.5/28.3 | ||
| Rated Speed | r/min | 3000 | 3600 | ||
| Control Panel | Smartgen 4010 Display | ||||
| Output | Socket | No | |||
| Terminal | Yes | ||||
| Noise（ at 7m） | dB(A) | 58 | |||
| Machine Size | mm | 700×500×560 | |||
| Machine Weight | kg | 150 | |||
| Alternator | Alternator Model | YP8000STD | |||
| Number of Poles | 4 | ||||
| Phase | Single | ||||
| Excitation Method | Brushing self excitation constant voltage (With AVR) | ||||
| Power Factor | COSΦ | 1 | |||
| Insulation level | F | ||||
| Diesel Engine | Model | YDM80S | |||
| Engine Type | Single cylinder inline, four stroke, direct injection, water-cooled | ||||
| Bore×Stroke | mm | 92×75 | |||
| Displacement | L | 0.499 | |||
| Compression Ratio | 19.5∶1 | ||||
| Rated Power | KW | 7.6 | 8.6 | ||
| Cooling water volume(engine only) | L | 4 | |||
| Lubrication method | Pressure Splash Composite | ||||
| Oil No. | CD grade or above，SAE 10W-30、15W-40 | ||||
| Oil Tank Volume | L | 1.65 | |||
| Start Method | 12V Electric | ||||
| Volume of Start Alternator | V-KW | 12V 1.2KW | |||
| Fuel Consumption | g/KW.h | 298 | |||
| Fuel No. | Diesel： 0＃（Summer）-10＃（Winter）-35＃（Severe cold） | ||||
