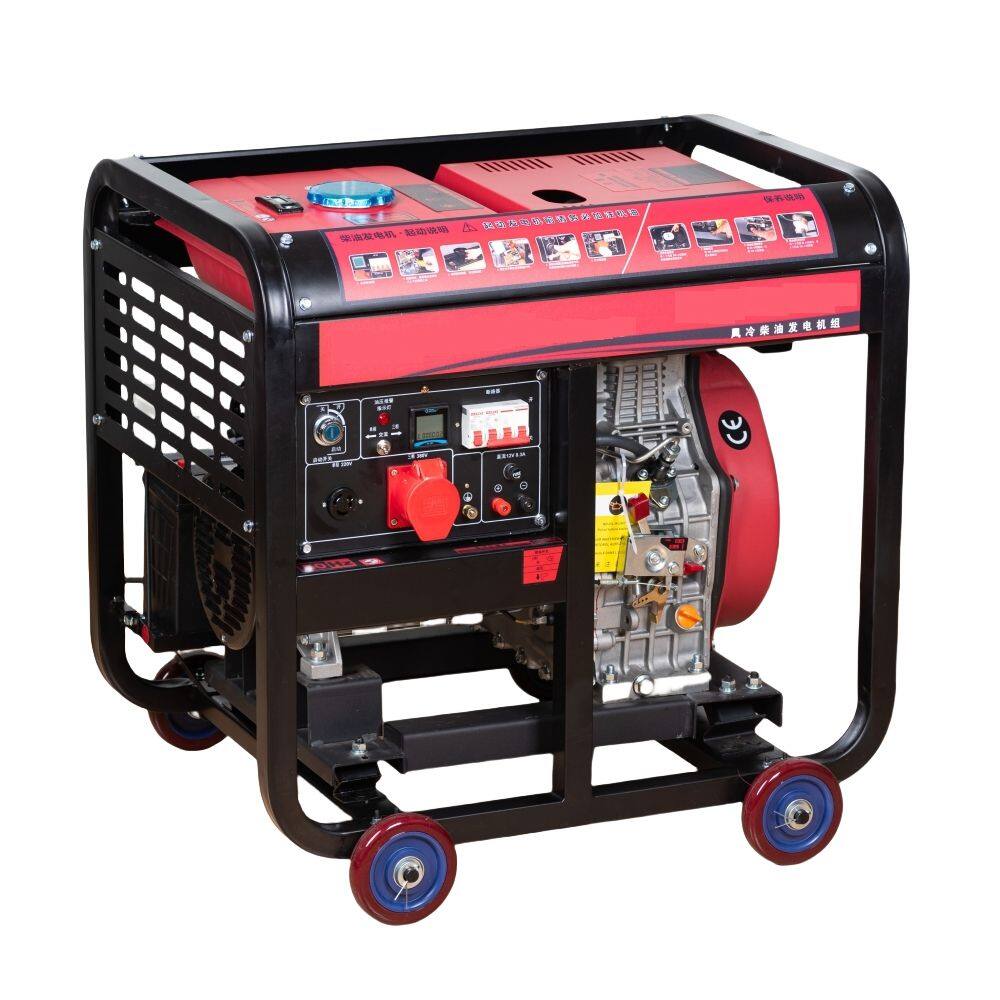

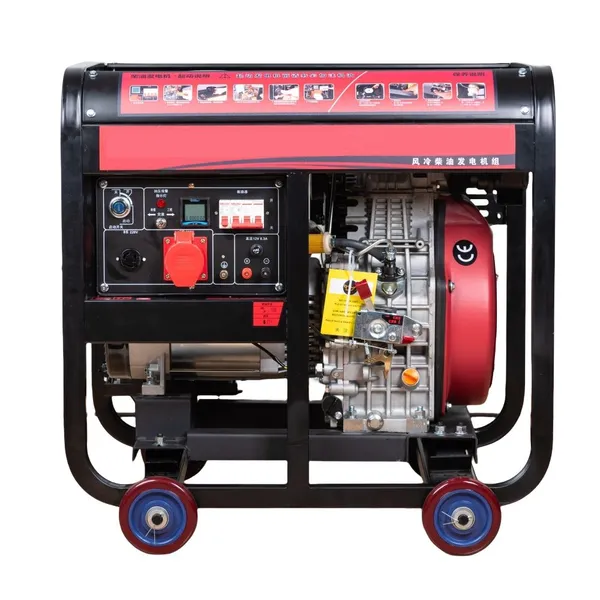

7kw Dual Voltage Open Diesel Generator 1100F Diesel Engine

7kw Dual Voltage Open Diesel Generator 1100F Diesel Engine photo-1
US$ 6200 - 6500 MOQ: 5 Sets
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing,Shanghai
Delivery Detail:
30 days
ModelDG11000LED
Frequency[Hz]50                   60
Voltageg[V]220.230.240.110/220.115/230.120/240.230/380.230/400.240/415
Rated Power( KW)Single phase 6.5/Three phase 7.3        Single phase7.0/Three phasea 7.8
Max. Power(KW)Single phase 7.0/Three phase 7.8      Single phase 7.5/Three phase 8.3
Rated Output Current(A )Single phase 21.6/Three phase 10.5        Single phase 23.3/Three phase 11.2
DC Output12V   8.3A
PhaseSingle phase/Three phase
Excitation MethodBrush self-excitation
Power FactorΦ  1.0(0.8)
Insulation ClassF
Fuel Tank Capaciity[L]12.5
Engine Model1100FE
Start MethodElectric Start
Engine TypeSingle cylinder,4-stroke,air-cooled, vertical
Bore*Strokke[mm]1-100*85
Displacement0.667L
Compression Ratio19.5:1
Speed[rpm]3000                3600
Power [Kw]10                    10.5
Oil Capacity[L]2
Fuel Consumption[g/kwh]≤285                  ≤295
Fuel No.Diesel: 0#(Sumner), -10#(Winter)    Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter.
Oil No.SAE10W30 (CD grade or above)       uses CD or above grade 15W-40 oil (or SAE equivalent grade oil)
OptionalATS,Remote Control,Intelligent digital display panel
Size [mm] (L*W*H)780*585*705
Packing Size [mm] (L*W*H)800*605*725
Net Weight/Gross Weight[Kg] 132/136

Product Tags: 7kw dual power diesel generator , 7kw 220/380V diesel generator , 7kw dual voltage diesel generator
