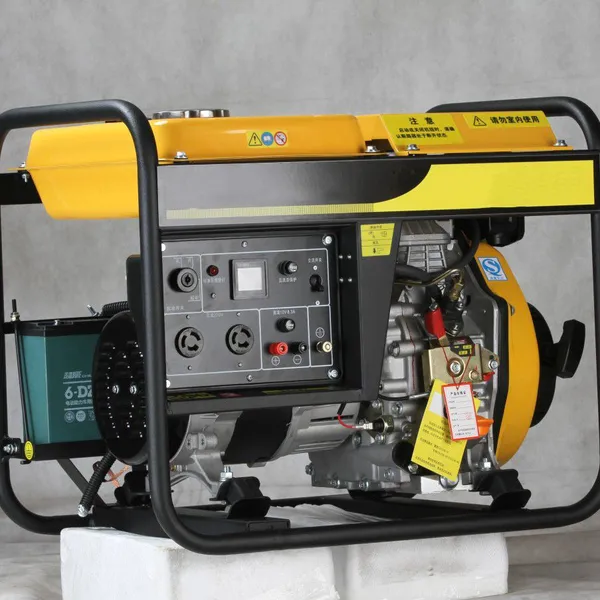

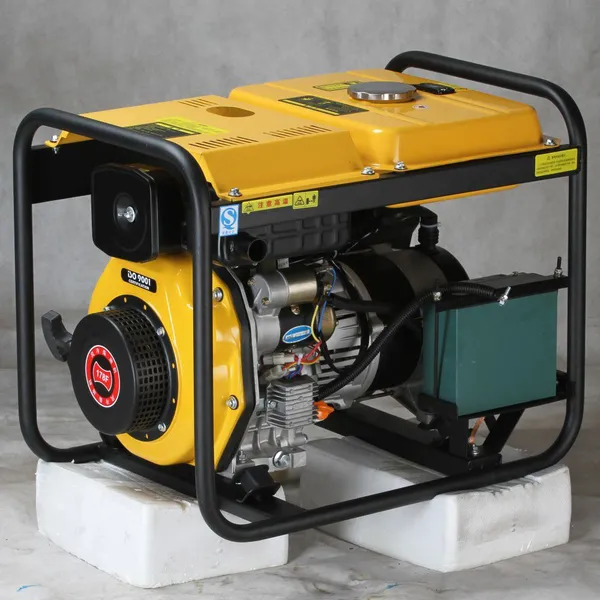

3KW Single Phase 220V Portable Diesel Generator
Product Spotlights
Single phase 220V stable power output, compact portable body. Low fuel consumption, easy start and simple operation. Reliable running performance, fine heat dissipation. Perfect for home backup, outdoor and daily power supply.
US$ 300 - 310
MOQ: 20 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
20 days
Related Products
-
4.5kW Single Phase 220V Portable Open Diesel GeneratorUS$ 400 - 410MOQ: 20 Sets -
4.5kW Three Phase 380V Open Portable Diesel GeneratorUS$ 430 - 440MOQ: 20 Sets
-
4.5KW Dual Power Open Portable Diesel Generator 220V/380V Single&Three PhaseUS$ 450 - 470MOQ: 20 Sets
-
5kw Dual Power Diesel Generator 5.5kw Dual Voltage Diesel GeneratorUS$ 500 - 520MOQ: 20 Sets
-
5KW Three Phase 380V Open Frame Diesel Generator With 188F Engine & Pure Copper AlternatorUS$ 480 - 500MOQ: 20 Sets
Type
Basic Diesel Generator
Warranty
1 year
Stroke
Four Stroke
Usage
Common Units
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
1 year
Installation Method
Portable
Excitation Mode
Other, self-excited
Conditions of Use
Land Use
Landuse Type of Unit
Ordinary
Output Type
AC Single Phase
Transport Package
carton
Specification
DG4500LE
Trademark
Belon Power
Origin
China

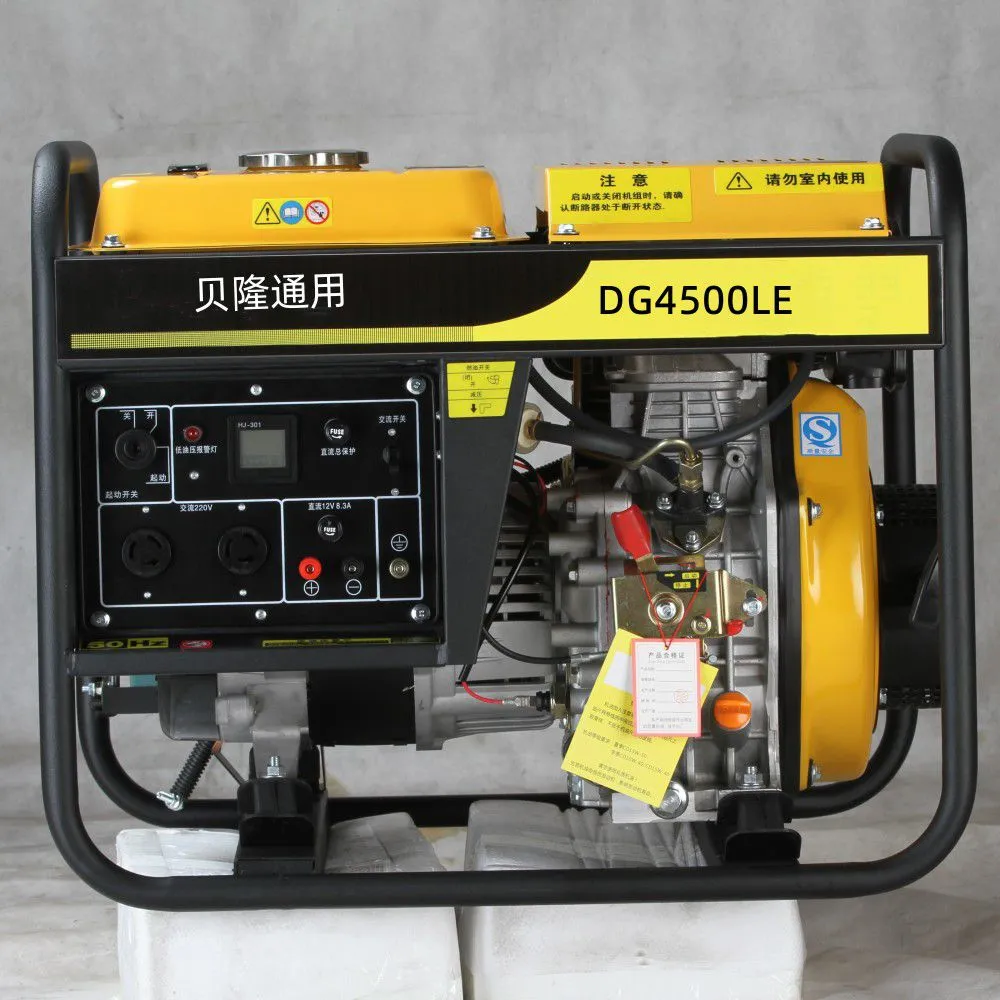

220V Single Phase 3KW Household Diesel Generator
| Model | DG4500LE |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 110/220.115/230.120/240 |
| Rated Power( KW) | 2.8 3.3 |
| Max. Power(KW) | 3 3.5 |
| Rated Output Current（A ) | 12 14 |
| DC Output | 12V 8.3A |
| Phase | Single phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5L |
| Engine Model | 178FE |
| Start Method | Electric start |
| Engine Type | Single cylinder、4 stroke、Air-cooled、Vertical |
| Bore*Strokke[mm] | 78*62 |
| Displacement | 0.296L |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 |
| Power [Kw] | 3.7 |
| Oil Capacity[L] | 0.75 |
| Fuel Consumption[g/kwh] | ≤270 ≤275 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 660*470*565 |
| Packing Size [mm] (L*W*H) | 680*480*590 |
| Net Weight/Gross Weight[Kg] | 81.7/84.1 |
