Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 4.5kW Single Phase 220V Portable Open Diesel Generator

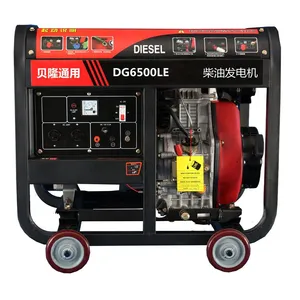

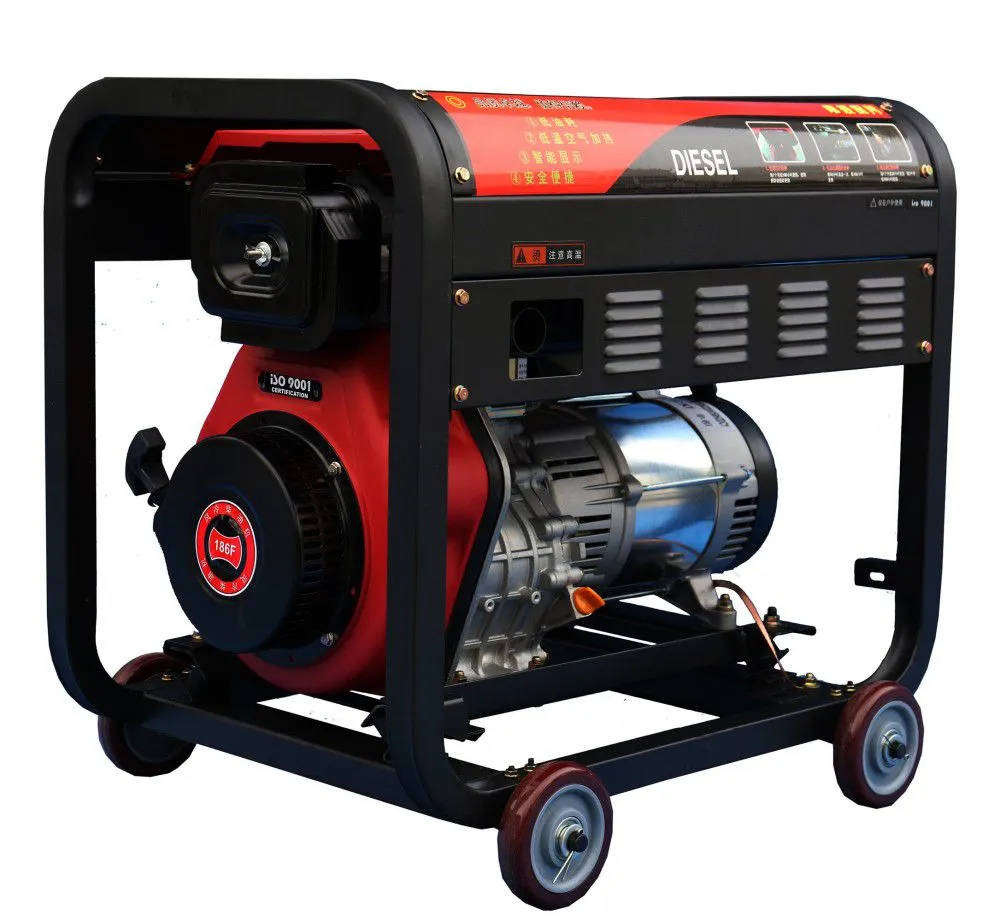

4.5kW Single Phase 220V Portable Open Diesel Generator
Product Spotlights
Rated Power: 4.5KW, Max Power: 5KW, single phase 220V with open frame design. Equipped with 186F single-cylinder air-cooled diesel engine. Pure copper alternator ensures steady voltage. Supports manual & electric start, large fuel tank for long working hours. Portable with wheels, easy to use and maintain.
US$ 400 - 410
MOQ: 20 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 Year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
20 days
Related Products
-
4.5kW Three Phase 380V Open Portable Diesel GeneratorUS$ 430 - 440MOQ: 20 Sets -
4.5KW Dual Power Open Portable Diesel Generator 220V/380V Single&Three PhaseUS$ 450 - 470MOQ: 20 Sets
-
5kw Dual Power Diesel Generator 5.5kw Dual Voltage Diesel GeneratorUS$ 500 - 520MOQ: 20 Sets
-
5KW Three Phase 380V Open Frame Diesel Generator With 188F Engine & Pure Copper AlternatorUS$ 480 - 500MOQ: 20 Sets
-
5KW Single Phase 220V Open Frame Movable Diesel GeneratorUS$ 460 - 480MOQ: 20 Sets
Type
Basic Diesel Generator
Warranty
1 Year
Stroke
Four Stroke
Usage
Common Units
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
Send parts with next order
Installation Method
Portable
Excitation Mode
Other, Self-excited
Conditions of Use
Land Use
Landuse Type of Unit
Ordinary
Output Type
AC Single Phase
Transport Package
Carton
Specification
DG6500LE
Trademark
Belon Power
Origin
Chongqing, China
4.5kW Single Phase 220V Portable Open Diesel Generator
| Model | DG6500LE |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 110/220.115/230.120/240 |
| Rated Power( KW) | 4.5 5.0 |
| Max. Power(KW) | 5 5.5 |
| Rated Output Current（A ) | 19.5 22 |
| DC Output | 12V 8.3A |
| Phase | Single phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 186FA |
| Start Method | Electric start |
| Engine Type | Single cylinder,4 stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 86*72 |
| Displacement | 0.418L |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 5.8 6.6 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤275 ≤280 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | R720*485*615/25mm S700*485*600/ 35mm S 740*505*620 |
| Packing Size [mm] (L*W*H) | R740*500*635/25mmS 710*500*620/ 35mmS760*515*630 |
| Net Weight/Gross Weight[Kg] | R106/25mm S112/35mmS118 R109/25mmS/115/35mm S121 |
