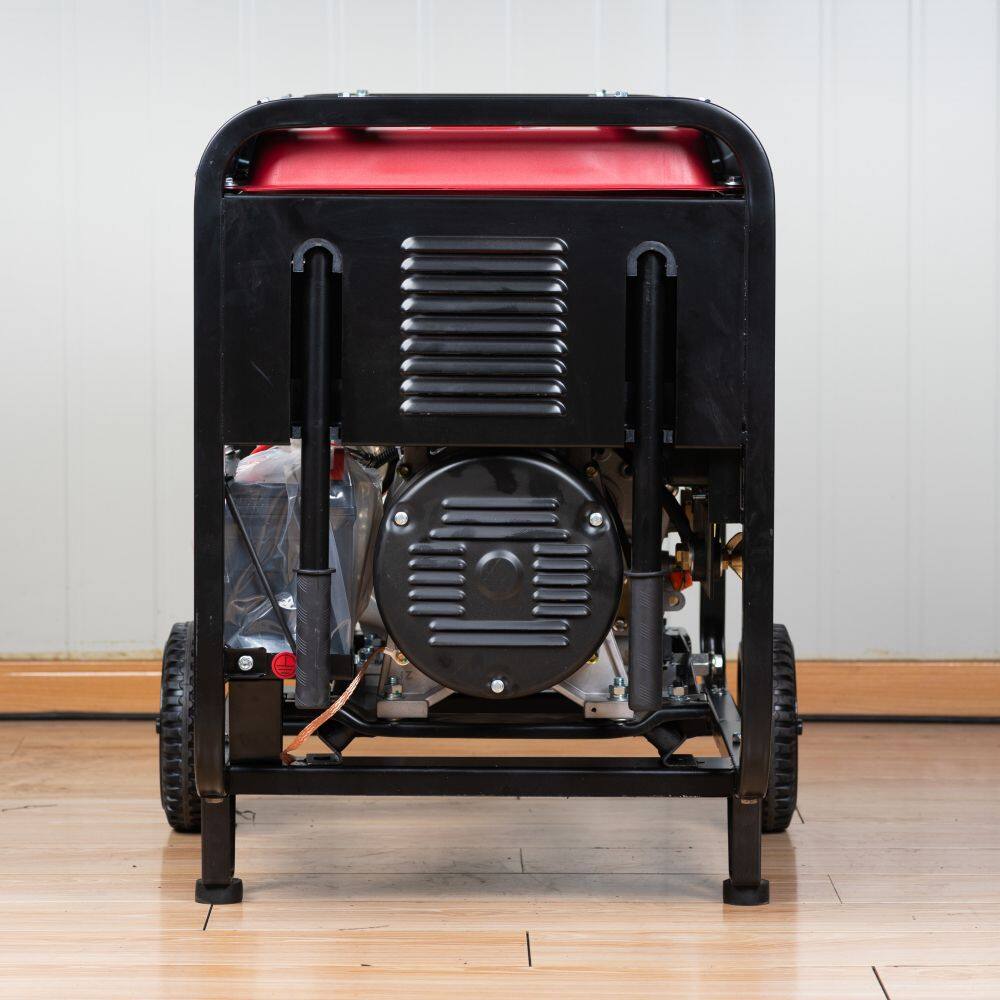

6kw Dual Voltage Open Diesel Generator Single/three Phase in One
| Model | DG8500LED |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220.230.240.110/220.115/230.120/240.230/380.230/400.240/415 |
| Rated Power( KW) | Single phase 5.5/Three phase6.3 Single phase6.0/Three phase7.3 |
| Max. Power(KW) | Single phase6.0/Three phase6.8 Single phase6.5/Three phase 7.8 |
| Rated Output Current(A ) | Single phase24/Three phase9 Single phase26/Three phase10.5 |
| DC Output | 12V 8.3A |
| Phase | Single phase/Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 192FE |
| Start Method | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 92 * 75 |
| Displacement | 0.499 |
| Compression Ratio | 19.5:1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 7.5 8.2 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤280 ≤290 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS,Remote Control, Intelligent digital display panel |
| Size [mm] (L*W*H) | R720*485*615/25S700*485*600/ 35S740*505*620 |
| Packing Size [mm] (L*W*H) | R740*500*635/25S710*500*620/ 35S760*515*630 |
| Net Weight/Gross Weight[Kg] | R115/25S121/35S125 R118/25S/124/35S28 |
