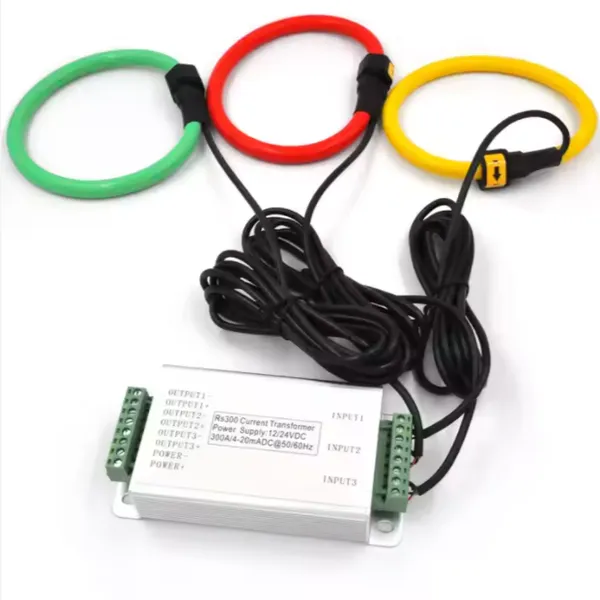

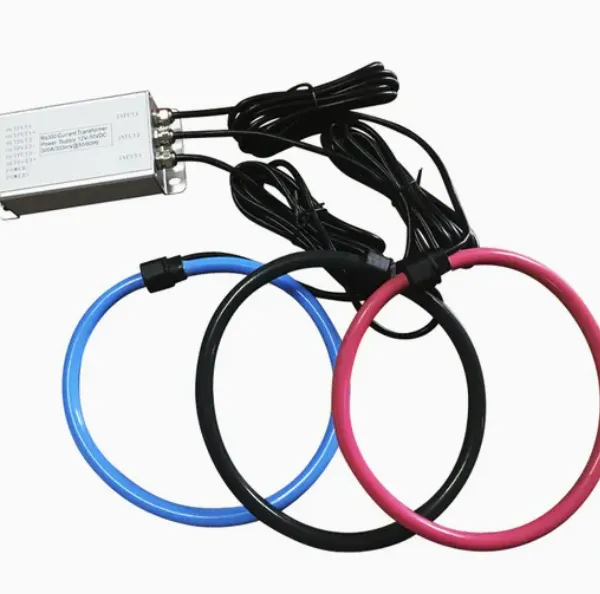

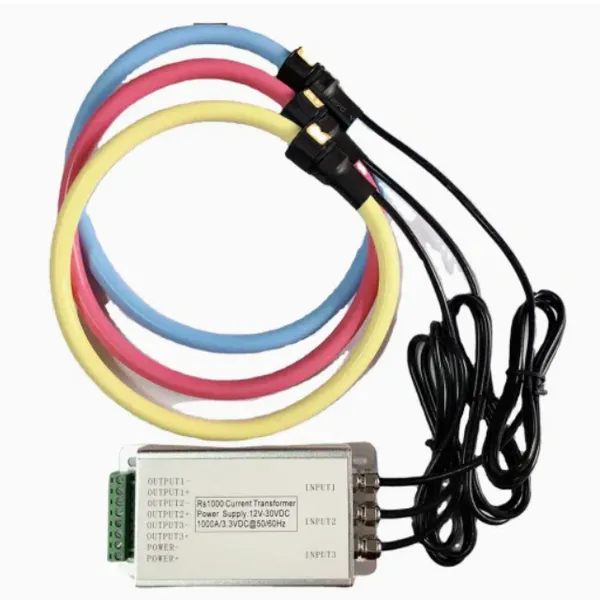

Help CenterUL Flexible Rogowski Coil For Three Phase Meter 800A/333mV
Related Products
-
High Frequency Rogowski Coil Current Transformer 0.333V OutputUS$ 18 - 25MOQ: 5 Pieces -
High Precision RSCT1000 Rogowski Coil Flexible Core 4-20mA OutputUS$ 10 - 90MOQ: 1 Piece
-
CE Outdoor Split Rogowski Coil Current Sensors From 100A to 200kAUS$ 10 - 90MOQ: 1 Piece
-
Flexible Rogowski Coil 100mV Output Dimesion CustomizedUS$ 10 - 90MOQ: 1 Piece
-
Flexible Rogowski Coil High Frequency 4-20mA Output for Power Energy MetersUS$ 18 - 25MOQ: 1 Piece
Specifications Of 100A-100ka Flexible Three phase Rogowski Coil Current Transformer for Monitoring 333mv
Split Rogowski Coil current sensors are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.
A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoided

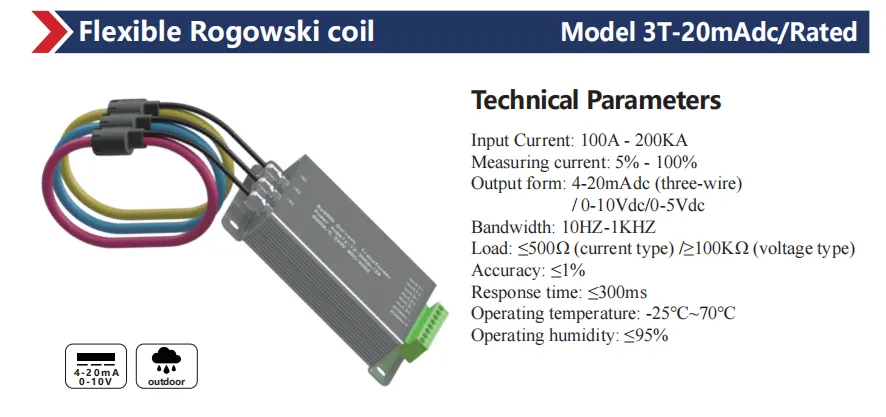

Key specifications
Input current range:0-10000A
Output :Flexible Rogowski coils 0.333Vac,100mV/per 1000A, 0-5Vac
Bandwidth :1Hz-1MHz
Accuracy :≤±1%
Response time :10ms
Auxiliary power supply :6-24VDC
Coil length :≤2m
Status indicator :LED light
Storage temperature range :-40ºC-70ºC
Operating temperature range :-20ºC-55ºC
Storage humidity range :10%-90% without dew
Operating humidity range :10%-90% without dew
| Current range(AC) | 100-100K | A(ac) |
| Measure range | 5% - 120% | % |
| Power frequency | 45-65 | Hz |
| frequency band | 10 - 10KHz | Hz |
| Rated output | 0.1-5Vac, Hot sales 333mVac | Vac |
| Supply voltage | 12 - 30V | V |
| Power Consumption | 30 | mA |
| Offset voltage | ≤3 | mV |
| Offset drift | @ -25~+70ºC ≤±1 | mV/ºC |
| Accuracy | ≤1 | % |
| Linearity | ≤1 | %FS |
| Response time | ≤20 | ms |
| Galvanic isolation | AC,1min 10 | KV |
| Isolation resistance | @ DC 500V 1000 | MΩ |
| Operating temperature | -25 to +50 | ºC |
| Storage temperature | -40 to +70 | ºC |
