Home > Products > Outdoor Waterproof Split Core Current Transformer > Outdoor Waterproof Split Core Current Transformer Toroidal 250A/100mA

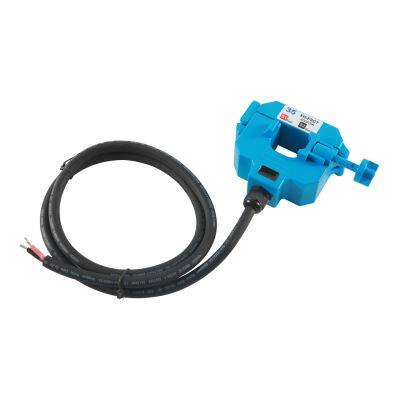

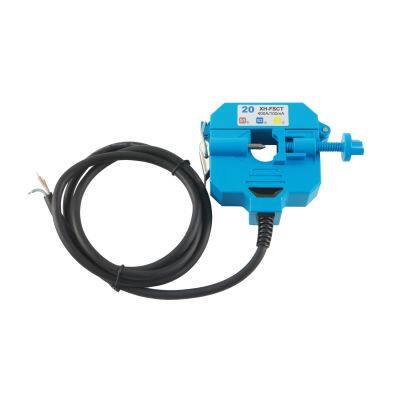

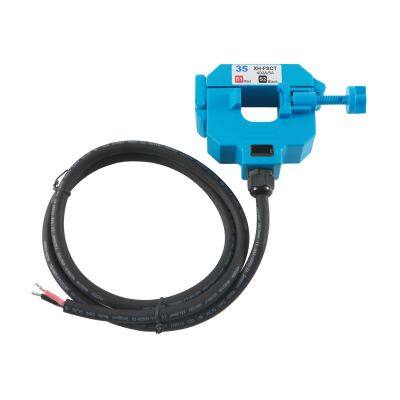

Outdoor Waterproof Split Core Current Transformer Toroidal 250A/100mA
USD $18 - $25
/ Piece
5 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- T/T
You May Like
-
IP67 Waterproof Outdoor Split Core Current Transformer 400A/5A
-
UL2808 Bct-1250 Solid Core Current Transformer 333mV Output Current Sensor
-
UL2808 Bct-1250 Solid Core Current Sensor 100A/40mA 0.2 Accuracy class
-
High Precision Solid Core Current Transformer mA or 0-5V Output
-
Close Loop Current Transformer mA or 0-5V Output Solid Core CT
-
Solid Core Current Transformer Xh-Bct-0500-100A/40mA Toroidal CT
Product Details
| Brand Name | Jiangyin Spark | Place of Origin | China | |
| Model Number | XH-FSCT20 | Usage | Electronic | |
| Phase | Single | Coil Number | Other | |
| Coil Structure | Toroidal |
Product Description
Outdoor Waterproof Current Transformer XH- FSCT-20
φ20mm Opening With 10 To 600 Amp Rating
Description:
Jiangyin Spark XH-FSCT-20 is Outdoor Waterproof Clamp on Current Transformer ,split core type
Application & Features
Utilities pole probe monitoring, measurement
Power distribution line monitoring
Building, factory energy management system
Measurement, moniting of low current in outdoor application
Current balancing monitoring
Smart grid application, energy efficiency
Inner Diameter:20mm
For cable line measuring below 600A
Primary Current: 0~600A
Accurately Class: 0.5%, 1%
Inner Diameter:20mm

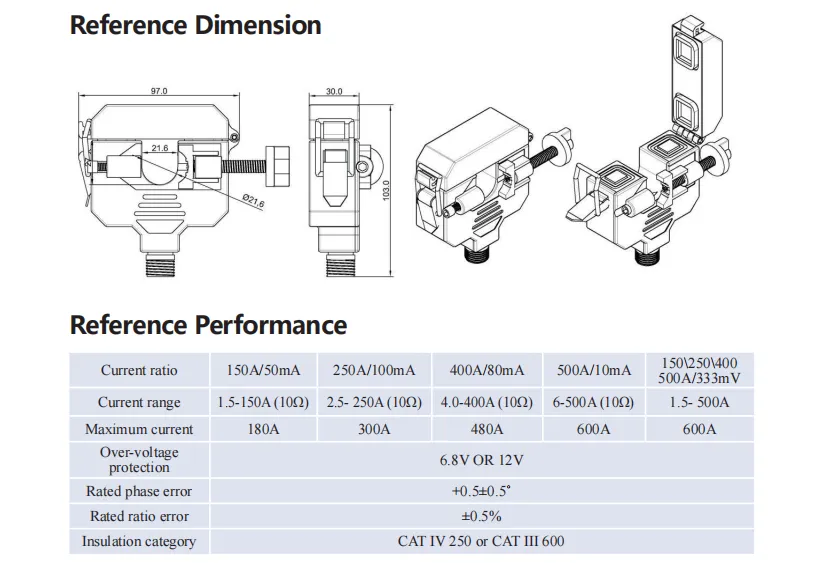

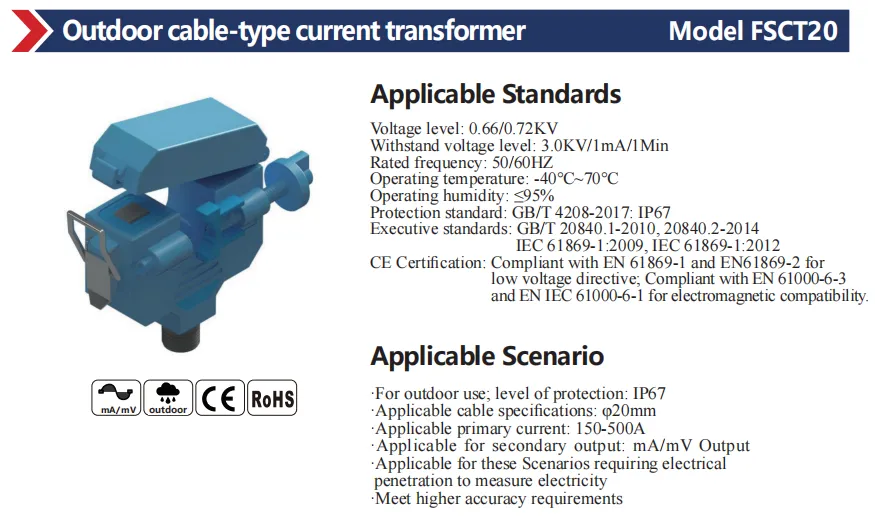

Product specification:
| Model | FSCT-20 |
| Standards | GB 20840 (IEC 61869), GB4208 |
| Equipment maximum voltage | 0.33/0.72KV |
| IP rating | IP 67 |
| Rated current | 10-600 Arms |
| Max current | 1000 Arms |
| Turns | 100-3000T |
| Accuracy class | 0.5, 1.0 |
| Rated output | mA/mV/1A/5A |
| Wire lead | 3*0.75mm2 sheathed wire |
| Insulation strength | 3KVAC/min |
| Insulation impedance | DC500V/100MΩ |
| Rated frequency | 50-400HZ |
| Working temperature | -25ºC~50ºC |
| Storage temperature | -30ºC~90ºC |
