5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV

Jiangyin Spark Electronic Technology Co., Ltd.
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV thumbnail-1
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV thumbnail-2
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV thumbnail-3
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV thumbnail-4
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV thumbnail-5
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV photo-1
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV photo-2
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV photo-3
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV photo-4
5A Waterproof Outdoor Voltage Insulation Split Core Current Transformer Anti-UV photo-5
US$ 20 - 30 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Jiangyin Spark
Place of Origin:
China
Model Number:
FSCT-T36
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jiangyin Spark
Place of Origin China
Model Number FSCT-T36
Usage Instrument
Phase Single
Coil Number Other
Coil Structure Other
Product Description

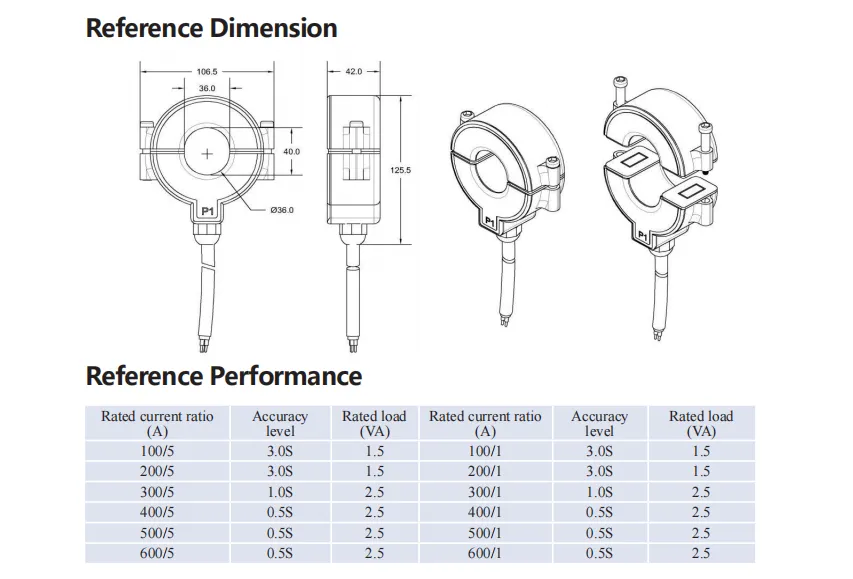

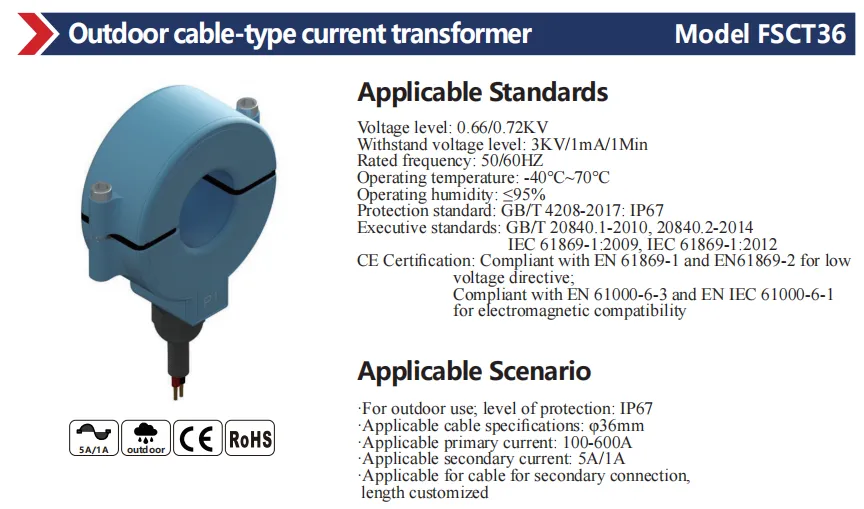

Specifications Of Outdoor Waterproof Anti-UV Split Core Current Senor 600A 5A

ModelFSCT-T36
StandardsGB 20840 (IEC 61869), GB4208
Window size36mm
IP ratingIP67
Burden1.5VA-5VA
Rated current100-800 Arms
Max current800 Arms
Turns100-3000T
Accuracy class0.5, 1.0
Equipment maximum voltage0.66/0.72KV
Rated output5A,1A,mA,mV,V
Wire lead2*2.5mm2 sheathed wire
Insulation strength3KV VAC/min
Insulation impedanceDC500V/100MΩ
Rated frequency50-400HZ
Working temperature-40ºC~70ºC
Storage temperature-40ºC~90ºC




Application Of Outdoor Waterproof Anti-UV Split Core Current Senor 600A 5A

.Power quality monitoring
. Power instrument and meter
. Distributed measurement systems
. Measurement of current of power supply equipment below 10KV
. Microcomputer protection

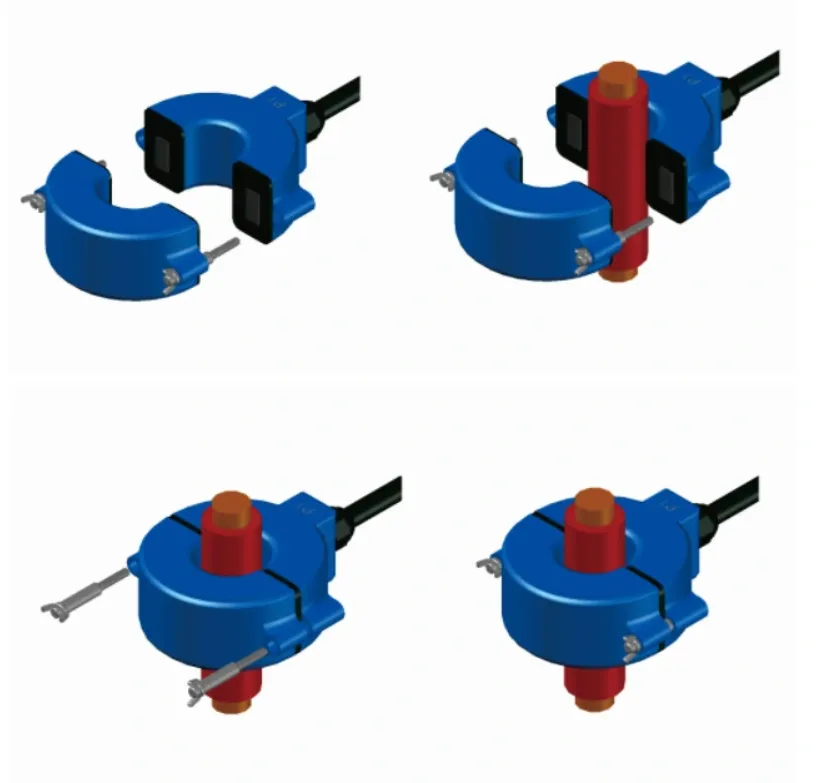

Installation Of Outdoor Waterproof Anti-UV Split Core Current Senor 600A 5A
