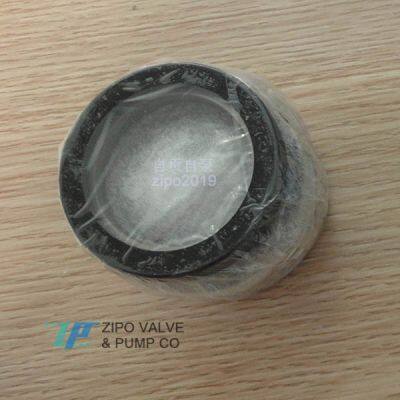

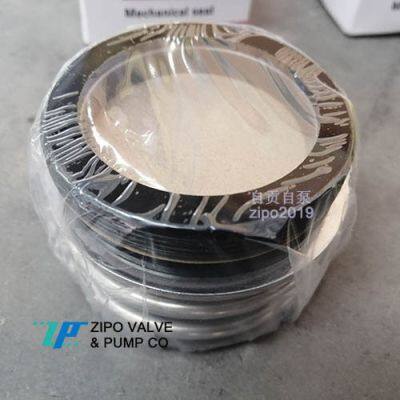

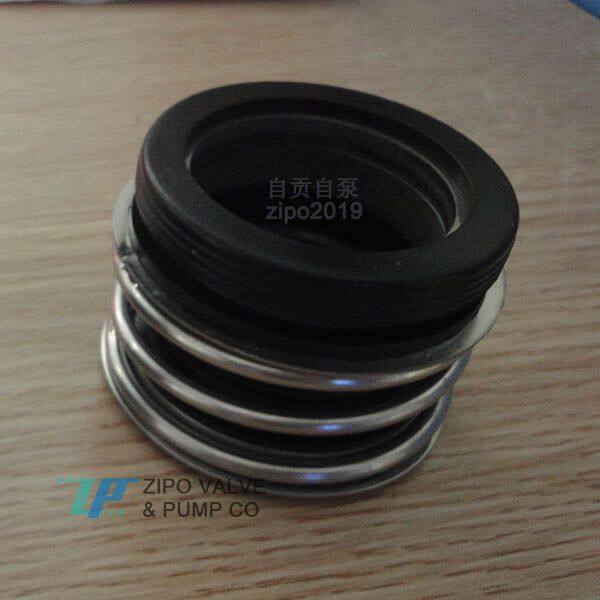

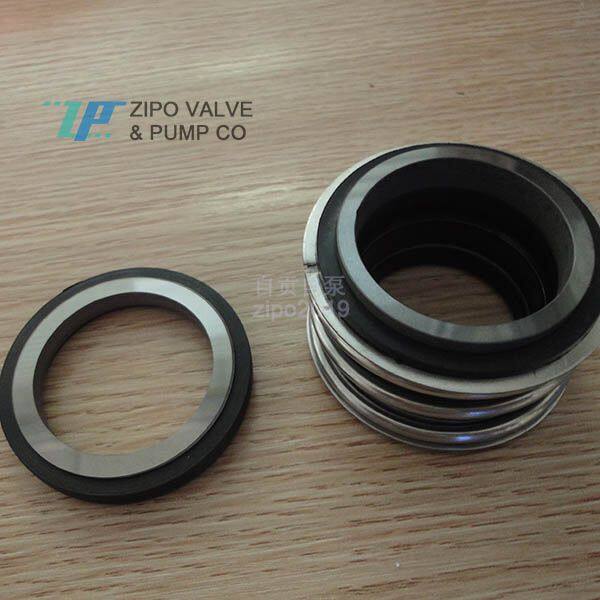

Pipeline pump/submersible pump/ clean water pump mechanical seal MG1/109-30/35/40/50/55/60/70/80/90
The above prices are reference prices, and the prices of different models may vary. Please call us for specific prices. Mechanical products are customized products, please call to negotiate and agree on the delivery time.
Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)758
109 Mechanical Seal Clean Water Pump Sewage Pump Pipeline Pump Mechanical Seal
Structural features: Single end non-equilibrium type
Sealing surface material: graphite ceramic alloy silicon carbide
Auxiliary sealing: Fluorine rubber silicone nitrile
Scope of application: Water pumps, submersible pumps, marine seawater pumps, etc
Product features: Corrosion resistance, acid and alkali resistance, high temperature resistance, wear resistance, oil resistance
Operating parameters: Pressure: ≤ 1.0MPa Temperature: -20~180 ℃ Linear velocity: ≤ 10m/s Specification: 12-100mm
Common 109 machine seal models:
109-12 109-14 109-16 109-18 109-20 109-22 109-24
109-25 109-28 109-30 109-32 109-35 109-38 109-40
109-43 109-45 109-48 109-50 109-53 109-55 109-60
109-65 109-70 109-75 109-80 109-85 109-90
Common pump types: ISG pipeline pump, YG explosion-proof pipeline pump, IS horizontal single suction single-stage clean water pump, IR hot water pump, WQ submersible sewage pump, QW submersible pump
Manufacturer: ZIPO VALVE & PUMP CO., LTD
