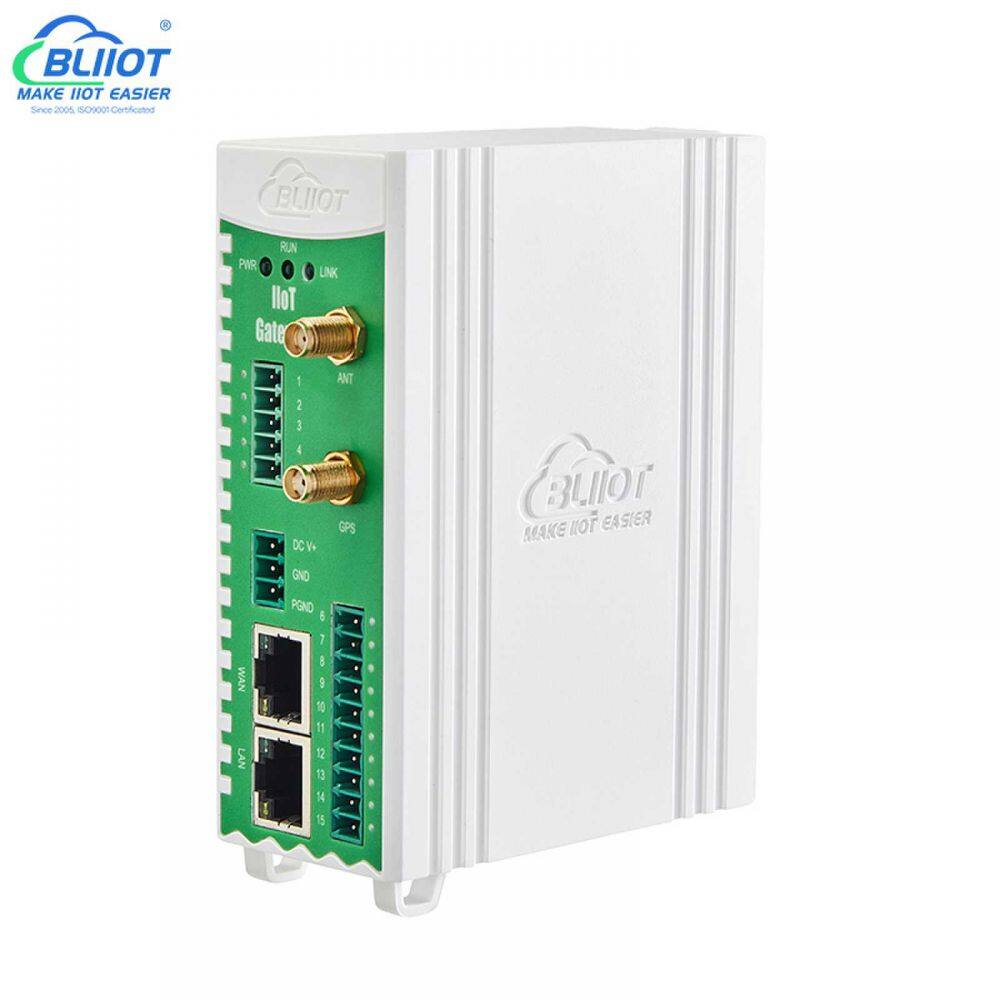

BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation

BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation thumbnail-1
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation thumbnail-2
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation thumbnail-3
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation thumbnail-4
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation thumbnail-5
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation photo-1
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation photo-2
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation photo-3
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation photo-4
BLIIOT Modbus to Profinet Protocol Converter BL122 for Industrial Automation photo-5
US$ 110.77 - 114.45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
BL122
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number BL122

Product Description

Modbus to profinet Industrial Protocol Gateways BL122

Item No.: BL122
BLIIoT BL122 Industrial Protocol Gateways get data from your Modbus RTU or Modbus TCP based devices to your Profinet clients.

  • Basic Version: 2 Serial Ports: BL122

  • P Version: 6 Serial Ports: BL122P

Model List

All BL12x series gateways support 4G/WIFI/GPS/, and the number of serial ports can be selected from 2 serial series or 6 serial ports. The selection table is shown in Table 1 below.


Model WAN LAN COM(Default RS485, optional RS232) WiFi 4G GPS
BL122 1 1 2 × × ×
BL122L 1 1 2 × √ ×
BL122LG 1 1 2 × √ √
BL122W 1 1 2 √ × ×
BL122P 1 1 6 × × ×
BL122PL 1 1 6 × √ ×
BL1221PLG 1 1 6 × √ √
BL122PW 1 1 6 √ × ×
                                                                                     Table 1

For Profinet gateways, bliiot offers other downstream protocol to Profinet gateway options as listed in Table 2 below.

Profinet Gateway Model Downlink Protocol
Uplink Protocol:   Profinet BL122 Modbus RTU,Modbus ASCII,Modbus TCP
BL122EC EtherCAT
BL122EP Ethernet/IP
BL122CK CC-LINK,CC-LINK TSN
BL122CN CANOPEN JAE1939 DeviceNet
BL122PK Power Link
BL122DT DLT645,IEC104
BL122EN IEC61850
BL122DN DNP3.0
BL122BN BACnet MSTP,BACnet/IP
BL122LK Lonworks
BL122KN KNX
BL122ML Modbus RTU,Modbus TCP,DLT645,IEC104,BACnet,Lonworks,IEC61850
Product Parameters




 Parameter Description
Power Supply Input Voltage DC 12~36V
Power Consumption Normal: 192mA@12V, Max: 74mA@36V
Ethernet Port Specification 3 x RJ45, 3x10/100Mbps
Protection ESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
Cascading Support
Serial Port QTY 2CH RS485/RS232, 1CH RS232
Baud Rate 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
Data Bit 8
Parity Bit None, Even, Odd
Stop Bit 1, 2
Mode RTU Master/Slave, TCP Master/Slave
Function 01H, 02H, 03H, 04H, 05H, 06H, 0FH, 10H
Connection Up to 31 connections to a single serial port
Protection ESD ±6kV(Contact), ±8kV(Air)
EFT ±1kV, 5kHz
Indicator PWR Always on when device powered on
RUN Flickering when system running
LINK Flickering when TCP communicating
485A Flickering when communicating
RS232 Flickering when communicating
Software Protocol PROFINET, Modbus
Max input/output data volume  Input Bytes + Output Bytes ≤496 Bytes

Max Input Bytes ≤496Bytes

Max Output Bytes ≤496Bytes
File GSDML
Safety Regulations EMC IEC 61000-4-2 (ESD) Level 3

IEC 61000-4-4 (EFT) Level 3

IEC 61000-4-5 (Surge)Level 3
Others CE, FCC, RoHs
Environment Working -30~55ºC, 5~95% RH
Others Housing Material Plastic
Size 30×83×110mm(LxWxH)
Protection IP30
Mounting DIN Rail Mounting
Packaging & Shipping

Box &Shipping by air, land ,sea

Package Size
22.00cm * 19.00cm * 8.00cm
Package Gross Weight
0.500kg
Company Introduction

Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices.
Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.
