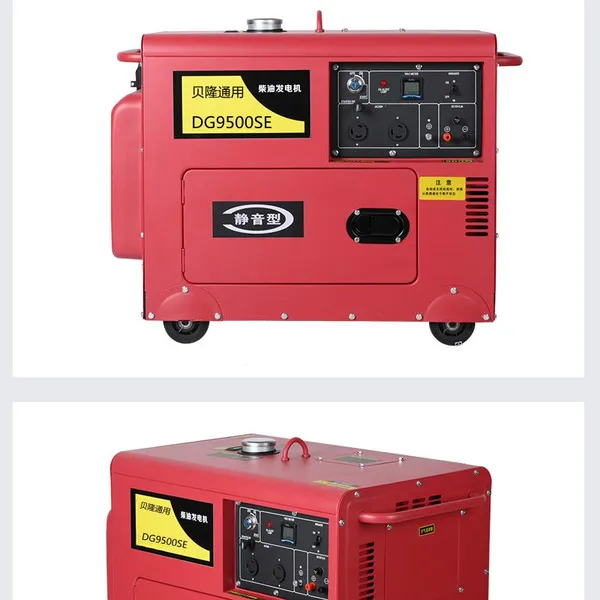

6.5kw Single Phase 220v Silent Diesel Generator 195F Diesel Engine
US$ 640 - 650
MOQ: 10 Sets
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2017
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
6.5KW Three Phase 380V Silent Diesel Generator With 195F Diesel Engine for Industrial UseUS$ 665 - 680MOQ: 10 Sets -
6.5KW Dual Power Dual Voltage 220/380V Silent Diesel Generator With 192F Engine & 100% Copper AlternatorUS$ 690 - 700MOQ: 10 Sets
-
7kw Single Phase 220v Diesel Generator 1100F Diesel EngineUS$ 810 - 820MOQ: 10 Sets
-
7kw Three Phase 380v Diesel Generator 1100F Diesel EngineUS$ 840 - 850MOQ: 10 Sets
-
7kw Dual Power Diesel Generator 1100F Diesel EngineUS$ 870 - 880MOQ: 10 Sets
| Model | DG9500SE |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 110/220.115/230.120/240 |
| Rated Power( KW) | 6.5 7.5 |
| Max. Power(KW) | 7.0 8.0 |
| Rated Output Current（A ) | 28.2 32.6 |
| DC Output | 12V 8.3A |
| Phase | Single phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 195FE |
| Start Method | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 95 * 75 |
| Displacement | 0.532 |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 8.5 9.2 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤280 ≤290 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 910*525*780 |
| Packing Size [mm] (L*W*H) | 940*540*900 |
| Net Weight/Gross Weight[Kg] | 160/167 |
