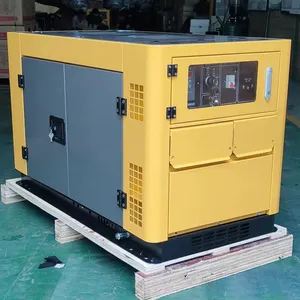

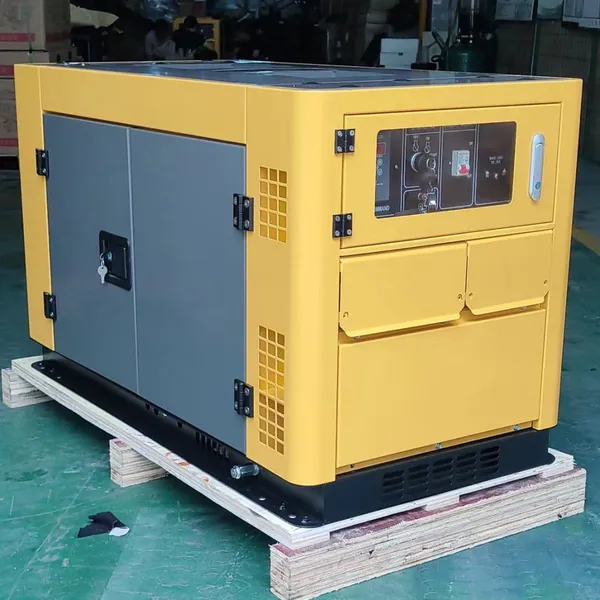

10kw dual power silent diesel generator 10kva dual voltage canpoy diesel generator

Name: 10kw dual power silent diesel generator 10kva dual voltage canpoy diesel generator
Availability: InStock

FOB Price

US$ 2100 - 2200 / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Model	DG15000SED
Frequency[Hz]	50 60
Voltageg[V]	220.230.240.110/220.115/230.120/240.230/380.230/400.240/415
Voltageg[V]	220.230.240.110/220.115/230.120/240.230/380.230/400.240/415
Rated Power( KW)	Single phase 9.5/Three phase 10.5 Single phase 10/Three phase 11
Max. Power(KW)	Single phase 10/Three phase 11.5 Single phase 10.5/Three phase 12
Rated Output Current（A )	Single phase 41.3/Three phase 15 Single phase 43.5/Three phase 15.8
DC Output	12V 8.3A
Phase	Single phase/Three phase
Excitation Method	Brush self-excitation
Power FactorΦ	1.0(0.8)
Insulation Class	F
Fuel Tank Capaciity[L]	26
Engine Model	292FE
Start Method	Electric start
Engine Type	2 cylinders、Vertical、4 stroke、Air-cooled
Bore*Strokke[mm]	2-92*75
Displacement	0.997
Compression Ratio	19:1
Speed[rpm]	3000 3600
Power [Kw]	14.1 15.0
Oil Capacity[L]	2.75
Fuel Consumption[g/kwh]	≤290 ≤297
Fuel No.	Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter.
Oil No.	SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil)
Optional	ATS
	Remote Control
	Intelligent digital display panel
Size [mm] (LWH)	1250650760
Packing Size [mm] (LWH)	1300700880
Net Weight/Gross Weight[Kg]	300/320
