Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 10KW Dual Power Open Diesel Generator With 292FE Engine & 100% Copper Alternator

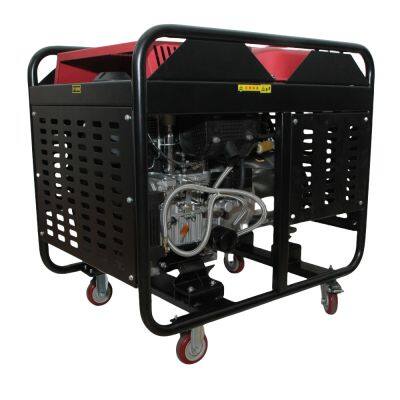

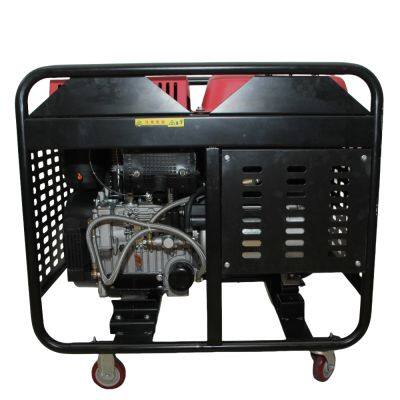

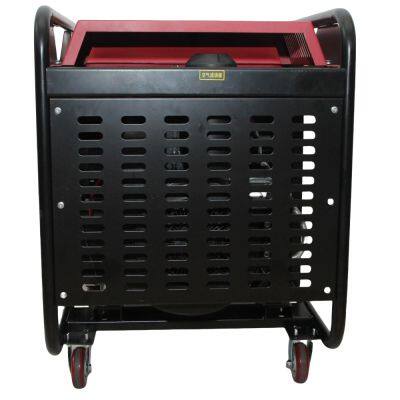

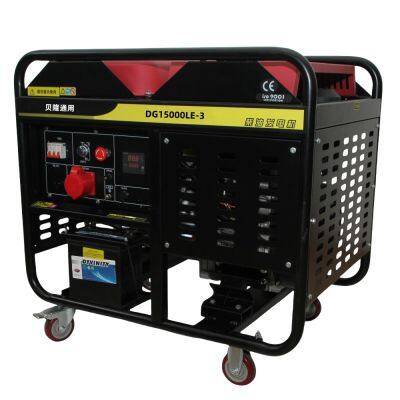

10KW Dual Power Open Diesel Generator With 292FE Engine & 100% Copper Alternator
US$ 1650 - 1700
MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
10kw Single Phase 220v Silent Diesel Generator 292F Diesel EngineUS$ 2000 - 2100MOQ: 10 Sets -
10kw Three Phase 380v Silent Diesel Generator 292F Diesel EngineUS$ 2050 - 2150MOQ: 10 Sets
-
10kw Dual Power Silent Diesel Generator 10kva Dual Voltage Canpoy Diesel GeneratorUS$ 2100 - 2200MOQ: 10 Sets
-
Belon Power DGW190AC Diesel Welding GeneratorUS$ 610 - 620MOQ: 20 Sets
-
DGW230AC Diesel Welding Generator High Efficiency & Stable Welding Power SourceUS$ 670 - 680MOQ: 20 Sets
Type
Basic Diesel Generator
Warranty
1 year
Stroke
Four Stroke
Usage
Common Units, Standby Unit, Emergency Crew
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
send parts with next order
Installation Method
Portable
Excitation Mode
AC Rotating Exciter
Conditions of Use
Land Use
Landuse Type of Unit
Ordinary
Output Type
Other, Single/Three Phase
Transport Package
wooden case
Specification
DG15000LED
Trademark
Belon Power
Origin
Chongqing, China
| Model | DG15000LED |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220.230.240.110/220.115/230.120/240.230/380.230/400.240/415 |
| Rated Power( KW) | Single phase 10/Three phase 11 Single phase 10.5/Three phase 11.5 |
| Max. Power(KW) | Single phase 10.5/Three phase 12 Single phase 11/Three phase 12.5 |
| Rated Output Current（A ) | Single phase 43.5/Three phase 15.8 Single phase 45.6/Three phase 16.6 |
| DC Output | 12V 8.3A |
| Phase | Single phase/Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 35 |
| Engine Model | 292FE |
| Start Method | Electric start |
| Engine Type | 2 cylinders、Vertical、4 stroke、Air-cooled |
| Bore*Strokke[mm] | 2-92*75 |
| Displacement | 0.997 |
| Compression Ratio | 19:1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 14.1 15.0 |
| Oil Capacity[L] | 2.75 |
| Fuel Consumption[g/kwh] | ≤290 ≤297 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 930*660*780 |
| Packing Size [mm] (L*W*H) | 980*710*830 |
| Net Weight/Gross Weight[Kg] | 240/255 |
