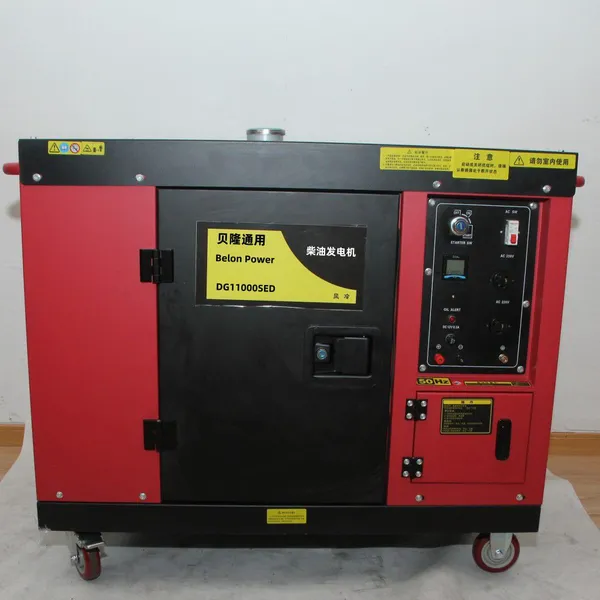

7kw single phase 220v silent diesel generator

Name: 7kw single phase 220v silent diesel generator
Availability: InStock

FOB Price

USD $970 - $980 / Set

10 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Model	DG11000SE
Frequency[Hz]	50 60
Voltageg[V]	110/220.115/230.120/240
Voltageg[V]	110/220.115/230.120/240
Rated Power( KW)	7.0 7.5
Max. Power(KW)	7.5 8.0
Rated Output Current（A )	23.3 32.6
DC Output	12V 8.3A
Phase	Single phase
Excitation Method	Brush self-excitation
Power FactorΦ	1.0(0.8)
Insulation Class	F
Fuel Tank Capaciity[L]	25
Engine Model	1100FE
Start Method	Electric Start
Engine Type	Single cylinder,4-stroke,air-cooled, vertical
Bore*Strokke[mm]	1-100*85
Displacement	0.667L
Compression Ratio	19.5：1
Speed[rpm]	3000 3600
Power [Kw]	10 10.5
Oil Capacity[L]	2
Fuel Consumption[g/kwh]	≤285 ≤295
Fuel No.	Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter.
Oil No.	SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil)
Optional	ATS
	Remote Control
	Intelligent digital display panel
Size [mm] (LWH)	1140670770
Packing Size [mm] (LWH)	12207951000
Net Weight/Gross Weight[Kg]	175/185
