6.5KW Three Phase 380V Silent Diesel Generator With 195F Diesel Engine for Industrial Use
US$ 665 - 680
MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
6.5kw Dual Power Silent Diesel Generator 6.5kw Dual Voltage Canpoy Diesel GeneratorUS$ 690 - 700MOQ: 10 Sets -
7kw Single Phase 220v Diesel Generator 1100F Diesel EngineUS$ 810 - 820MOQ: 10 Sets
-
7kw Three Phase 380v Diesel Generator 1100F Diesel EngineUS$ 840 - 850MOQ: 10 Sets
-
7kw Dual Power Diesel Generator 1100F Diesel EngineUS$ 870 - 880MOQ: 10 Sets
-
7kw Single Phase 220v Silent Diesel GeneratorUS$ 970 - 980MOQ: 10 Sets
Type
Basic Diesel Generator
Warranty
1 year
Stroke
Four Stroke
Usage
Common Units, Standby Unit, Emergency Crew
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
send parts with next order
Installation Method
Portable
Excitation Mode
AC Rotating Exciter
Conditions of Use
Land Use
Output Type
AC Three Phase
Transport Package
wooden case
Specification
DG9500SE-3
Trademark
Belon Power
Origin
Chongqing, China

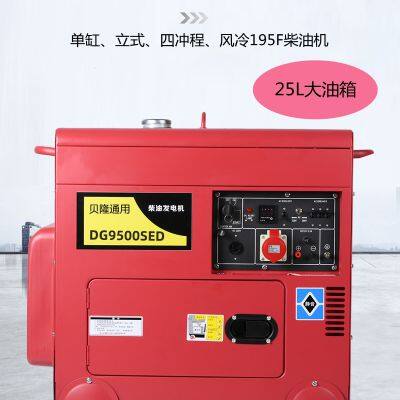

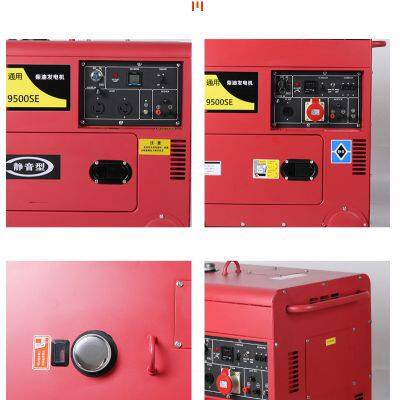

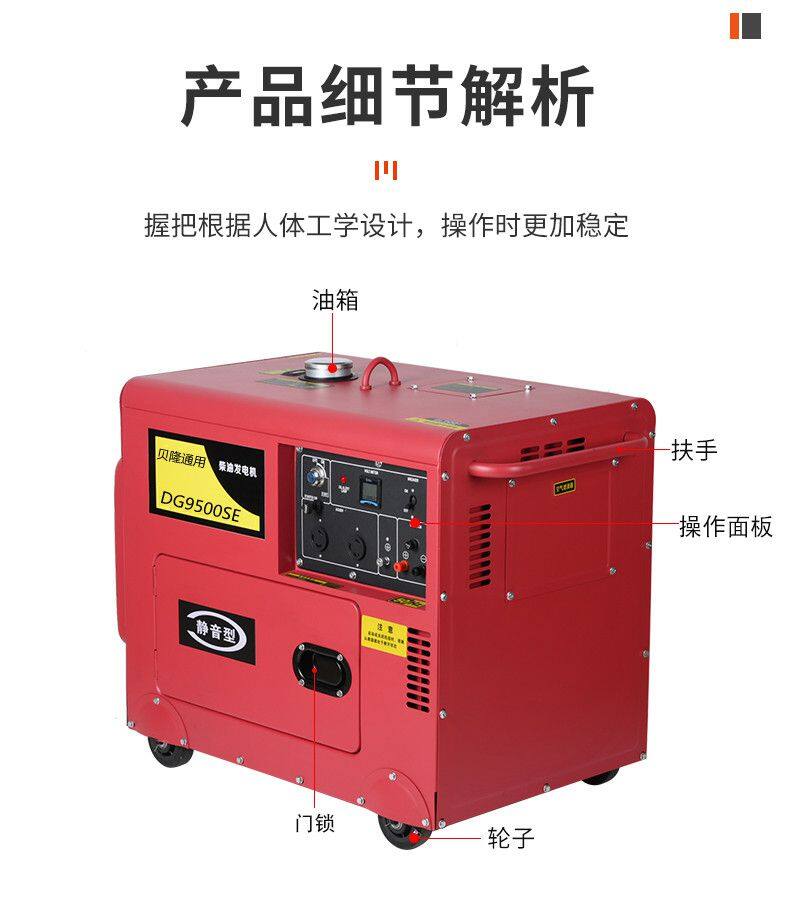

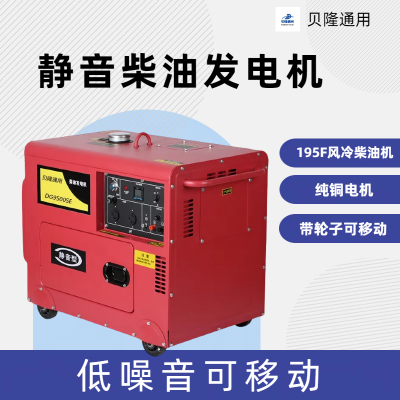

6.5KW Three Phase 380V Silent Diesel Generator with 195F Diesel Engine for Industrial Use
| Model | DG9500SE-3 |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220/380.230/400.240/415 |
| Rated Power( KW) | 6.5 7.5 |
| Max. Power(KW) | 7.0 8.0 |
| Rated Output Current（A ) | 9.4 10.8 |
| DC Output | 12V 8.3A |
| Phase | Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 195FE |
| Start Method | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 95 * 75 |
| Displacement | 0.532 |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 8.5 9.2 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤280 ≤290 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 910*525*780 |
| Packing Size [mm] (L*W*H) | 940*540*900 |
| Net Weight/Gross Weight[Kg] | 160/167 |
