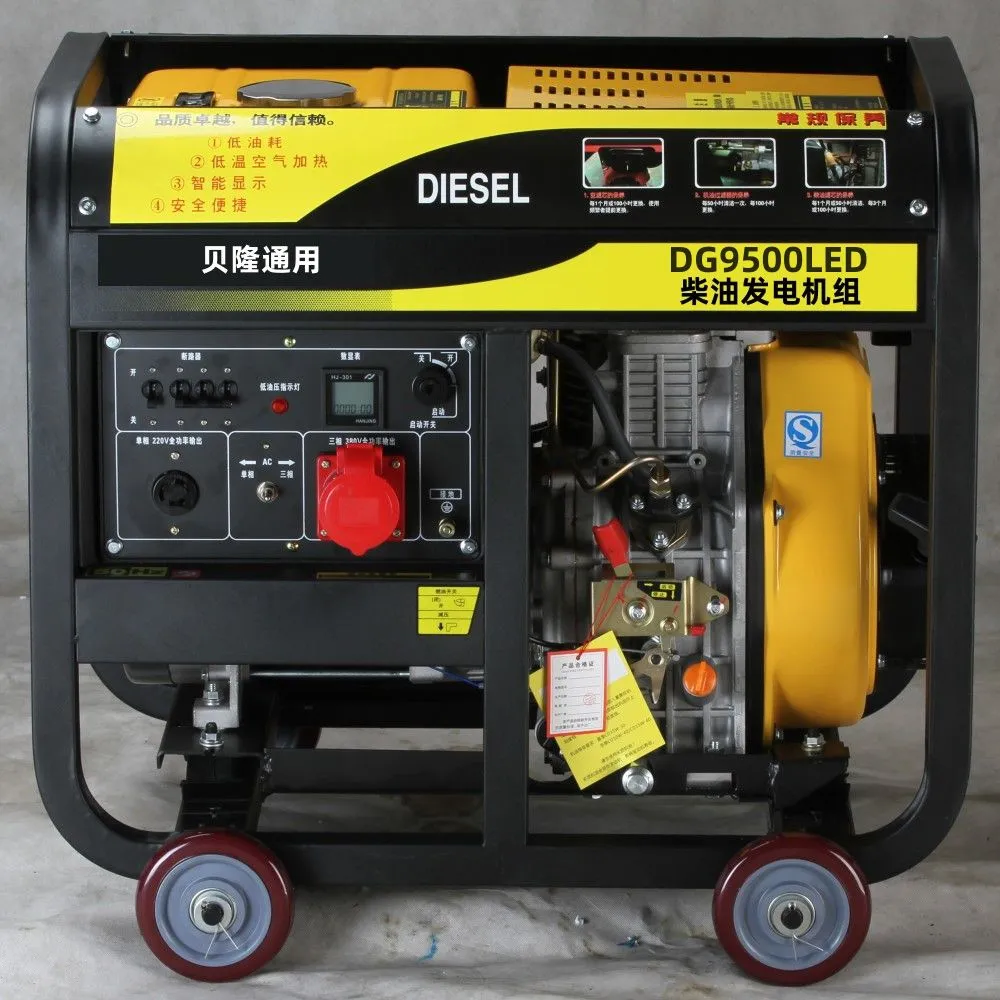

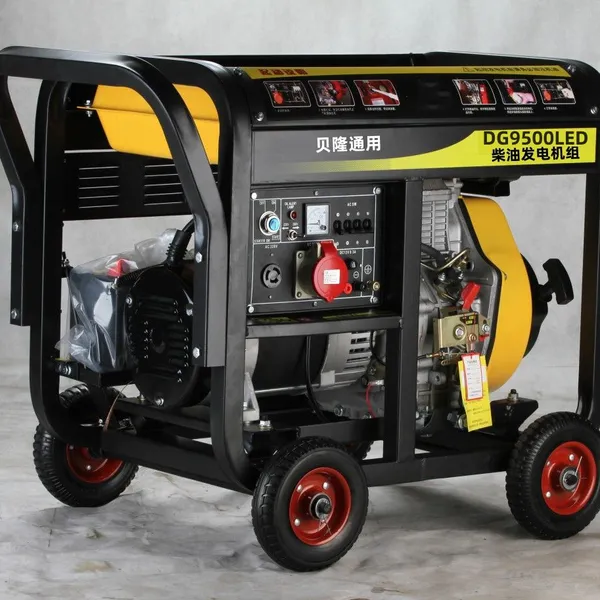

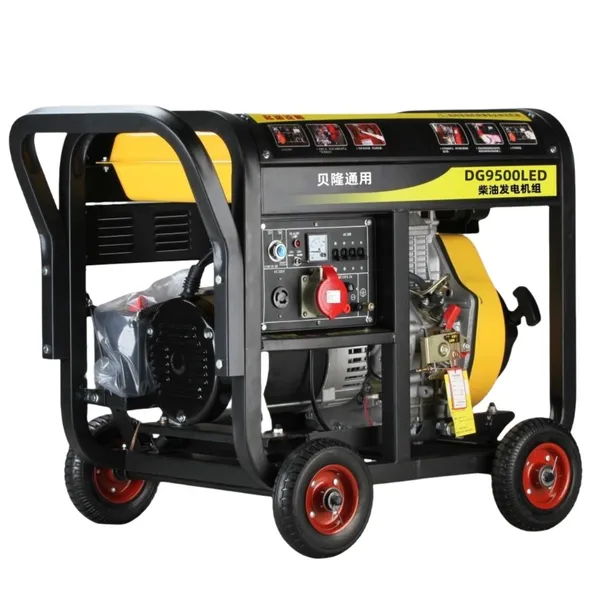

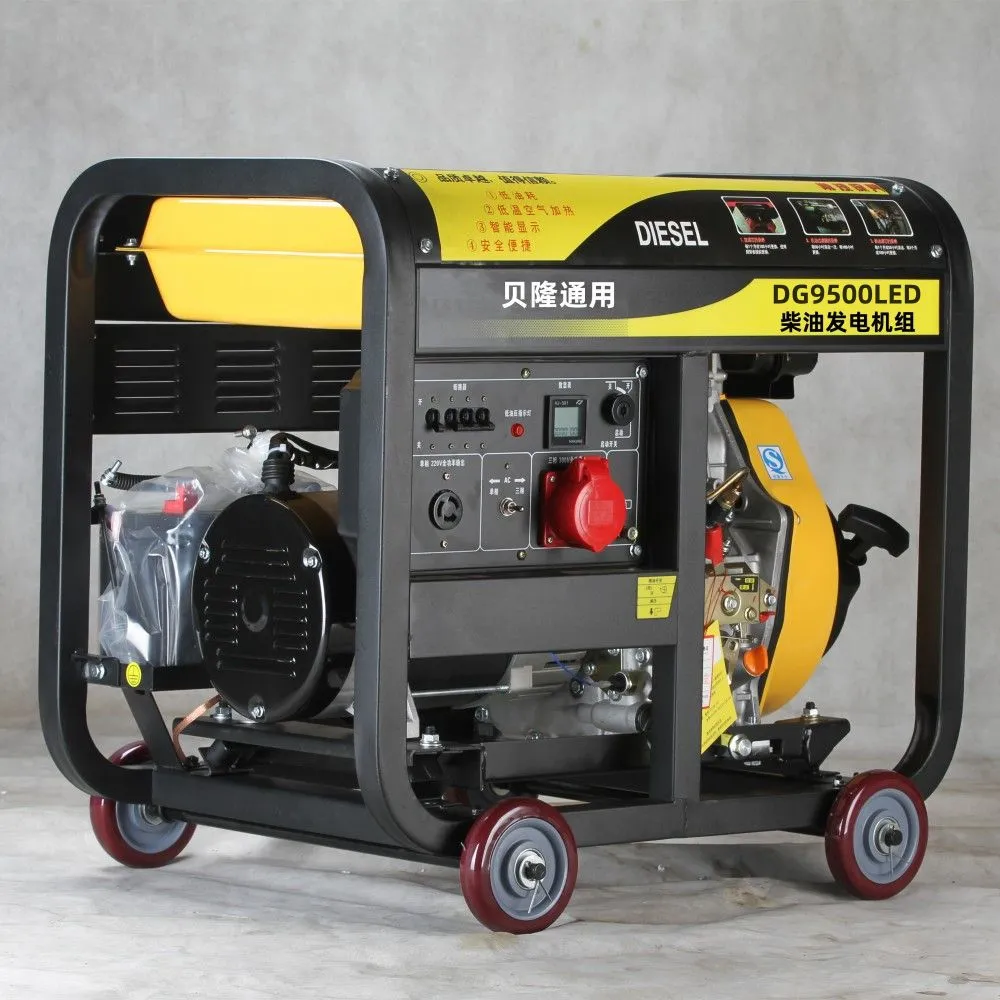

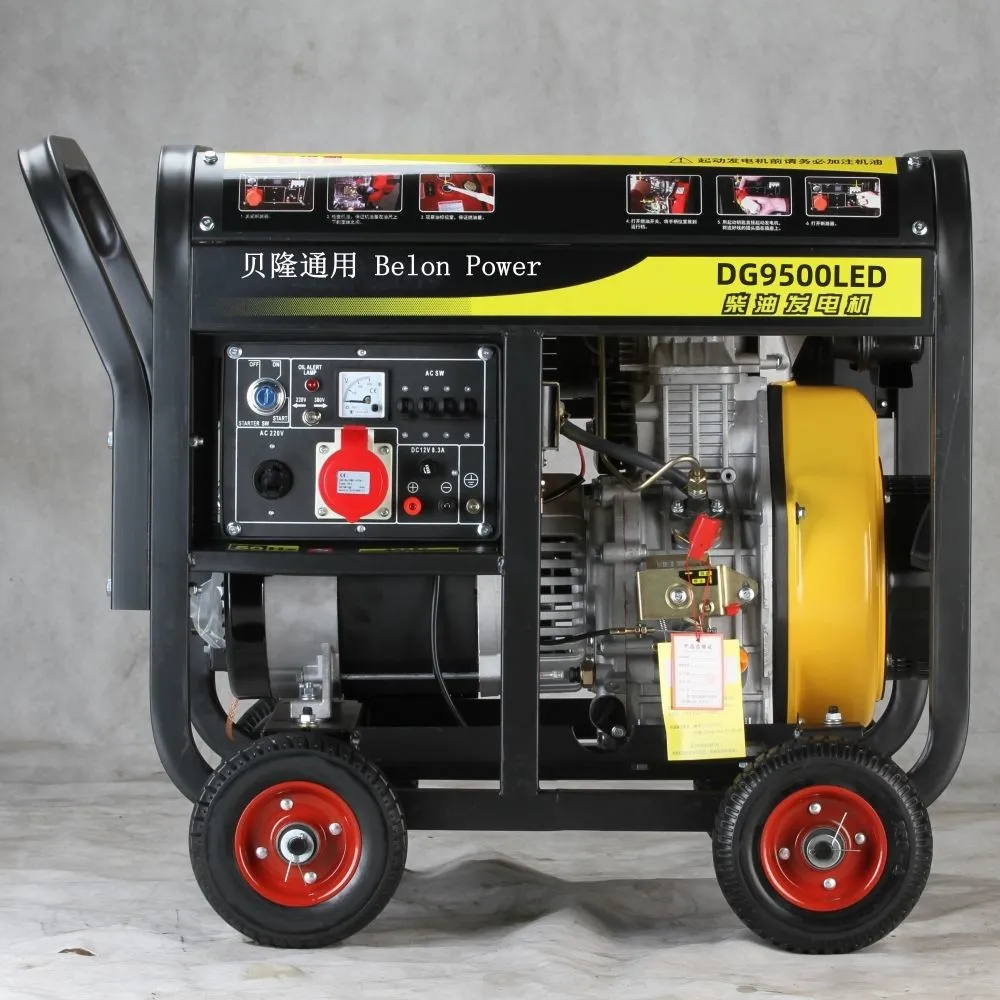

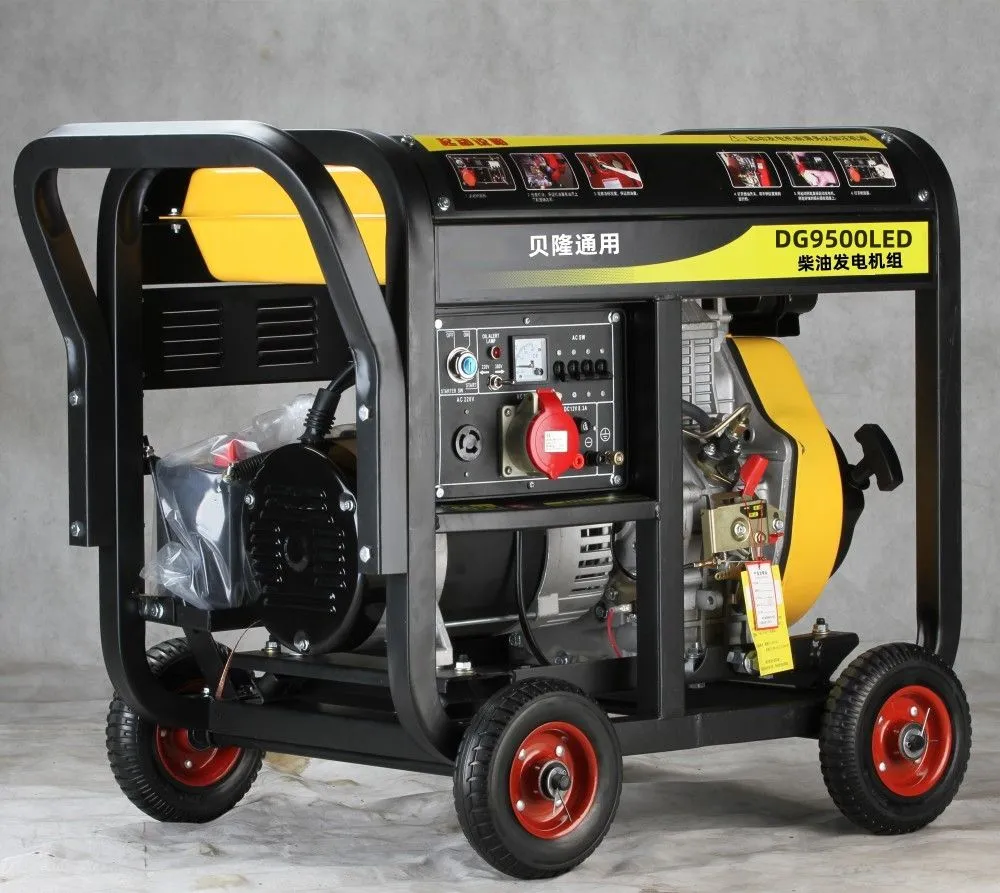

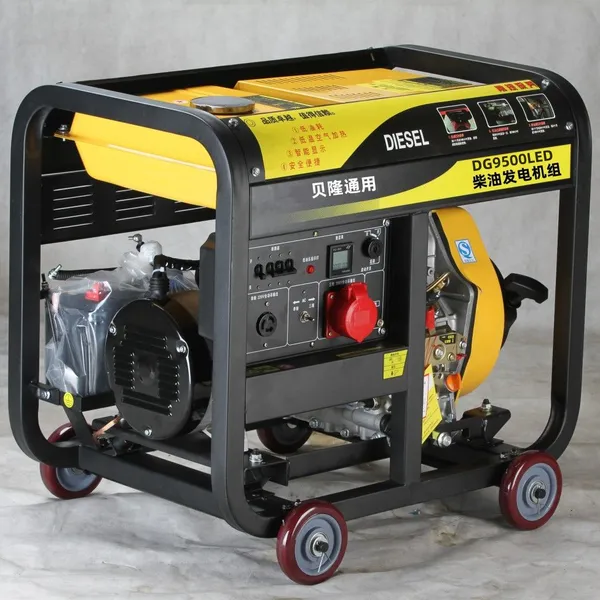

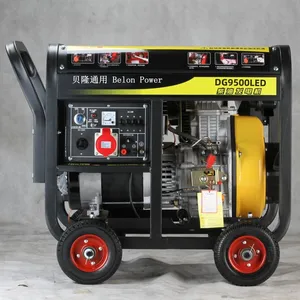

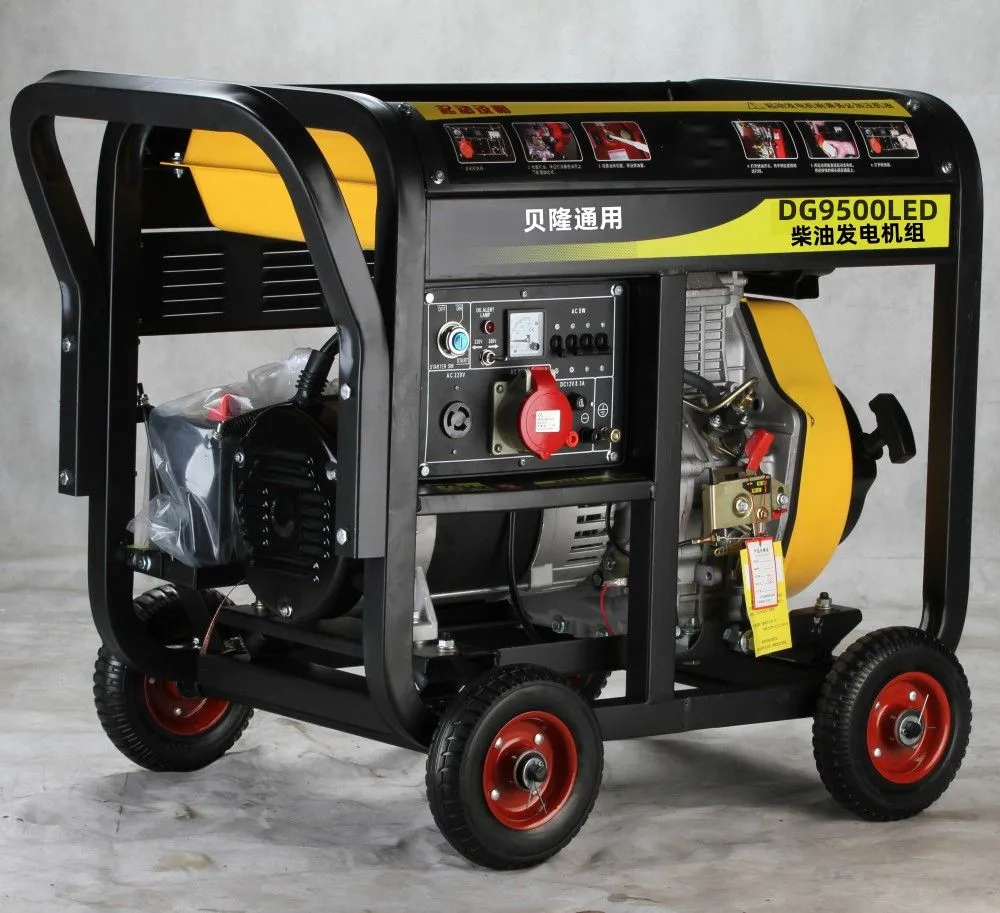

6.5KW Three Phase 380V Open Frame Diesel Generator | 195F Engine | 100% Copper Alternator
Product Spotlights
6.5KW three phase 380V open type diesel generator, powered by 195F diesel engine, stable performance and low fuel consumption. Equipped with 100% copper alternator for higher efficiency, lower heat and longer service life. Open frame design for easy maintenance and heat dissipation. Suitable for con
US$ 550 - 560
MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
25 days
Related Products
-
6.5kw Dual Power Diesel Generator 195F Diesel EngineUS$ 580 - 590MOQ: 10 Sets -
6.5kw Single Phase 220v Silent Diesel Generator 195F Diesel EngineUS$ 640 - 650MOQ: 10 Sets
-
6.5KW Three Phase 380V Silent Diesel Generator With 195F Diesel Engine for Industrial UseUS$ 665 - 680MOQ: 10 Sets
-
6.5KW Dual Power Dual Voltage 220/380V Silent Diesel Generator With 192F Engine & 100% Copper AlternatorUS$ 690 - 700MOQ: 10 Sets
-
7kw Single Phase 220v Diesel Generator 1100F Diesel EngineUS$ 810 - 820MOQ: 10 Sets
Type
Basic Diesel Generator
Warranty
1 year
Stroke
Four Stroke
Usage
Common Units
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
send parts with next order
Installation Method
Portable
Excitation Mode
AC Rotating Exciter
Conditions of Use
Land Use
Output Type
AC Three Phase
Transport Package
Carton
Specification
DG9500LE-3
Trademark
Belon Power
Origin
Chongqing
6.5KW Three Phase 380V Open Frame Diesel Generator | 195F Engine | 100% Copper Alternator
| Model | DG9500LE-3 |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220/380.230/400.240/415 |
| Rated Power( KW) | 6.8 7.8 |
| Max. Power(KW) | 7.3 8.3 |
| Rated Output Current（A ) | 9.8 11.2 |
| DC Output | 12V 8.3A |
| Phase | Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 195FE |
| Start Method | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 95 * 75 |
| Displacement | 0.532 |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 8.5 9.2 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤280 ≤290 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | R720*485*615/25S700*485*600/ 35S740*505*620 |
| Packing Size [mm] (L*W*H) | R740*500*635/25S710*500*620/ 35S760*515*630 |
| Net Weight/Gross Weight[Kg] | R115/25S121/35S125 R118/25S/124/35S128 |
