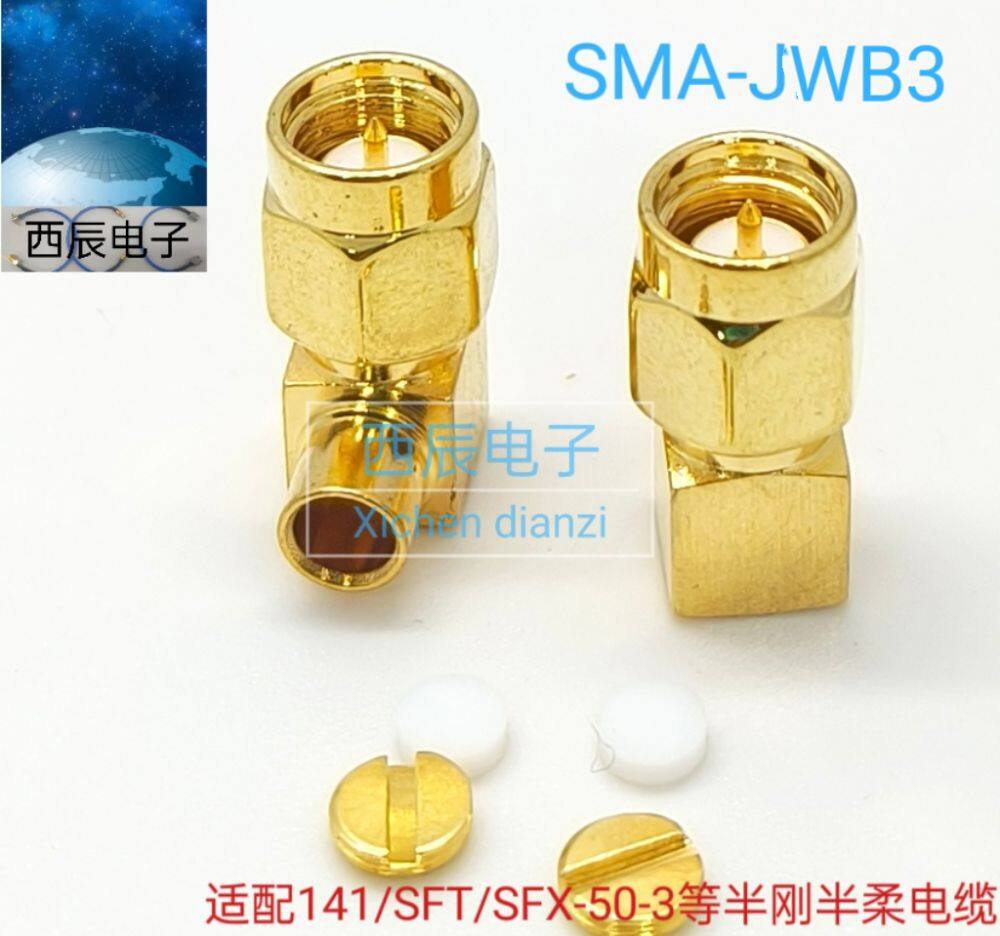

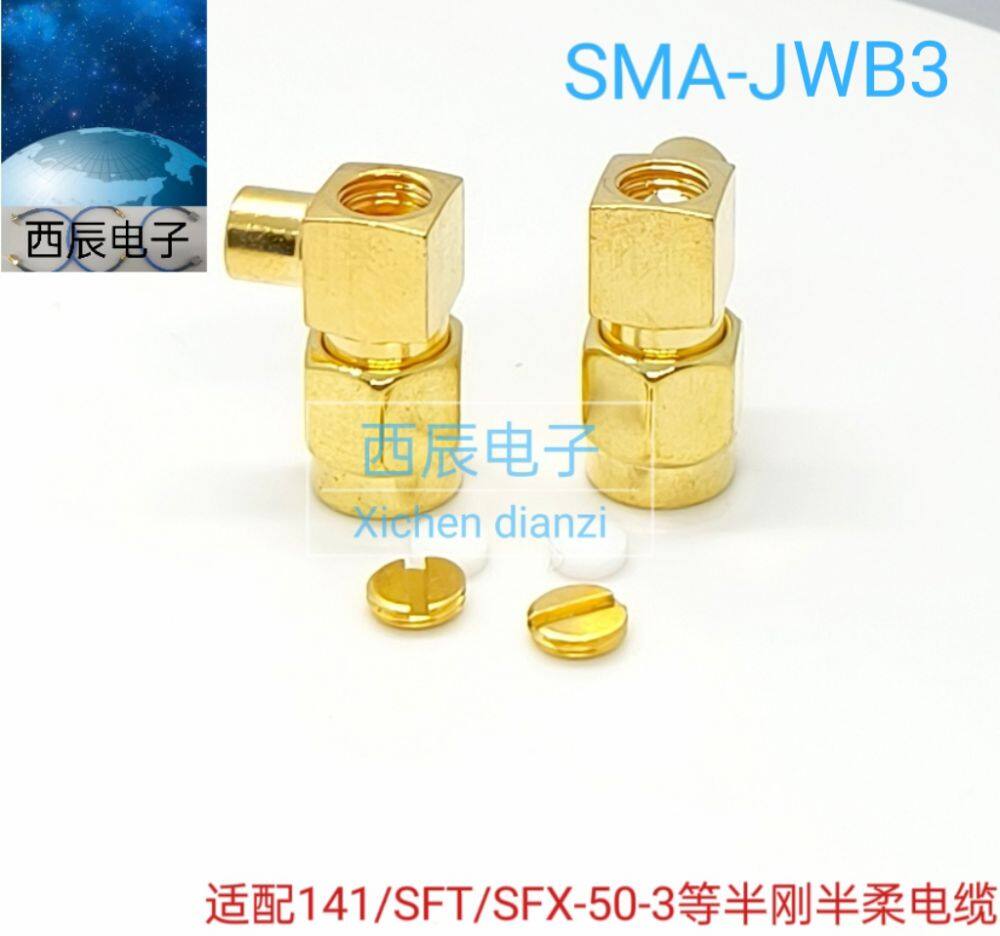

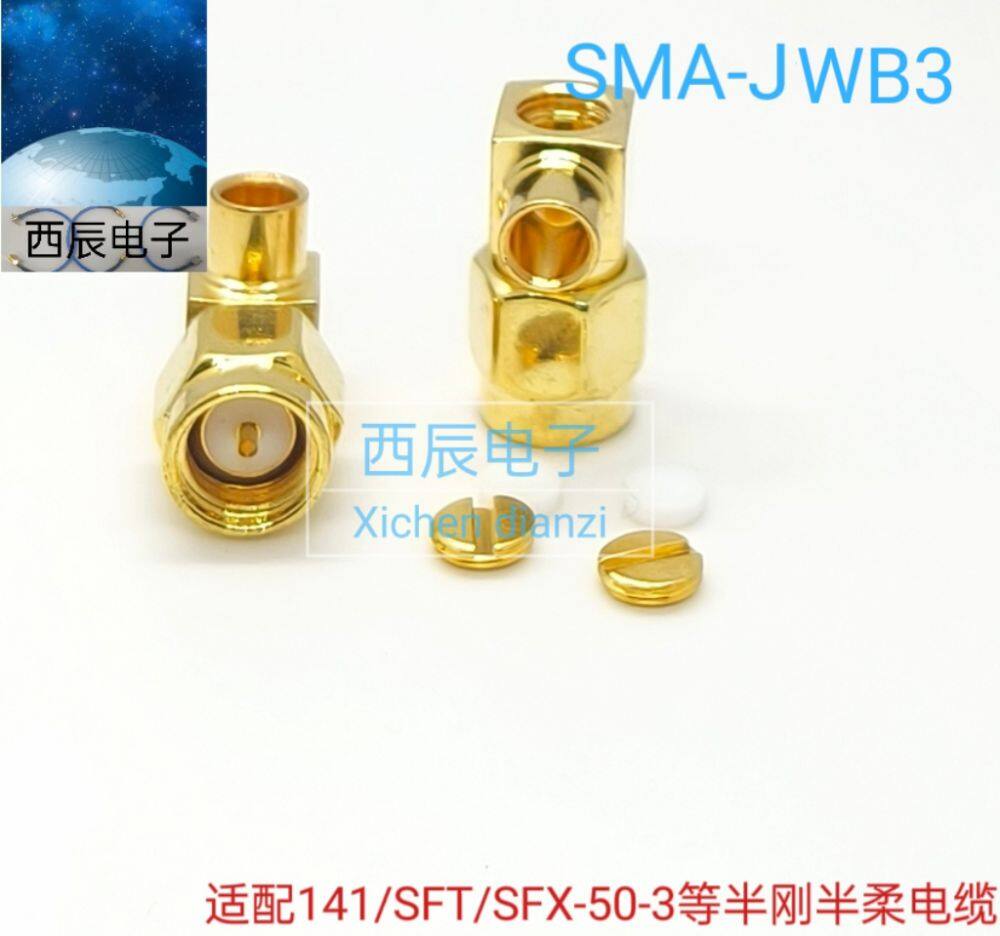

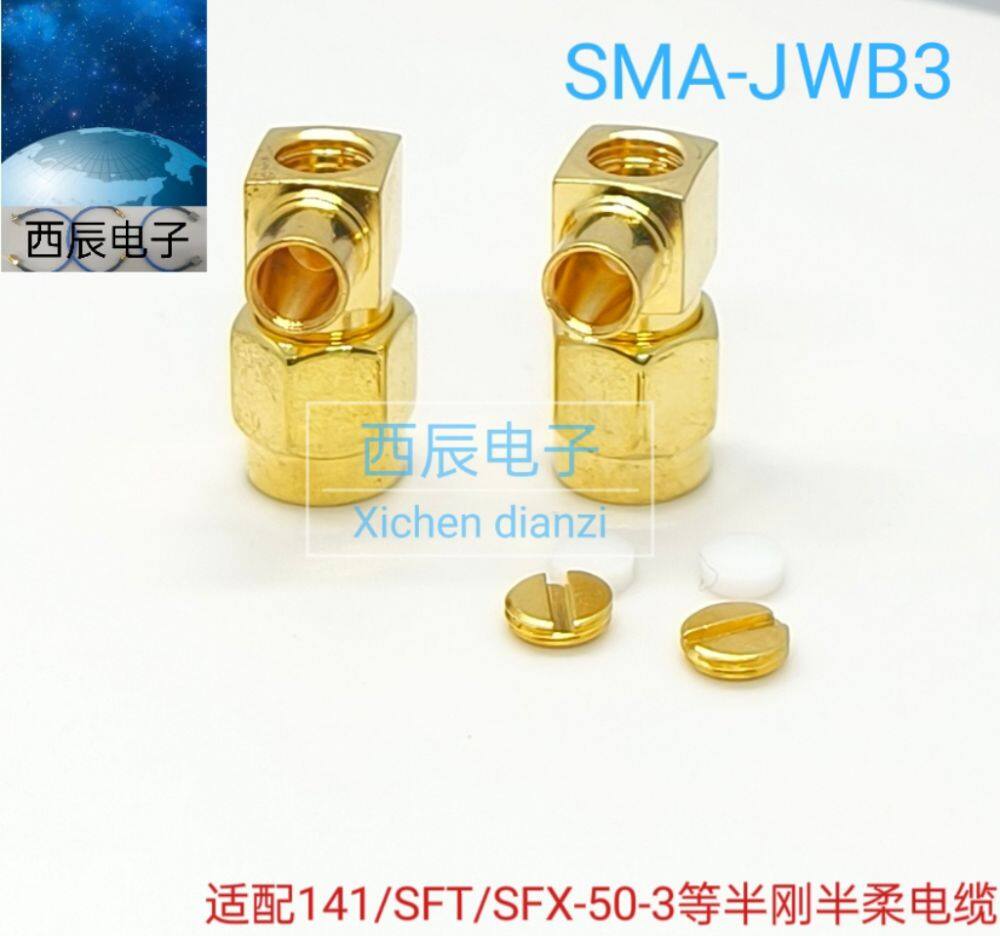

RF Coaxial ConnectorSMA-JWB3
- zhengjiang port
- L/C
- 2 days
You May Like
Product Details
| Place of Origin | China | Type | SMA | |
| Application | RF | Gender | Male |
Product Description
Series of SMA products one application extensive small-scale coaxial person who join that whorl join,it has a reliable characteristic with long life-span that the width,performance are excellent,high frequently.Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequtently.
1 Technical specifcations
1.1 Temperture range -65o-+165o
1.2 Vibration MIL-STD-202,Method 213
1.3 Impedance 50Ω
1.4 Frequency Range DC-12.4GHz (semi rigid cable0-18GHz)
1.5 Working Voltage 335V max(valid value)
1.6 Withstand Voltage 1000V rms(minimum sea level)
1.7 Contact resistance center contact ≤3mΩ outer contact ≤2mΩ
1.8 Insulation resistance ≥5000MΩ
1.9 Insertion loss ≤0.15dB/6GHz
1.10 VSWR straight :flexible cable ≤1.10+0.002f
semi rigid cables≤1.05+0.001f
right angle:flexible cable ≤1.20+0.003f
semi rigid cables≤1.10+0.001f
1.11 Durability(mating) ≥500tims(cycles)
2 Material(Plating)
2.1 shell brass gold plated
2.2 contact pin brass gold plated
2.3 socket beryllium gold plated
2.4 elastic contact beryllium gold plated
2.5 nsulator PTFE
2.6 crimping suite copper alloy nickel or gold plated
2.7 O-ring sealing 6146 silastic
3 Applicable standard
MIL-C-39012;
CECC22110;
IEC 60169-15
