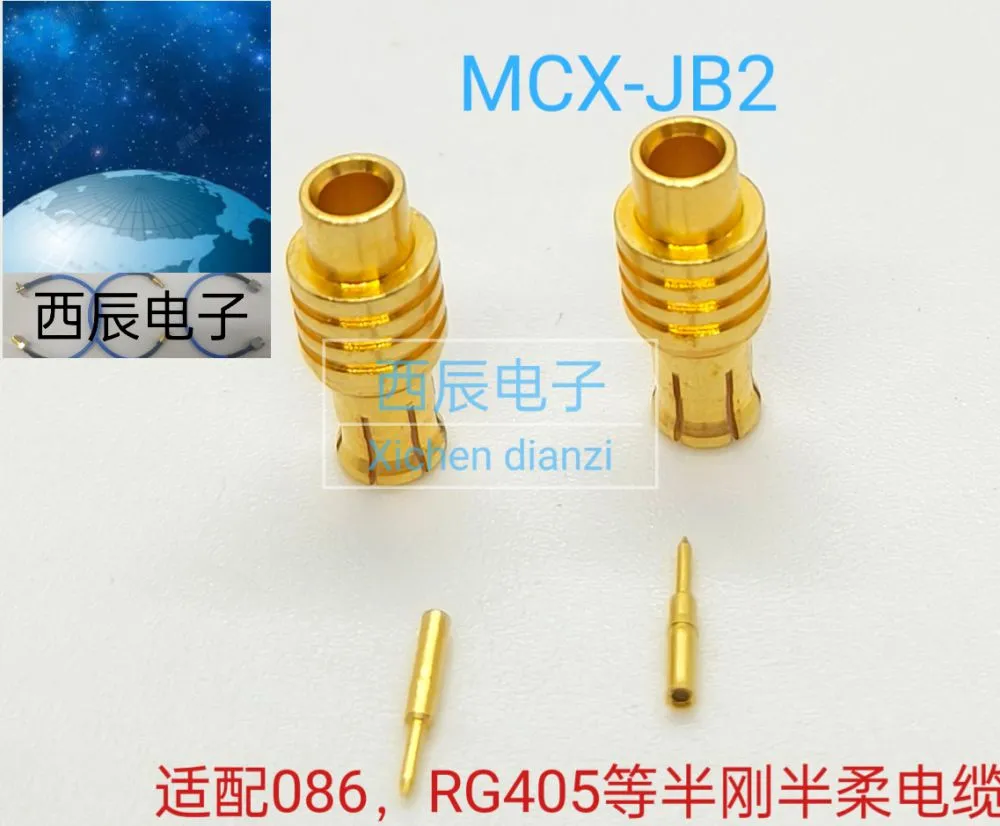

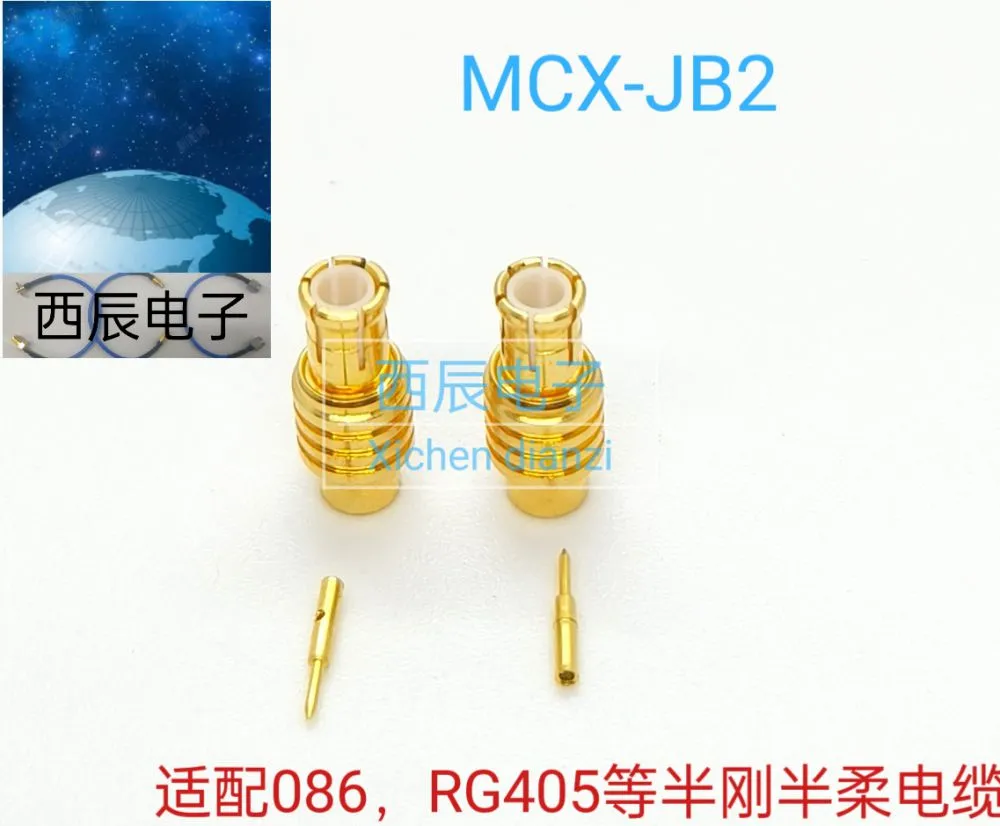

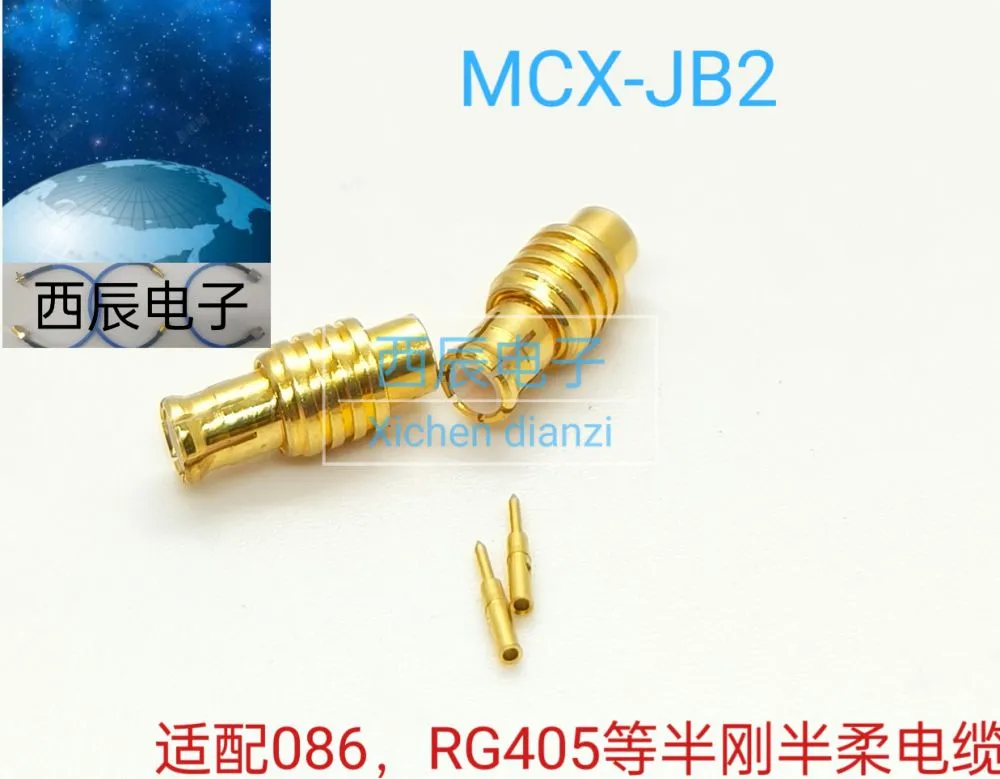

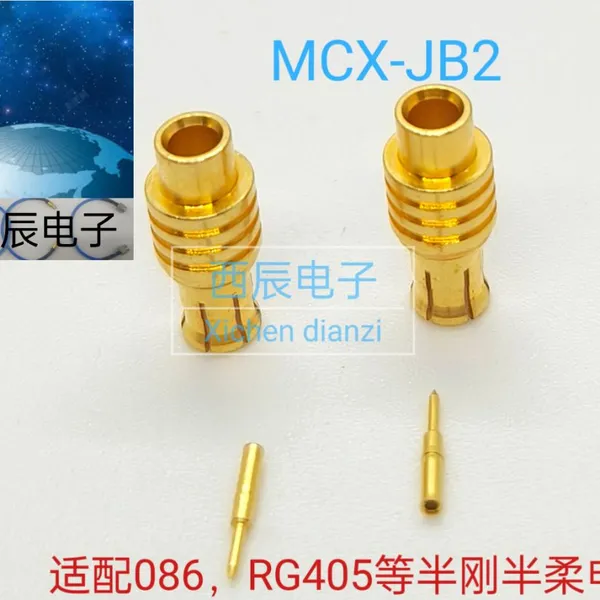

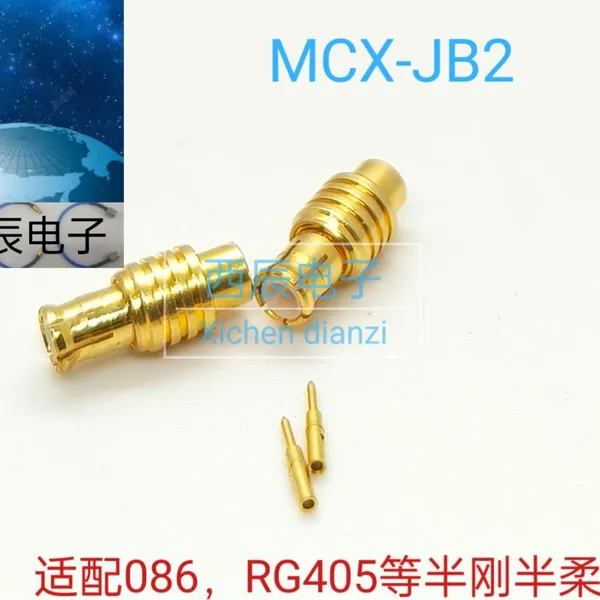

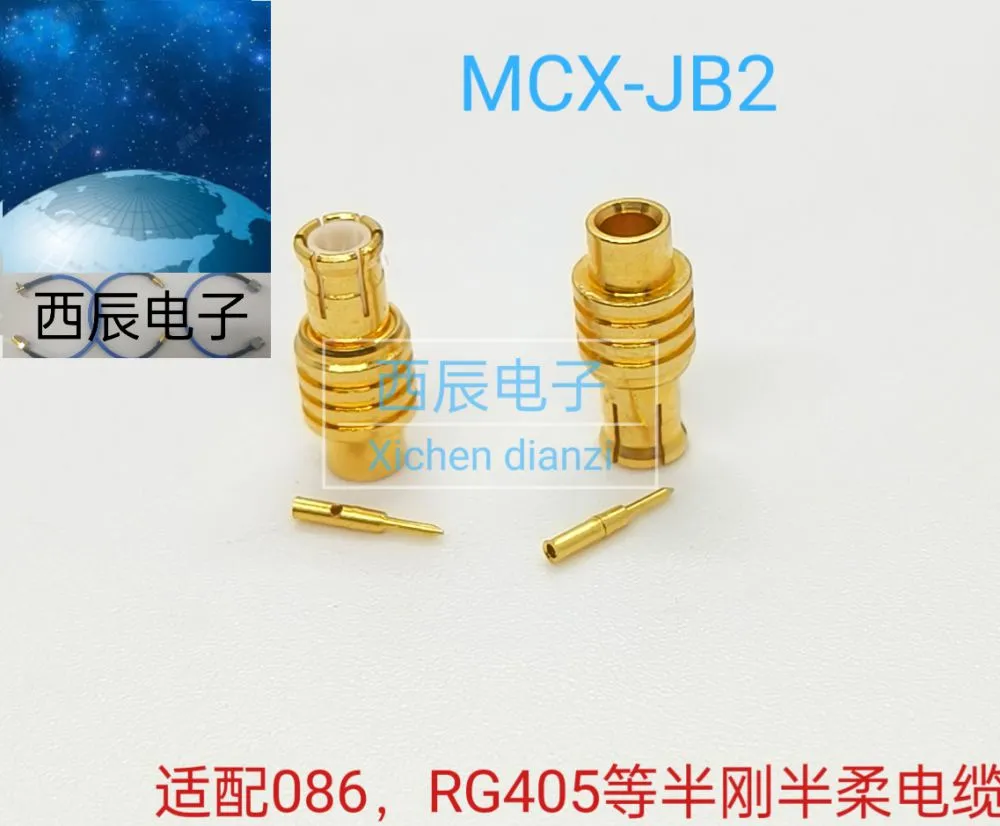

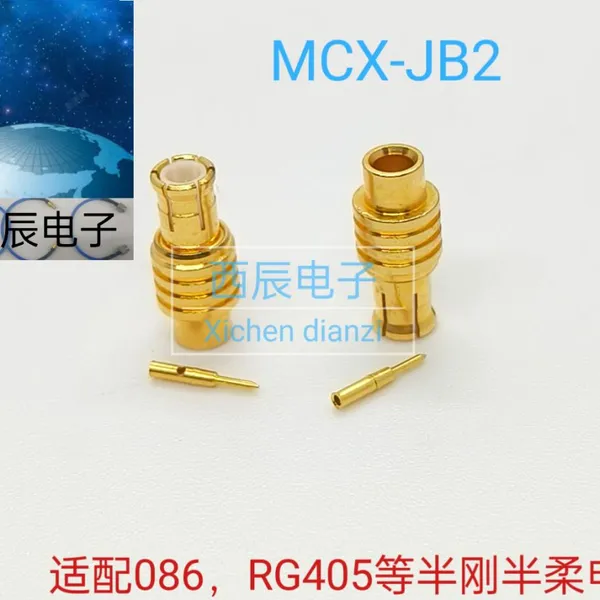

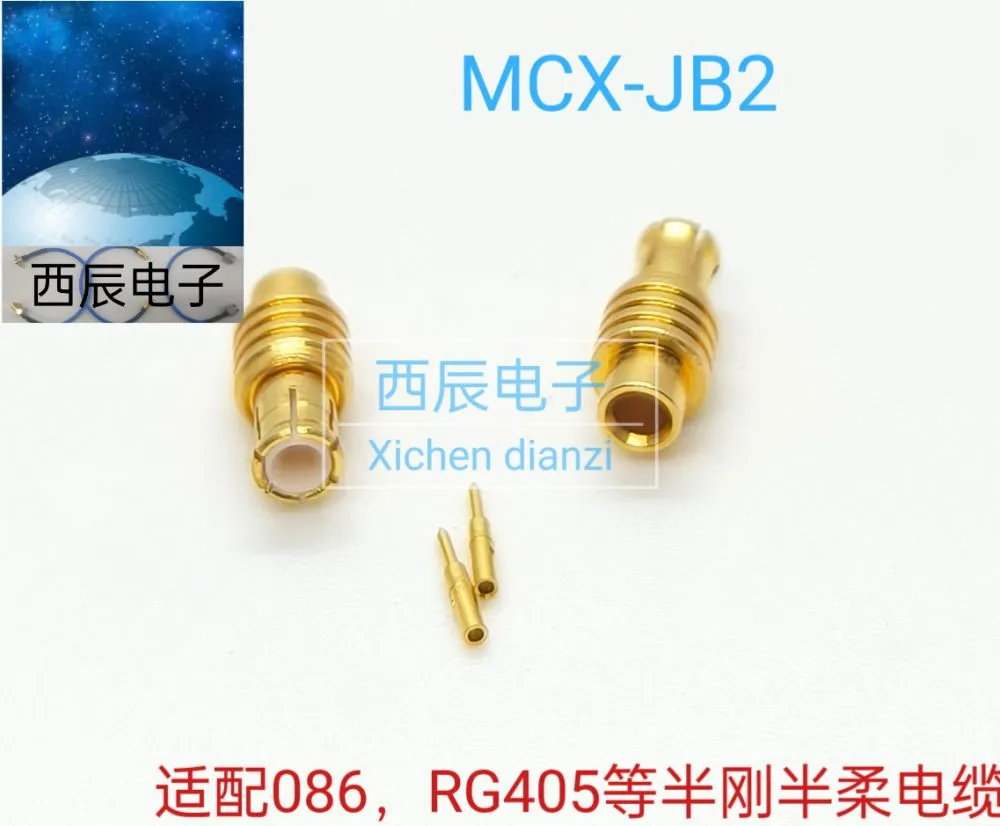

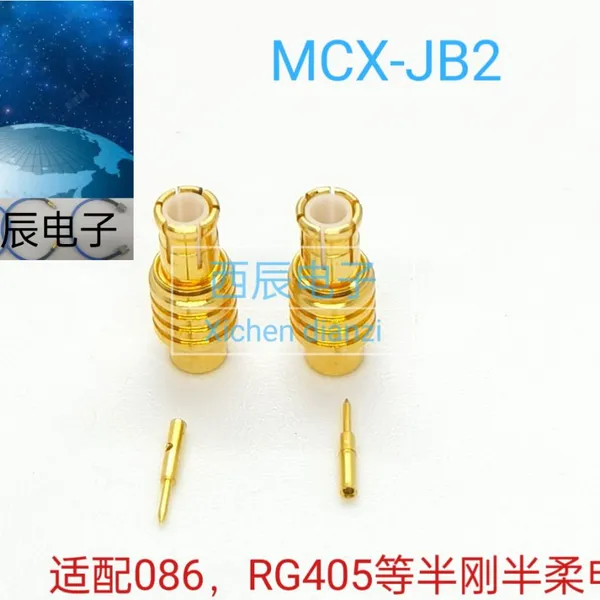

The series of MCX radio frequency joining device is that one kind is since pushed the lock type joinning device small-scaly,it has a small,light,characteristic with compact structure.Small-scale electronic equipment or network system that can be used for requiring to volume,weight and installation way.
1 Technical specifcations
1.1 Temperture range -65o-+155o
1.2 Vibration 98m/s(acceleration 10g)10-500Hz
1.3 Impedance 50Ω ，75Ω
1.4 Frequency Range DC-6GHz
1.5 Working Voltage 250V (50Ω)
1.6 Withstand Voltage 750V （75Ω）
1.7 Contact resistance center contact ≤5mΩ outer contact ≤2.5mΩ
1.8 Insulation resistance ≥1000MΩ
1.9 Insertion loss ≤0.15dB/6GHz
1.10 VSWR straight ≤1.15
right angle ≤1.25
1.11 Durability(mating) ≥500tims(cycles)
2 Material(Plating)
2.1 shell brass gold plated
2.2 contact pin brass gold plated
2.3 socket beryllium gold plated
2.4 elastic contact beryllium gold plated
2.5 nner conductor beryllium or tin brass gold plated
2.6 nsulator PTFE
2.7 crimping suite copper alloy gold plated
2.8 O-ring sealing 6146 silastic
3 Applicable standard
CECC22220;
IEC 60169-36.
