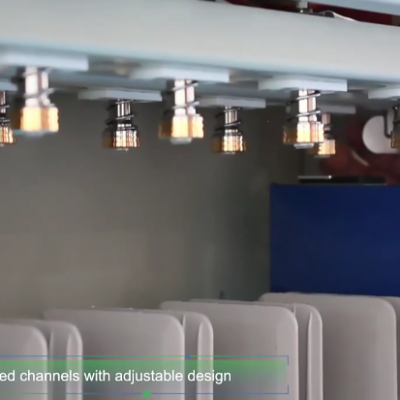

Help CenterAitop 5v30a Pristmatic Battery Formation Machine Cell Grading Machine Testing Equipment For Prismatic Cell Pack Assembly Charging Discharging Life Cycle Testing
Related Products
-
The Latest High-Power Battery Tester 5V30A/Optional Other Models 5v10a 20a 60a 100a Battery Charge Discharge MachineUS$ 1000 - 3000MOQ: 1 Piece -
The Latest 5V30A High-Precision Tester for Battery 5v10a 20a 60a 100a Battery Charge Discharge MachineUS$ 1000 - 3000MOQ: 1 Piece
-
AITOP 5v6a Feedback Energy Saving Regeneration 18650 Cycler Tester 256CH 512ch 5V10A 33140 Lithium Battery Cell Testing Capacity TesterUS$ 3400 - 5800MOQ: 1 Piece
-
Aitop Prismatic Battery Manual Stacking Strapping Pressing Machine for Prismatic Battery Automatic Assembly LineCNY 20000 - 26000MOQ: 1 Piece
-
Aitop Prismatic Battery Stacking Strapping Pressing Machine for Prismatic Battery Automatic Assembly LineCNY 38000 - 46000MOQ: 1 Piece
The test instrument can test the battery charge,discharge,short circuit protection,internal resistance,battery pressure drop,identification resistance,thermistor,capacity and so on,it takes only one second for the test
This tester can charge discharge and find life cycles of Cylindrical as well as Prismatic and Pouch Lithium Cells. The machine has 8 channels so 8 cells can be tested in isolation . Each channel has its own program .
| Measuring range | Range | Resolving power | accuracy |
| Voltage measurement | 0-10V | 10mV | 10V±1% |
| Current measurement | 0-2A | 1mA | 2A±2% |
| Internal resistance measurement | 0-1000mΩ | 1mΩ | 100mΩ±2% |
| Capacity measurement | 0-2000mAH | 1mAH | 2AH±2% |
| Resistance measurement | 0.1-999.9KΩ | 0.1KΩ | 10KΩ±2% |
Cylindrical Battery Pack Assembly Machine | ||
Item No. |
Product Name |
Description |
1 |
Internal Resistance Tester |
1. Voltage test V1: range : 0-4.999V 2. Voltage test V2: range : 0-29.99V 3. Resistance test R1: range : 0.1-200 mΩ 4. Resistance test R2: range :1-2000 mΩ |
| 2 | 5/10 Channel Automatic Battery sorting Sorter machine |
1.Sorting Speed:80PPM 2.Suitable for:all types of cylindrical cell |
3 |
Insulation Paper Sticking Machine |
1.Productivity:4000pcs/h; single 4pcs 2.Suitable:one machine for one type cylindrical cell |
4 |
Manual AC Pneumatic Spot Welder |
1.Welding Thickness:0.03-0.2mm 2.Maximum power output of transformer:15 KVA |
5 |
Manual DC Pneumatic Spot Welder |
1. Welding Thickness:0.03-0.25mm 2. Maximum Output Short Circuit Current:5000A |
6 |
Automatic 5000A/8000A Single Side Spot Welding Machine |
1. Spot Welding Speed:0.35s/point; 2800pcs / hour 2. X-Y-axis Travel:400*500mm (can be customized according to request) |
7 |
Automatic 5000A/8000A Double Sides Spot Welding Machine |
1. Spot Welding Speed:0.35s/spot, 5500pcs/h 2.Y-Z-axis Travel:400*500mm (can be customized according to request) |
8 |
Automatic 5000A/8000A Single Side Rotary Welding Head Spot Welding Machine |
1. Welding Material: pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm 2. Maximum Spot Welding Speed:0.35S/point;2800pcs/h 3. Maximum Stroke Size Range: X:500mm,Y:400 mm,Z:35mm, R:180º The distance between tooling platform and welding needle can be adjusted by 300 mm. |
9 |
Automatic 5000A/8000A Double Sides Rotary Welding Head Spot Welding Machine |
1.Rotary Welding Head:R:180º The distance between tooling platform and welding needle can be adjusted by 300 mm. 2. Welding Travel: Y: 500mm; Z; Z2:350mm(or 400mm) |
10 |
Automatic Assembly Line Double Side Spot Welding Machine |
Suitable for assembly line battery pack production |
11 |
Battery Pack PVC Covering Machine |
1. Transmit Speed: 0-15m/min 2.Shrinking Speed:0-300C 3.Load-bearing:30kg |
12 |
30V 10A 20A Battery Pack Aging Cabinet |
1.Voltage testing range:4.5-30V 2.Charging range:50-10000mA 3.Discharging range:50-20000mA 4.Accuracy:±(0.2% of reading +0.2% of range) |
13 |
70V 5A 10A Battery Pack Aging Cabinet |
1.Voltage testing range:5-70V 2.Charging range:50-5000mA 3.Discharging range:50-10000mA 4.Accuracy:±(0.2% of reading +0.2% of range) |
14 |
100V 10A 20A Battery Pack Aging Cabinet |
1.Voltage testing range:10-100V 2.Charging range:50-10000mA 3.Discharging range:50-20000mA 4.Accuracy:±(0.2% of reading +0.2% of range) |
15 |
Automatic Inject Printer |
1.Printing speed:320m/min 2.Non-contact printing distance:2-15mm 3.Max number of printing dots:34 |
16 |
Battery Pack Comprehensive Tester |
1.Voltage testing range:10-100V 2.Charging range:50-10000mA 3.Discharging range:50-20000mA 4.Accuracy:±(0.2% of reading +0.2% of range) |
17 |
BMS Tester |
1.Overcharge/Overdischarge Protection Voltage:0.5-5V 2.Overcharge Protection Current:0-50A 3.Over-discharge Protection Current:0-120A |
18 |
256 Channel 5V 10A20a Battery Tester |
1.Current:0.05A-10a/20a 2.Voltage:0-5V 3.Channel:256 |
19 |
512 Channel 5V 2A 3A 5A 6A Battery Tester |
1.Current:0.05A-2A/3A/5A/6A 2.Voltage:0-5V 3.Channel:512 |
20 |
256 5v6a 10a /512 Channel 3a5V 5A 6A Lithium Battery Tester With Energy Regenerative Function |
1.Current:0.05A-5A/6A 2.Voltage:0-5V 3.Channel:256/512 4.Lithium Battery Tester with Energy Regenerative Function |
21 |
PVC Heat Shrink Wrapping Machine |
1.Film speed:50~70PCS/MIN 2.Film precision:±0.1MM |
Battery Analyzer Capacity Tester
AITOP 5v3a6a10a20a30a50a60a100a Capacity Tester 8ch 5v100a Battery Capacity Tester battery charge discharge testerOne-year warranty and lifetime maintenance are our guarantee of quality .
Our products including:
1.IR tester
2.Capacity tester for cylindrical &prismatic&polymer cells
3.BMS tester
4.Sorting machine for common use
5.Insulation paper sticker machine
6.Manual spot welding machine
7.Automatic spot welding machine
8.Battery pack integrated tester
9.Battery pack charging discharging aging machine
10.PVC shrinking machine
11. Nickel plate&PVC cutting machine
12.Laser welding machine
13.Wire bonding machine and etc.
All of our products are good price.
If you have any interesting,please feel free to contact with us
TOP Battery machine factory contact number
Shenzhen AITOP Intelligent Equipment Co., Ltd.
Email :sales(@)
wehcat/whatsapp /Phone Number:/+8618098919495
Performance characteristics
full charge and discharge curve of all channels, and can also be separated from the upper
computer and complete the operation through the control panel. Constant current constant voltage
charge, constant current discharge test, time sorting and other work.ETC
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
008618098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
008618098989643/+8618098919495
Email:sales(@)
