5V 10A/20A/30A/60A/100A 80 Channel Prismatic Cell Tester Capacity Grading Machine Charge Discharge Machine

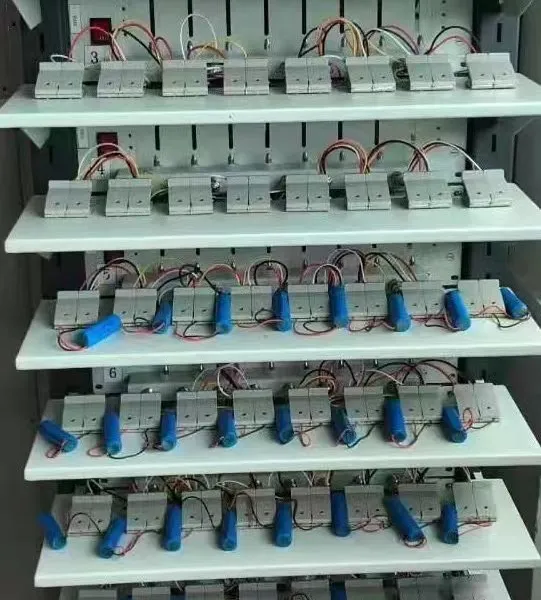

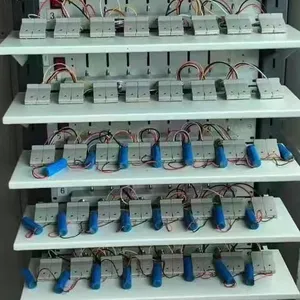

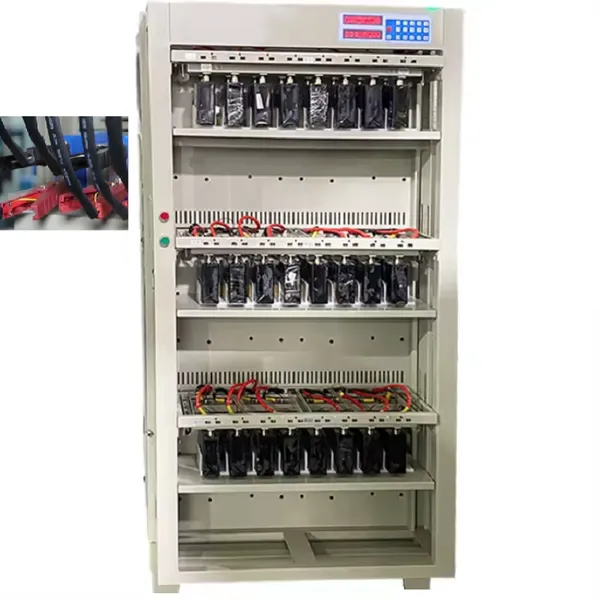

The equipment is mainly composed of computer, communication interface and battery detection cabinet. The battery detection cabinet is composed of a fixture and a board for placing the fixture, a constant current and constant voltage source, a storage control circuit, a sampling circuit, a single-chip microcomputer and a control panel.
Supporting Software Functions
A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;
B) Battery capacity indication of any section (up to 100 sections);
C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;
D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;
F) Set operator authority and operate in different levels;
Display charge discharge curve and cycle chart;
Cell Grading Machine Parameters
The equipment accuracy is 0.05%, and the data recording time is 1 second/time,
The fastest is 0.1 second/time, and the stability is high.
^The software has powerful functions and friendly man-machine interface.
^Four-wire system test interface to ensure high measurement accuracy.
^Modular design concept, easy to maintain.
Device model |
AITOP-5V30A |
Single channel |
150W |
communication method |
TCP/IP (Network port) |
||
Discharge voltage |
5V-0.8V |
Charging voltage |
DC0-5V |
data record |
100mS~65535 S |
||
Recharging current |
5Vseries:0.02A~30A |
Discharge current |
5Vseries:0.02A~30A |
||||
Current accuracy |
±(0.05%RD+0.05%FS) |
Voltage accuracy |
±(0.05%RD+0.05%FS) |
||||
Voltage resolution |
When the 1mV device detects or sets the voltage The smallest unit used |
||||||
Electric current resolution |
1mA device is detecting or setting voltage The smallest unit used |
||||||
Charging mode |
Constant current charging Constant voltage charging |
||||||
Discharge mode |
Constant current discharge Constant power discharge |
||||||
Charging cut-off |
Voltage,current,time, capacity,temperature |
Discharge cut-off |
Voltage,current,time,capacity,temperature |
||||
5V30A battery testing equipment, mainly used for: soft pack polymer battery Cylindrical battery
The star product in the 3C tester, with
High response, high precision, high sampling and other performance characteristics, simple structure and modular
A single test device is designed for 8 channels, each
Channel independent programming, and supports 254 working steps at most, and the time error of the working steps does not exceed 50ms.
Test mode support:
Constant current charging, constant voltage charging, constant current and constant voltage charging, constant power charging.
Constant current discharge, constant power discharge.
Input power |
AC220±10%/50Hz (Cabinet power supply mode: three-phase five-wire) |
|||
Main temperature |
According to a particular apparatus 1 channel per channel optional |
|||
input resistance |
≥10MQ |
|||
Current response time |
Current rise time ≤50mS |
Power accuracy |
±(0.05%RD+0.05%FS) |
|
Number of steps in a single cycle |
≤100step,With nested loop function |
|||
Circuit configuration |
Modular structure design, easy replacement and maintenance |
|||
VCELL,TCELL |
Optional auxiliary temperature, auxiliary voltage, single module 8 channels, can be arbitrarily mapped to each main channel Temperature range: -40~140° (Voltage range: 0~5V/0~20V) |
|||
performance |
index parameter |
|||
Input power |
AC220V ±10%/50Hz |
|||
|
Measuring range |
0.75~5V |
||
Output range |
10mV~5V |
|||
Precision |
±0.1%*FSR |
|||
Output accuracy |
±0.1%*FSR |
|||
|
Measuring range |
0~30A |
||
Output range |
50mA~30A |
|||
Measurement accuracy |
±0.1%*FSR |
|||
Output accuracy |
±0.1%*FSR |
|||
|
Measuring range |
0~1500W |
||
Output range |
0~1500W |
|||
Measurement accuracy |
±0.2%*FSR |
|||
Output accuracy |
±0.2%*FSR |
|||
|
Sampling rate |
1HZ:1 samples/sec |
||
Recording rate |
1HZ:1 point/sec |
|||
Recording conditions |
T I V temp |
|||
Full-scale current response time |
≤30ms |
|||
Time resolution |
1s |
|||
input resistance |
≥1MOhm |
|||
Support charge and discharge type |
Constant current charging, constant voltage charging, constant current and constant voltage charging, constant power charging, constant load discharging, constant power discharging, support channel paralleling |
|||
Number of test commands |
399 commands can be set, 65535 loops can be set, 5 levels of nested loops are supported |
|||
communication method |
Ethernet,100Mbps |
|||
safety protection |
hardware |
Add anti-reverse connection module to prevent battery reverse connection |
||
software |
1 Power-down data protection |
|||
Calibration frequency |
≥1year |
|||
Fan noise |
≤85db |
|||
Number of channels per chassis |
8aisles |
|||
Product Description
Battery Analyzer Capacity TesterTOP-C512 18650/26650/32650 Battery Capacity Tester for 5V3A/5A 512 Channel Li-Ion Battery Charging Discharging Testing Tester BK- 3512L
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
