ARMxy Pulse Counting Data Acquisition and Control ARM Cortex-A7 1 X-type IO board/2 Y-type IO boards RS485 DI/DO AI/AO

CPU

T113-i, 22nm, 2x ARM Cortex-A7, clock speed up to 1.2GHz

2x ARM Cortex-A7, clock speed up to 1.2GHz

1x HiFi4 DSP, clock speed up to 600MHz

1x XuanTie C906 RISC-V(64bit), clock speed up to 1008MHz

Encoder:

H.265 MP@L5.0 up to 4K@30fps

H.264 BP/MP/HP@L5.0 up to 4K@24fps

MPEG-4 SP/ASP L5.0 up to 1080p@60fps

MPEG-2/MPEG-1 MP/HL up to 1080p@60fps

JPEG/Xvid/Sorenson Spark up to 1080p@60fps

MJPEG up to 1080p@30fps

Decoder: JPEG/MJPEG up to 1080p@60fps

ROM

256Mbyte Nand Flash or 4/8GByte eMMC

RAM

128M/256M/512M/1GByte DDR3

ETH

RJ-45, 1~3, 1x1000M, 2x100M, ESD Level 3, EFT Level 3

USB

2x USB2.0 HOST(USB1, USB2), ESD Level 3

HDMI

1x HDMI2.0a, compatible with HDCP2.2, HDCP1.4 standard, supports up to 1080@60fps

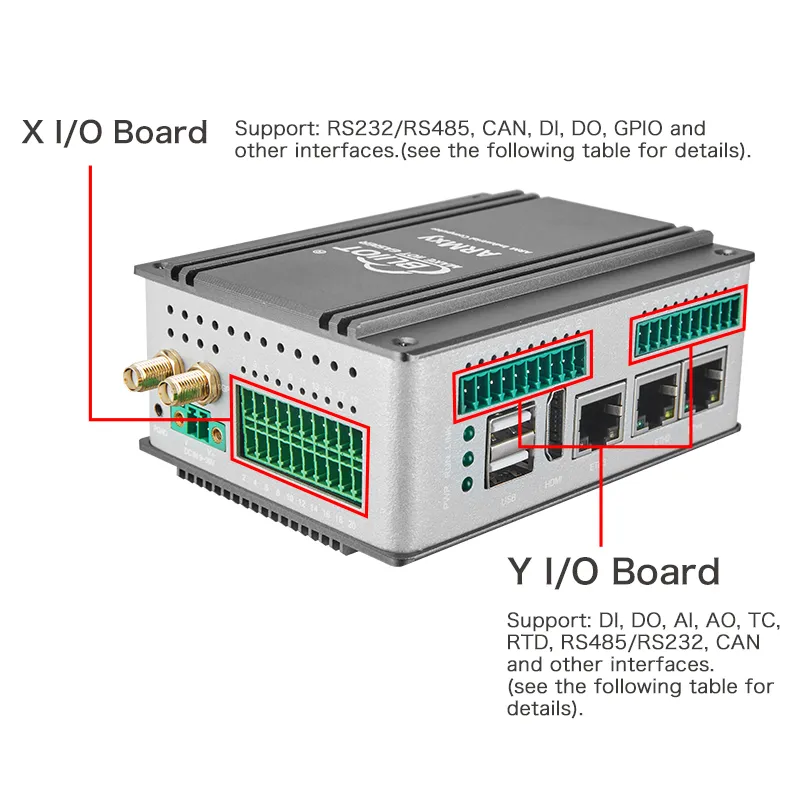

IO Slot

X series IO board slot: 1, X series IO board, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc;

Y series IO board slot: 2, Y series IO board, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc.

LED

1x power indicator light

2x user-programmable indicator light

Mini PCIE

1, Supports Bluetooth, WiFi, 4G module, etc.

SIM Slot

1 slot, NANO

Antenna

2, For 4G/WIFI/GPS

Debug

1x Micro USB debug port

SD Slot

1

Reset

1 reset button

Watchdog

Onboard independent hardware watchdog

Power

Rated DC 24V, supports wide voltage range of 9-36VDC

Equipped with reverse polarity protection and overcurrent protection

3-pin terminal block with screw terminals

Grounding

1-pin GND terminal

Installation

DIN35 rail mounting, wall mounting

Material

Aluminum alloy casing + stainless steel

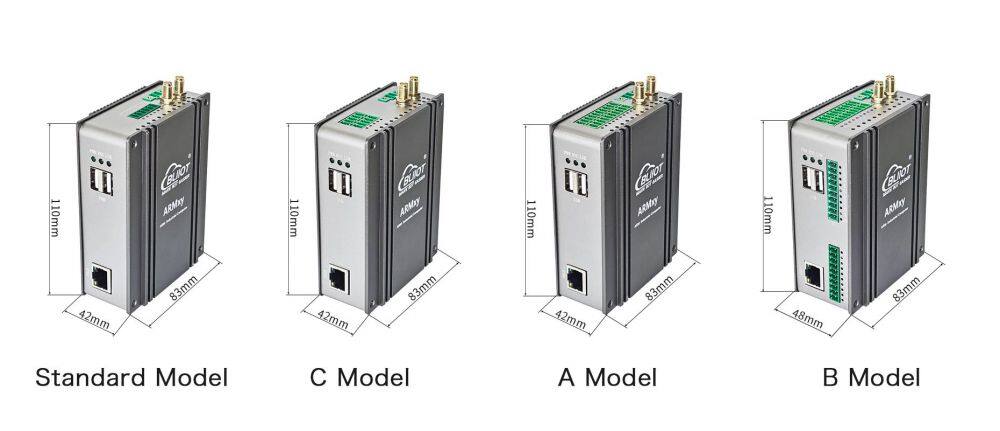

Dimension

110*83*42mm or 110*83*48mm

Kernel

Linux-5.4.61, Linux-RT-5.4.61

File System

Buildroot-2019.02, Ubuntu20.04

GUI development tool

Qt-5.12.5, Qt-5.11.3

Protocol Conversion Software

BLIoTLink, used for protocol conversion, such as Modbus,PLC, BACnet, IEC104, MQTT, OPC UA, support AWS IoTCore, Thingsboard, IgnitionSCADA, IoT, HUAWEI

IoT.

Remote Access Tool

BLRAT, enables remote device access for convenient remote maintenance.

Other Software

Node-Red, Python, Docker, C#, MySQL, SQLite

SOM330

T113-i

1.2GHz

2 x A7

256Mbyte

/

256MByte

 -40~85°C

SOM331

T113-i

1.2GHz

2 x A7

256Mbyte

/

128MByte

 -40~85°C

SOM332

T113-i

1.2GHz

2 x A7

/

4GByte

256MByte

 -40~85°C

SOM333

T113-i

1.2GHz

2 x A7

/

4GByte

512MByte

 -40~85°C

SOM334

T113-i

1.2GHz

2 x A7

/

8GByte

512MByte

 -40~85°C

SOM335

T113-i

1.2GHz

2 x A7

/

8GByte

1GByte

 -40~85°C

SOM336

T113-i

1.2GHz

2 x A7

/

4GByte

256Mbyte

 -20~70°C

X10

2

x

x

x

x

6PIN

X11

1

1

x

x

x

6PIN

X12

x

x

2

2

x

6PIN

X13

x

x

4

x

x

6PIN

X14

x

x

x

4

x

6PIN

X15

x

x

x

x

4

6PIN

X20

4

x

x

x

x

10PIN

X21

2

2

4

4

x

20PIN

X22

4

x

4

4

x

20PIN

X23

2

x

8

8

x

20PIN

X24

2

x

16

x

x

20PIN

X25

2

x

x

16

x

20PIN

X26

x

x

x

x

16

20PIN

X27

8

x

x

x

x

20PIN

Y01

4DI+4DO, NPN

Y41

4AO, 0/4~20mA

Y02

4DI+4DO, PNP

Y43

4AO, 0~5/10V

Y03

4DI+4DO, Relay

Y46

4AO, ±5V/±10V

Y11

8DI, NPN

Y51

2RTD, 3-Wire PT100

Y12

8DI, PNP

Y52

 2RTD, 3-Wire PT1000

Y21

8DO, PNP

Y53

2RTD, 4-Wire PT100

Y22

8DO, NPN

Y54

 2RTD, 4-Wire PT1000

Y24

4DO, Relay

Y56

Resistance measurement

Y31

4AI, single-ended, 0/4~20mA

Y57

Voltage measurement

Y33

4AI, single-ended, 0~5/10V

Y58

4TC

Y34

4AI, differential, 0~5/10V

Y91

4 high-speed counting module

Y36

4AI, differential, ±5V/±10V

Y61

4 RS485 or RS232

Y62

1CAN+3RS485 or RS232

ESD immunity

Power ports

Signal ports

GB/T 17626.2-2018 / IEC61000-4-2:2008

Level 3

Air ±8KV, Contact±6KV

EFT immunity

Power ports

Signal ports

GB/T 17626.4-2018 / IEC61000-4-4:2012

Level 3

Surge (lightning) immunity

Power ports

Signal ports

GB/T 17626.5-2019 / IEC61000-4-5:2014

Level 3

Conducted susceptibility to RF field induced disturbances

Power ports

Signal ports

GB/T 17626.6-2017 / IEC61000-4-6:2013

Level 3

10V/150kHz~80MHz

Conducted interference

Power ports

Signal ports

GB/T 6113.201-2018 / CISPR 16-2-1:2017

150kHz~30MHz

Cold start and operation at low temperatures

GBT 2423.1-2008

Test environment temperature -40°C

Hot start and operation at high temperatures

GBT 2423.2-2008

Test environment temperature 60°C

Constant humidity and heat

GB/T 2423.3-2016

Test environment humidity +40°C/95%RH

High-Low temperature shock

GB/T 2423.22-2012

Startup after rapid switching between -40°C and 60°C for 30 seconds (no condensation).

Temperature change

GB/T 2423.22-2012

Temperature cycling test from -40°C to 60°C under powered test conditions.

Sinusoidal vibration

GB/T 2423.10-2019

Vibration testing with and without packaging while the product is in the powered-off state.

Free fall

ISTA 2A-2011GB/T 2423.7-2018GB/T 6587-2012

Drop test with packaging while the product is powered off.
