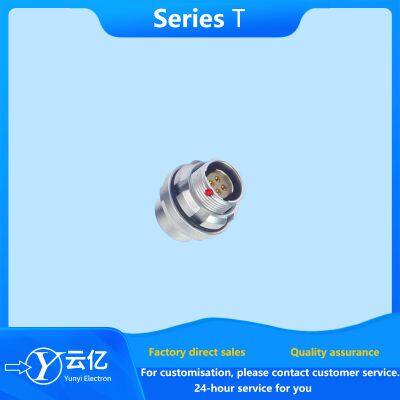

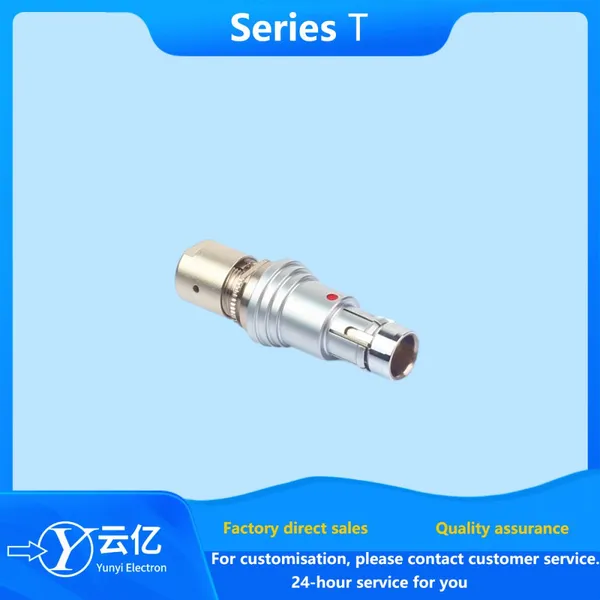

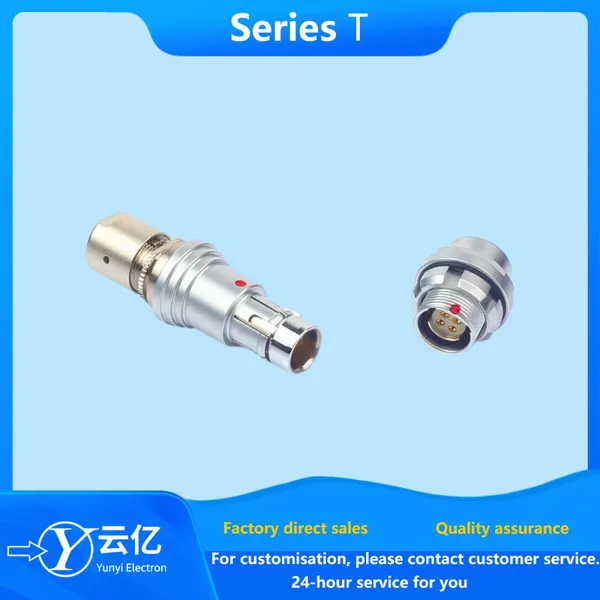

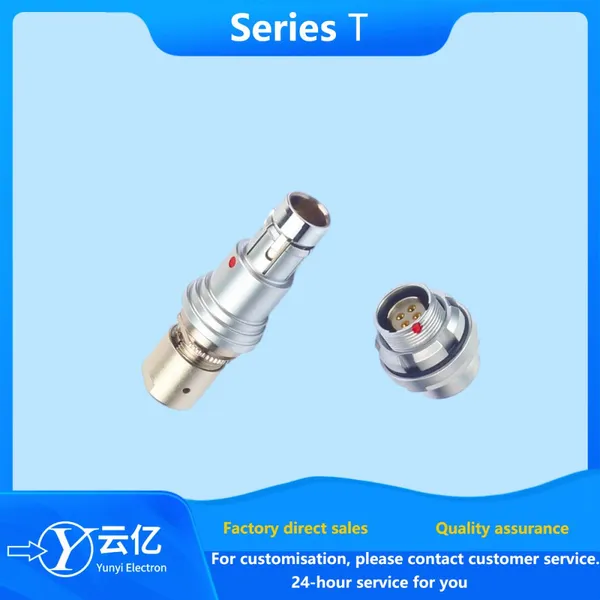

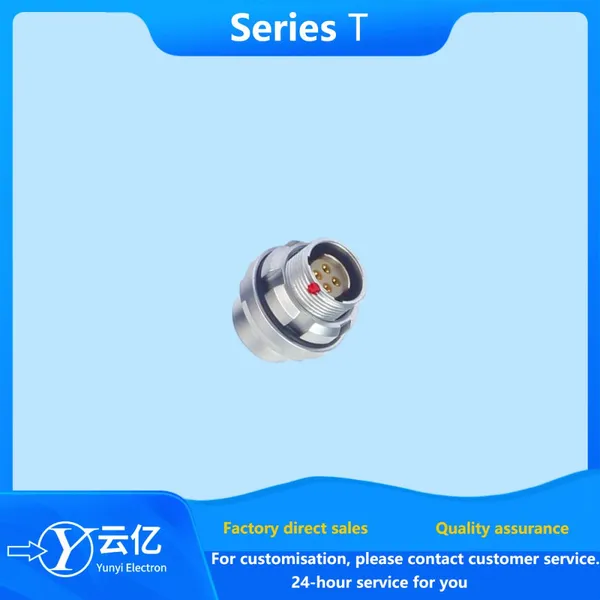

Help CenterT Series Aviation Plug Socket TLG.2A.102T.304. CLAD52 Push-pull Self-locking Connector ZYA.2A.102T.304. CLLNP52
Related Products
-
Push-pull Self-locking Connector T Series 8pin Aviation Plug Socket WeldingUS$ 135 - 168MOQ: 1 Set -
Push-pull Self-locking Connector TGG.2B.316. CLAD52Z Round Medical Plug ZGG.2B.316. CLLUS$ 135 - 168MOQ: 1 Set
-
Plug-in Push-pull Self-locking Connector 0B 2-core 3-core 4-core 5-core 6-core 7-core 9-core Aviation Plug SocketUS$ 135 - 168MOQ: 1 Set
-
Push-pull Self-locking Connector Floating Socket Welding Type-C Data CableUS$ 135 - 168MOQ: 1 Set
-
Compatible With Major Manufacturers Push-pull Self-locking Connector TLN Plug Welding Audio and Video Power CableUS$ 135 - 168MOQ: 1 Set
T series product content
The T series connector is a multi-key multi-positioning structure push-pull self-locking connector derived from the B series positioning pin structure and the F series semi-circular positioning structure. The connector is mainly used for low-frequency signal transmission in electronic equipment. It has small size, convenient operation, good shielding effect, good sealing, positioning pin and semi-circular chip positioning. It has the characteristics of preventing accidental insertion, strong shell, anti-electromagnetic interference, good environmental resistance, long service life, etc. It is widely used in medical machinery, communication systems, computers, small communications and other equipment.
T-series connector performance
1. Mechanical life: 5000 times
2. Vibration: frequency 10-2000Hz, acceleration 147m/s°, ≤1um instantaneous break
3. Strike: Acceleration 490m/2, ≤1um instantaneous break
4. Operating temperature: -55°C~+145°C
5. Relative humidity: up to 95% at 40°C
6. Working pressure: 4.39kPa ~ 101.33kpa;
7. Sealing: socket: pressure difference 1.01×105Pa, 1min no bubble leakage (0.2×105Pa at the flange): head seat plug-in: 1.5m water depth, 24h non-seepage (the tail of the plug needs to be sealed and protected); salt spray: 96 hours in 5% NaCl fog;
Insulation resistance: 5000MQ (normal)
Quick plugging: The push-pull self-locking connector can be quickly plugged and unplugged through simple push-pull actions without the use of tools, which greatly improves the efficiency of installation and disassembly.
Automatic locking: When pushing and retracting, the push-pull self-locking connector can automatically lock, avoiding the use of traditional mechanical locking pins and improving the stability and reliability of the connection.
Compact and flexible: This connector is compactly designed and suitable for applications with limited space and high-density installation, such as medical equipment, industrial automation and other fields.
Multi-core and diverse: support signal, data and power transmission, provide a variety of pin distribution and anti-plug-in coding to meet the needs of different applications.
Protection level: It has a waterproof and dustproof level of IP65-68, providing 360° full EMC protection, which can absorb vibration and impact energy.
